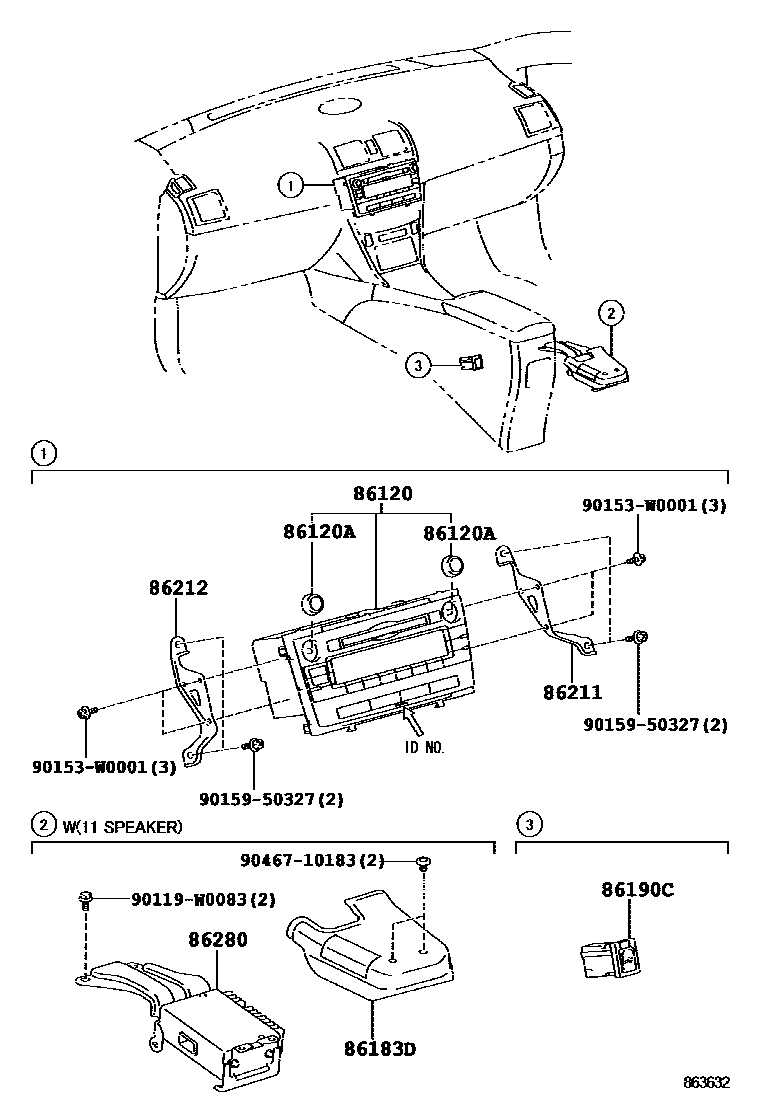

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1RECEIVER & AMPLIFIER 0002 1RECEIVER & AMPLIFIER 0003 1RECEIVER & AMPLIFIER 0004 1CONDENSER 0005 1CONDENSER

86120RECEIVER ASSY, RADIO

main86120-05140iADT27#,ZRT27#..E,F,N200811-201006

PANASONIC,ID=W53827

main86120-05141iADT270..LHD..F;ZRT272..RHD..HTWC201006-201111

PANASONIC,ID=W53852

main86120-05150iADT271,ZRT272..G,V200811-201006

PANASONIC,ID=W53828

main86120-05150iADT271,ZRT272..G,V200811-201006

PANASONIC,ID=W53828,AUDIO-RADIO/CD&BLUETOOTH 6SPEAKER

main86120-05151iADT271,ZRT272..G,V201006-201111

PANASONIC,ID=W53853

main86120-05151iADT271,ZRT272..G,V201006-201111

PANASONIC,ID=W53853,AUDIO-RADIO/CD&BLUETOOTH 6SPEAKER

main86120-05180iADT27#,ZRT27#..E..(DCR,HTWVM)201006-201111

PANASONIC,ID=W53855

main86120-05180iADT27#,ZRT27#..E..(DCR,HTWVM)201006-201111

PANASONIC,ID=W53855,AUDIO-RADIO/CD&6SPEAKER(TITANIUM)

main86120-05200iWWT27#,ZRT27#..E..(DCR,HTWVM)201505

PANASONIC,AUDIO-FM & CD & 6SPEAKER

main86120-05200iWWT270,ZRT270,271..N201505

PANASONIC

main86120-05200iWWT270,ZRT270,271..N201505

PANASONIC,AUDIO-FM & CD & 6SPEAKER&EMV & NAVIGATION SYSTEM-WITHOUT

main86120-05200iWWT270,ZRT270,271..N201505

PANASONIC,AUDIO-6PEAKER & WITH(AUDIO LESS COVER)

main86120-05200iWWT270,ZRT270,271..N201505

PANASONIC,AUDIO-REAR SPEAKER LESS&WITH(AUDIO LESS COVER

main86120-05210iADT270,ZRT270,271..N201111-201505

PANASONIC,ID=53871

main86120-05210iADT270,ZRT270,271..N201111-201505

PANASONIC,ID=53871,AUDIO-RADIO & CD & 6SPEAKER

main86120-05210iADT271..6FC201111-201505

PANASONIC,ID=53871,SOL GRADE&AUDIO-RADIO & CD & 6SPEAKER

86120AKNOB, RADIO RECEIVER SWITCH

main90011-25156iADT27#,ZRT27#200811-201006

main90011-25200iADT270,ZRT270,271..N201111-201505

AUDIO-CD & BLUETOOTH & 6SPEAKER

main90011-25200iADT270,ZRT270,271..N201111-201505

SOL GRADE&AUDIO-RADIO & CD & 6SPEAKER

main90011-25200iADT270,ZRT270,271..N201111-201505

SOL GRADE&AUDIO-RADIO & CD & BLUETOOTH & 6SPEAKER

main90011-25200iADT270,ZRT270,271..N201111-201505

AUDIO-RADIO & CD & 6SPEAKER

main90011-25200iADT270,ZRT270,271..N201111-201505

AUDIO-RADIO & CD & BLUETOOTH & 6SPEAKER

main90011-25261iWWT27#,ZRT27#..E..(DCR,HTWVM)201505

AUDIO-6PEAKER & WITH(AUDIO LESS COVER)

main90011-25261iWWT270,ZRT270,271..N201505

AUDIO-FM & CD & 6SPEAKER&EMV & NAVIGATION SYSTEM-WITHOUT

main90011-25261iWWT270,ZRT270,271..N201505

AUDIO-FM(50KHZ STEP) & CD & *BT & 6SPEAKER

main90011-25261iWWT270,ZRT270,271..N201505

AUDIO-FM(50KHZ STEP) & CD & *BT & 6SPEAKER&EMV & NAVIGATION SYSTEM-WITHOUT

main90011-25261iWWT270,ZRT270,271..N201505

AUDIO-FM(100KHZ STEP) & CD & *BT & 6SPEAKER

main90011-25261iWWT270,ZRT270,271..N201505

AUDIO-FM(100KHZ STEP) & CD & *BT & 6SPEAKER&EMV & NAVIGATION SYSTEM-WITHOUT

main90011-25261iWWT270,ZRT270,271..N201505

AUDIO-REAR SPEAKER LESS&WITH(AUDIO LESS COVER

main90011-25261iZRT272..HTWC201505

AUDIO-FM & CD & 6SPEAKER

86183DCOVER, AUDIO AMPLIFIER

86190CADAPTER ASSY, STEREO JACK, NO.1

main86190-02070iADT27#,ZRT27#201111-201301

main86190-05010iADT270..LHD..F;ZRT272..RHD..HTWC200811-201111

main86190-0D030iADT27#,ZRT27#201302-201505

86211BRACKET, RADIO, NO.1

main86211-05080iADT270..LHD..F;ZRT272..RHD..HTWC200811-201111

main86211-05120iWWT27#,ZRT27#201505

86212BRACKET, RADIO, NO.2

main86212-05080iADT270..LHD..F;ZRT272..RHD..HTWC200811-201111

main86212-05120iWWT27#,ZRT27#201505

86280AMPLIFIER ASSY, STEREO COMPONENT

main86280-05010

90119W0083

main90119-W0083

90153W0001

main90153-W0001

9015950327

main90159-50327

9046710183

main90467-10183

11 parts on this diagram · 5 diagrams in section
