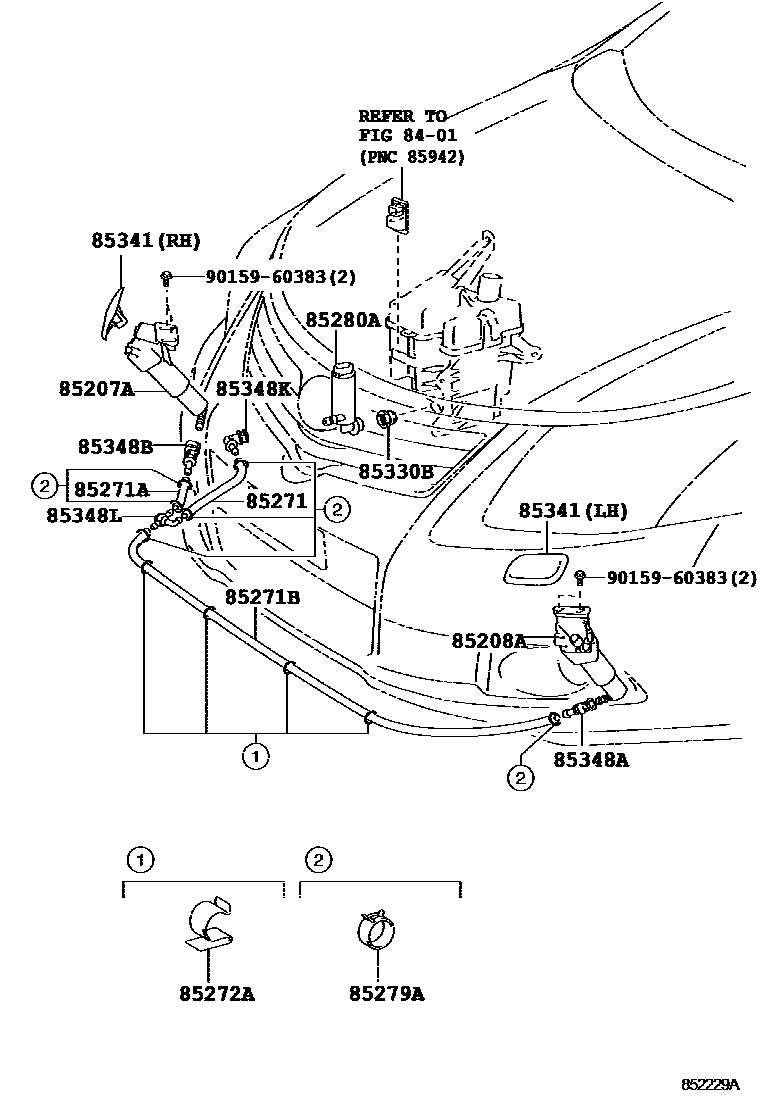

HEADLAMP CLEANER
8401
85207AACTUATOR SUB-ASSY, HEADLAMP WASHER, RH
85208AACTUATOR SUB-ASSY, HEADLAMP WASHER, LH
85271HOSE, HEADLAMP CLEANER, NO.1
main85271-0W050
main85271-0W060
main85277-05100
main85275-05100
main85276-05100
main85276-05110
main85275-05110
main85277-05110
85271AHOSE, HEADLAMP CLEANER, NO.2
85271BHOSE, HEADLAMP CLEANER, NO.3
85272ACLAMP, HEADLAMP CLEANER, NO.1
85279AJOINT, HEADLAMP CLEANER HOSE
85280AMOTOR AND PUMP ASSY, HEADLAMP CLEANER
85330BBUSH, HEADLAMP CLEANER WASHER JAR
85341NOZZLE, HEADLAMP CLEANER WASHER
main85044-05901
main85354-05901
main85353-05902
main85354-05902
main85354-05903
main85353-05903
main85045-05904
main85353-05906
85348AJOINT, HEADLAMP CLEANER HOSE, NO.1
85348BJOINT, HEADLAMP CLEANER HOSE, NO.2
85348KJOINT, HEADLAMP CLEANER ELBOW, NO.1
85348LJOINT, HEADLAMP CLEANER ELBOW, NO.2
9015960383
main90159-60383
16 parts on this diagram · 2 diagrams in section
