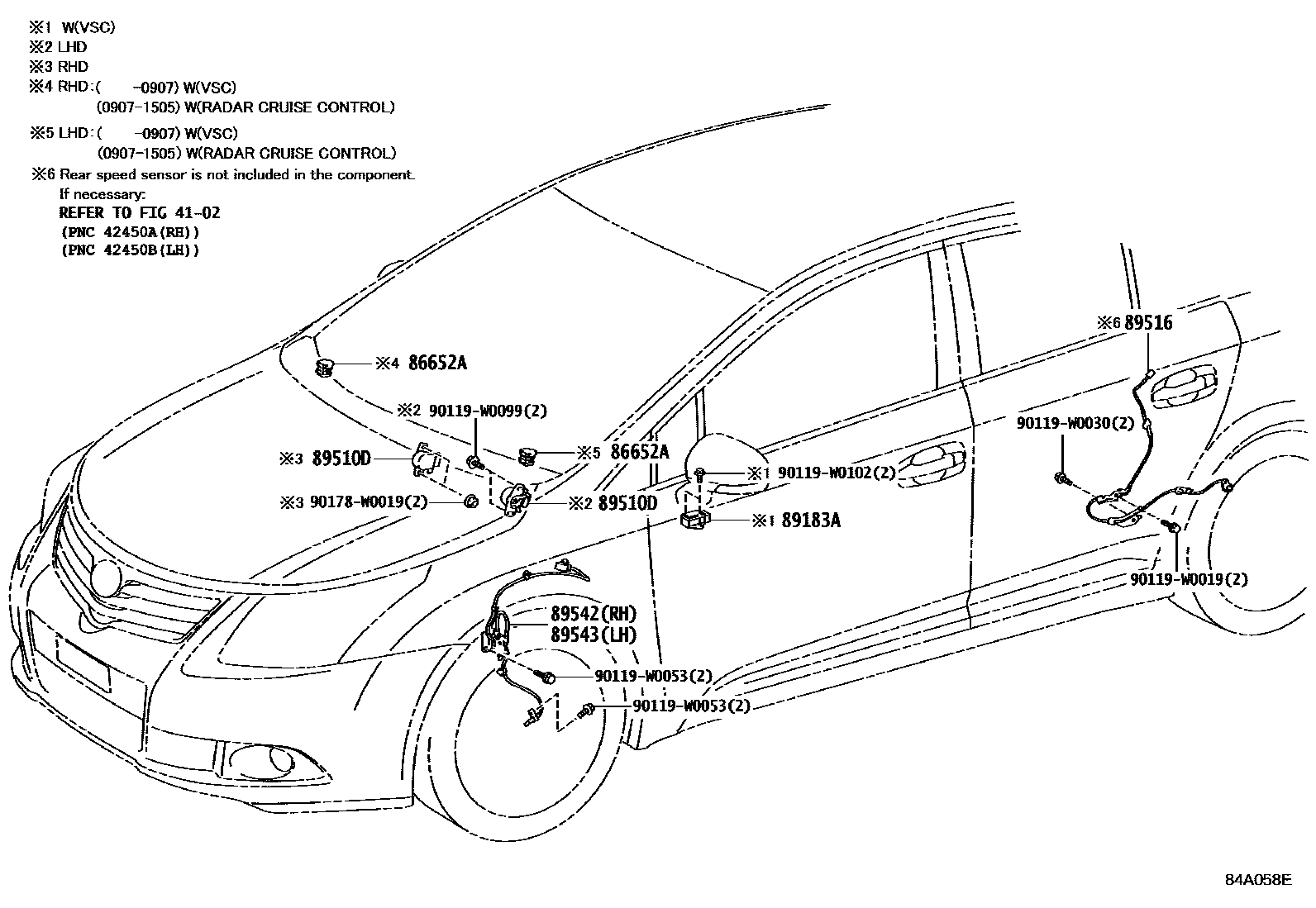

ABS & VSC

4102

86652ABUZZER ASSY, SKID CONTROL

main86652-50010iZRT270..E;ADT27#,ZRT271,272200811-200907

WITH(VSC)

89183ASENSOR, YAWRATE

main89183-05030iADT270..LHD..F;ZRT272..RHD..HTWC200811-201301

main89183-05030iZRT271;ADT270..RHD;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC);ADT271,ZRT270,272..(E,G,V)..(DCR,DCRL,HTWVM)200811-201111

WITH(VSC)

main89183-0F010iADT27#,ZRT27#201302-201505

89510DSENSOR ASSY, BRAKE PEDAL STROKE

main89510-20041iADT270..LHD..F200811-201505

main89510-20071iWWT27#,ZRT270,271..RHD..6F200811-201505

89516WIRE, SKID CONTROL SENSOR

main89516-02090iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

RH

main89516-02100iADT27#,ZRT27#200811-201505

LH

89542SENSOR, SPEED, FRONT RH

main89542-02061iADT27#,ZRT27#200811-201505

89543SENSOR, SPEED, FRONT LH

main89543-02061iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

90119W0019

main90119-W0019

90119W0030

main90119-W0030

90119W0053

main90119-W0053

90119W0099

main90119-W0099

90119W0102

main90119-W0102

90178W0019

main90178-W0019

13 parts on this diagram · 1 diagram in section
