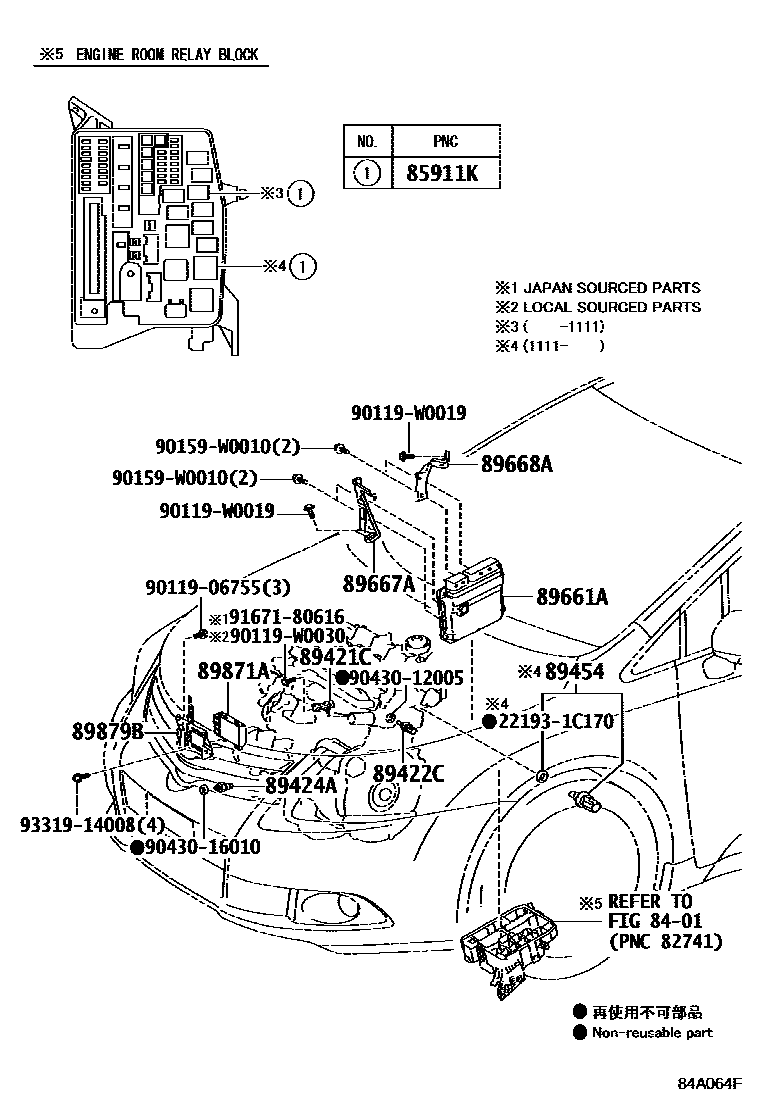

ELECTRONIC CONTROLED DIESEL (ECD)

0001 1 0002 1

8401

85911KRELAY, HEATER(FOR AIR FUEL RATIO SENSOR)

main90080-87019iADT271200811-201111

ENGINE-1ADFTV(DPF)

sub90080-87021

main90080-87030iADT27#201111-201505

89421CSENSOR, TURBO PRESSURE (FOR DIESEL TURBO)

main89421-20200iADT270..LHD..F200811-201505

main89421-WA010iWWT27#201505-201804

89422CSENSOR, DIESEL ENGINE WATER TEMPERATURE

main89422-33030iADT270..LHD..F200811-201505

main89422-WA010iWWT27#201505-201804

89424ASENSOR, INLET AIR TEMPERATURE (FOR DIESEL TURBO)

main89424-60010iADT270..LHD..F200811-201505

main89424-WA010iWWT27#201505-201804

89454SENSOR, FUEL TEMPERATURE

main89454-60020iADT27#201111-201505

main89454-WA010iWWT27#201505-201804

89661ACOMPUTER, ENGINE CONTROL

main89661-05D00iADT271..6F..DCRL200811-200905

sub89661-05D01

main89661-05D01iADT271..6F..DCRL200906-201003

sub89661-05D02

main89661-05D02iADT271..6F..DCRL201004-201111

sub89661-05K50

main89661-05D10iADT271..6FC200902-200905

sub89661-05D11

main89661-05D11iADT271..6FC200906-201003

sub89661-05D12

main89661-05D12iADT271..6FC201004-201111

sub89661-05K30

main89661-05D30iADT270..LHD..F200811-201111

main89661-05D50iADT271..DCR200811-200905

sub89661-05D51

main89661-05D51iADT271..DCR200906-201003

sub89661-05D52

main89661-05D52iADT271..DCR201004-201111

sub89661-05K60

main89661-05F20iADT270201111-201401

sub89661-05F21

main89661-05F21iADT270201402-201409

main89661-05F50iWWT270201505-201605

main89661-05F60iWWT271201505-201605

main89661-05G30iWWT270201605-201711

sub89661-05G31

main89661-05G31iWWT270201712

BOSCH

main89661-05G40iWWT271201605-201711

sub89661-05G41

main89661-05G41iWWT271201712

BOSCH

main89661-05K30iADT271..6FC201111-201302

main89661-05K50iADT271..6F..DCRL201111-201302

main89661-05K60iADT271..DCR201111-201302

main89661-05L50iADT271..6FC201302-201401

main89661-05L51iADT271..6FC201402-201505

main89661-05L70iADT271..6F..DCRL201302-201401

sub89661-05L71

main89661-05L71iADT271..6F..DCRL201402-201505

main89661-05L80iADT271..DCR201302-201401

sub89661-05L81

main89661-05L81iADT271..DCR201402-201505

main89661-05N50iADT270201409-201505

89667ABRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-02180iADT270..LHD..F200811-201505

main89667-0F030iWWT27#201505

89668ABRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-02170iADT270..LHD..F200811-201505

main89668-0F050iWWT27#201505

89871ADRIVER, INJECTOR

main89871-20080iADT270..LHD..F200811-201505

89879BBRACKET, INJECTOR DRIVER

main89879-20180iADT27#200811-201010

main89879-20190iADT270..LHD..F201011-201505

221931C170RING, O(FOR LEVER CONNECTING PIN)

main22193-1C170

9011906755

main90119-06755

90119W0019

main90119-W0019

90119W0030

main90119-W0030

90159W0010

main90159-W0010

9043012005

main90430-12005

9043016010

main90430-16010

9167180616

main91671-80616

9331914008

main93319-14008

20 parts on this diagram · 2 diagrams in section
