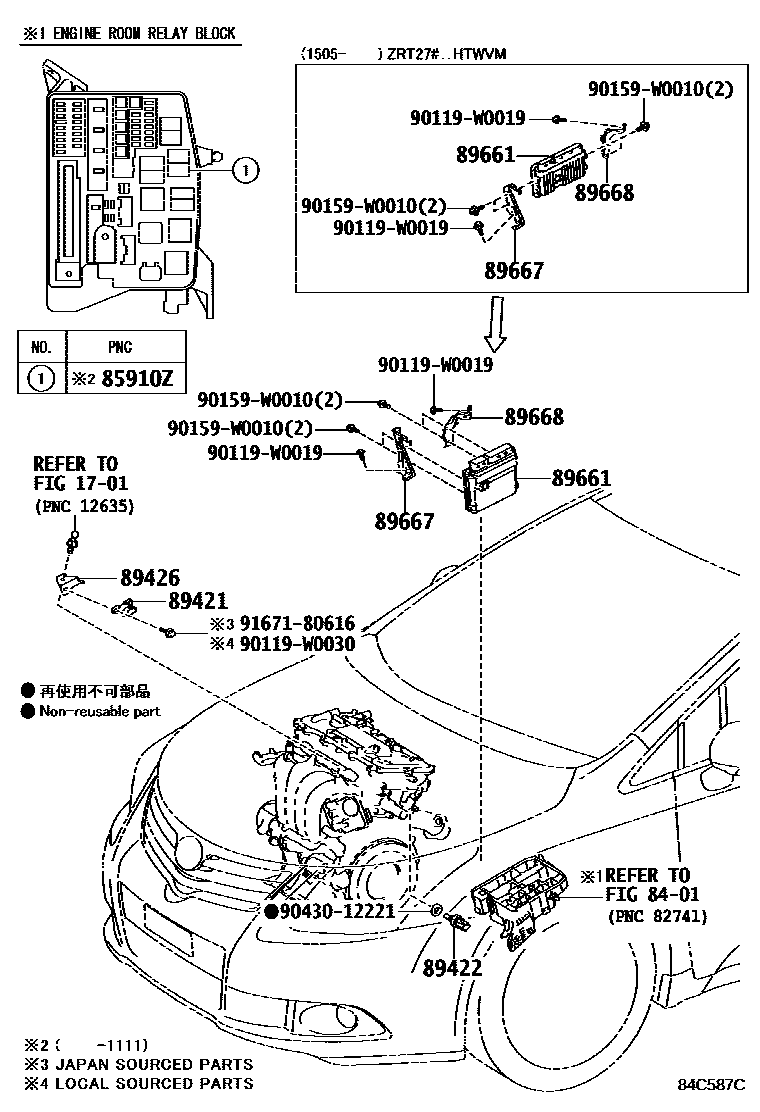

ELECTRONIC FUEL INJECTION SYSTEM

1701

8401

85910ZRELAY, INJECTION (FOR EFI)

main90080-87019iZRT27#..HTWVM200811-201111

sub90080-87021

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-26030iZRT27#..HTWVM200811-201505

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iZRT272..RHD..HTWC200811-201505

89426BRACKET, VACUUM SENSOR

main89426-28080iZRT27#..HTWVM200811-201505

89661COMPUTER, ENGINE CONTROL

main89661-05B90iZRT270201006-201111

main89661-05C00iZRT271..6F201006-201111

main89661-05C40iZRT271..CVT201006-201010

sub89661-05C41

main89661-05C41iZRT271..CVT201011-201111

main89661-05C60iZRT272..6F..HTWVM201006-201111

main89661-05D60iZRT270200811-200906

sub89661-05D61

main89661-05D61iZRT270200906-201006

main89661-05D80iZRT271..6F200811-200905

sub89661-05D81

main89661-05D81iZRT271..6F200906-201006

main89661-05E00iZRT271..CVT200811-200906

sub89661-05E01

main89661-05E01iZRT271..CVT200906-201006

sub89661-05E02

main89661-05E20iZRT272..6F..HTWVM200811-200905

sub89661-05E21

main89661-05E21iZRT272..6F..HTWVM200906-201006

main89661-05E40iZRT272..CVT200811-200905

sub89661-05E41

main89661-05E41iZRT272..CVT200906-201006

sub89661-05E42

main89661-05E70iZRT272..LHD..6F..HTWC200811-201111

main89661-05E90iZRT272..LHD..4FC200811-201111

main89661-05F10iZRT272..CVT201006-201111

main89661-05F30iZRT270201607

main89661-05F40iZRT271..6F201607

main89661-05G10iZRT271..CVT201607

main89661-05G20iZRT272..HTWVM201606

main89661-05G50iZRT270201111-201302

main89661-05G80iZRT271..6F201111-201302

main89661-05J10iZRT271..CVT201111-201302

main89661-05J40iZRT272..6F201111-201302

main89661-05J70iZRT272..CVT201111-201302

sub89661-05J71

main89661-05K10iZRT272..HTWC201111-201409

main89661-05L00iZRT270201302-201401

sub89661-05L90

main89661-05L10iZRT271..6F201302-201401

sub89661-05M10

main89661-05L20iZRT271..CVT201302-201401

sub89661-05M30

main89661-05L30iZRT272..6F201302-201401

sub89661-05M40

main89661-05L40iZRT272..CVT201302-201401

sub89661-05M50

main89661-05L90iZRT270201402-201505

main89661-05M10iZRT271..6F201402-201505

main89661-05M30iZRT271..CVT201402-201409

main89661-05M40iZRT272..6F201402-201505

main89661-05M50iZRT272..CVT201402-201409

sub89661-05M51

main89661-05M70iZRT270201505-201607

main89661-05M80iZRT271..6F201505-201607

main89661-05N60iZRT271..CVT201409-201505

main89661-05N70iZRT272..CVT201409-201505

main89661-05P00iZRT272..HTWC201409-201505

main89661-05P20iZRT271..CVT201505-201607

main89661-05P30iZRT272..HTWVM201505-201605

sub89661-05G20

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-02180iZRT272..RHD..HTWC200811-201505

main89667-02300iZRT27#..HTWVM201505

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-02140iZRT272..RHD..HTWC200811-201505

main89668-02170iZRT271,272..CVT200811-201505

main89668-02280iZRT27#..HTWVM201505

90119W0019

main90119-W0019

90119W0030

main90119-W0030

90159W0010

main90159-W0010

9043012221

main90430-12221

9167180616

main91671-80616

14 parts on this diagram · 1 diagram in section
