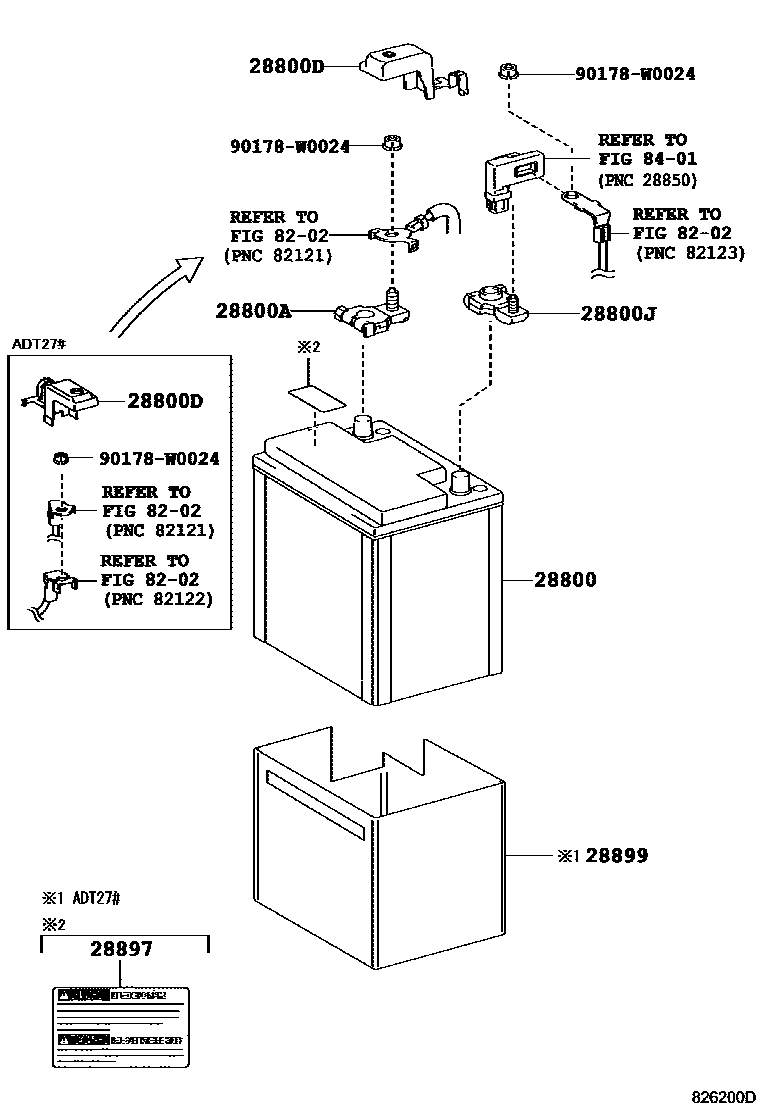

BATTERY & BATTERY CABLE

0001 1 0002 1

28800BATTERY

main28800-0D350i1ZRFAE,2ZRFAE,3ZRFAE..ZRT27#200811-201801

LN2

main28800-0D351i1ZRFAE,2ZRFAE,3ZRFAE..ZRT27#201802

LN2

main28800-0G050i2AD#..ADT271;1ADFTV..ADT270..RHD;1ADFTV..ADT270..LHD..(E,N)200811-201505

LN3

main28800-0R090i1WW,2WW..WWT27#201505

LN4

main28800-0T010i3ZRFE..ZRT272200811-201801

LN2

main28800-0T011i3ZRFE..ZRT272201802

LN2

28800ATERMINAL, BATTERY POSITIVE

main90982-05053i1WW,2WW..WWT27#201505

main90982-05054i3ZRFE..ZRT272..RHD200811-201505

main90982-05056i1ADFTV,2AD#..ADT27#200811-201505

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-12490i1ZRFAE,2ZRFAE,3ZR#..ZRT27#200811-201505

main82821-12620i2AD#..ADT271;1ADFTV..ADT270..RHD;1ADFTV..ADT270..LHD..(E,N)200811-201505

28800JTERMINAL, BATTERY NEGATIVE

main90982-06070i3ZRFE..ZRT272..RHD;1ADFTV..ADT270..LHD..F200811-201505

28897PLATE, BATTERY CAUTION

main28897-31040

28899INSULATOR, BATTERY

main28899-26080i1ADFTV..ADT270..LHD..F200811-201505

main28899-26100i1WW,2WW..WWT27#201505

8202

8401

90178W0024

main90178-W0024

9 parts on this diagram · 2 diagrams in section
