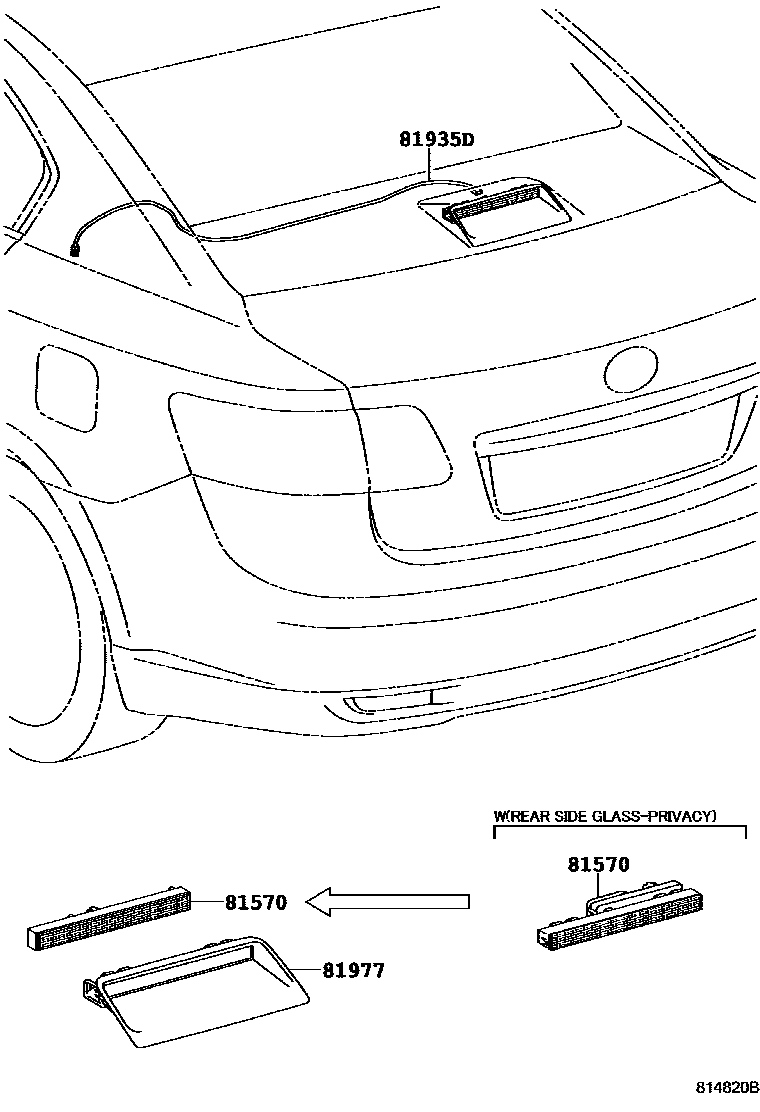

CENTER STOP LAMP

0001 1 0002 1

81570LAMP ASSY, CENTER STOP

main81570-05100iZRT272..HTWC;WWT270,ZRT270,271..SED..N201505

REAR SIDE GLASS-GREEN

main81570-05100iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

main81570-05110iWWT27#,ZRT27#..WG200811-201505

main81570-05120iWWT27#,ZRT27#..SED..(E,G)..(DCR,HTWVM)201505

REAR SIDE GLASS-PRIVACY

81935DCORD ASSY, CENTER STOP LAMP

main81935-05040iWWT27#,ZRT27#..SED201308-201505

main81935-20060iADT270..LHD..F;ZRT272..RHD..HTWC200811-201308

main81935-20070iADT27#,ZRT27#..WG200811-201505

81977COVER, CENTER STOP LAMP

main81977-05050-C0iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

BLACK,TRIM2#

main81977-05050-C0iADT270,ZRT270,271..SED..N201111-201505

BLACK,TRIM1#,2#,4#

main81977-05050-C1iWWT27#,ZRT27#..SED..(E,G)201505

EU BLACK,TRIM2#

main81977-05050-C1iWWT27#,ZRT27#..SED..(E,G)201505

EU BLACK,TRIM1#,2#,4#

main81977-05050-E0iADT270..LHD..F;ZRT272..RHD..HTWC200811-201111

GREGE,TRIM4#

3 parts on this diagram · 2 diagrams in section
