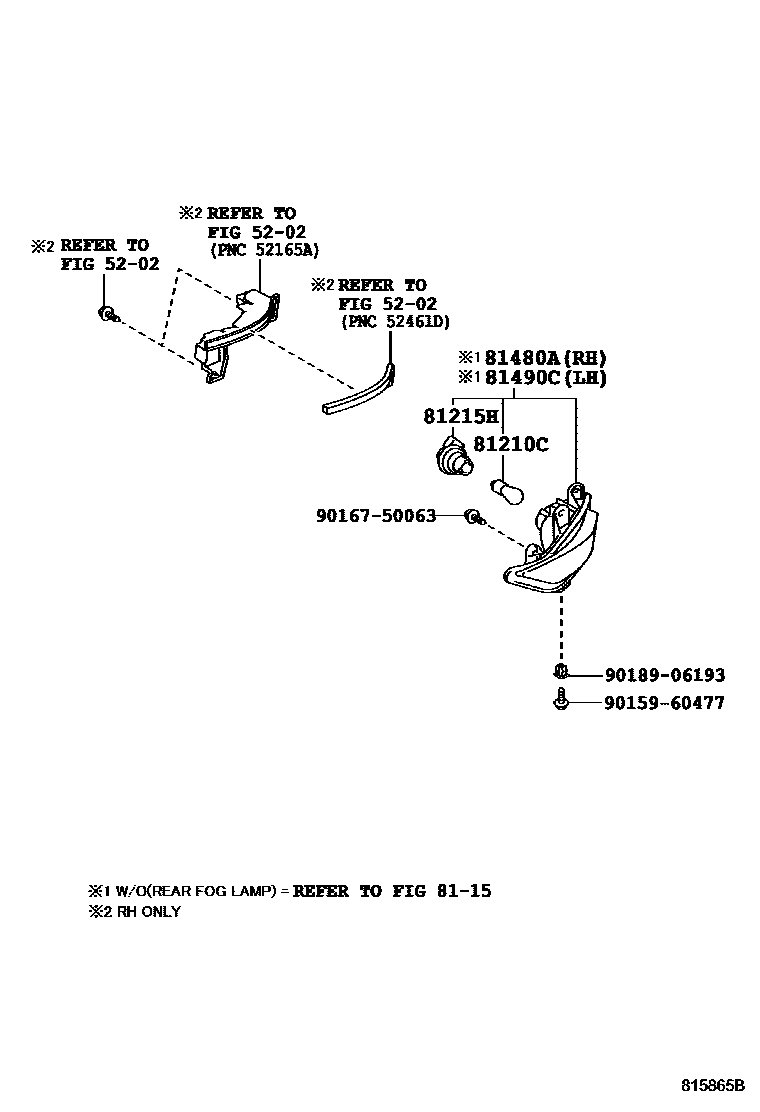

REAR FOG LAMP

5202

8115

81210CBULB, REAR FOG LAMP

main90981-WC003iADT27#,ZRT27#..SED201111

12V 21W

81215HSOCKET, REAR FOG LAMP

main90069-81092iADT27#,ZRT27#..SED201111

81480ALAMP ASSY, REAR FOG, RH

main81480-05010iADT27#,ZRT27#..RHD..SED201111-201505

81490CLAMP ASSY, REAR FOG, LH

main81490-05010iADT27#,ZRT27#..LHD..SED201111-201505

9015960477

main90159-60477

9016750063

main90167-50063

9018906193

main90189-06193

9 parts on this diagram · 1 diagram in section
