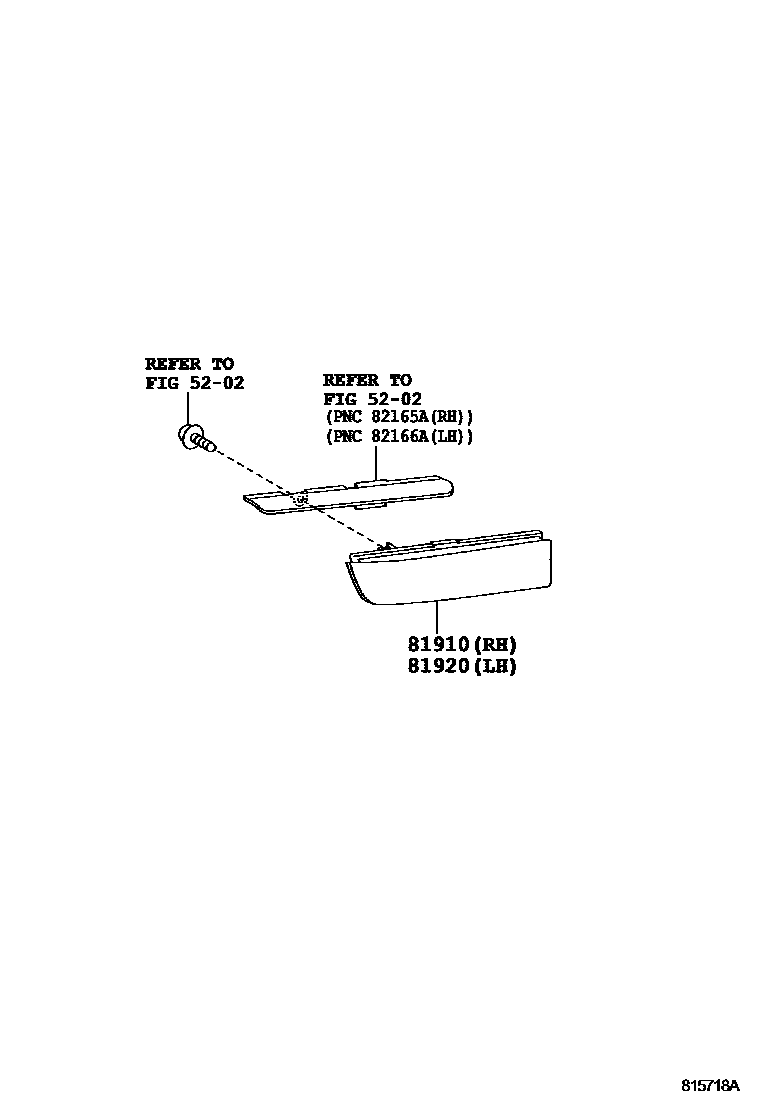

REFLEX REFLECTOR

0001 1 0003 1 0004 1

5202REAR BUMPER & BUMPER STAY

→ Go to FIG 52-02

81910REFLECTOR ASSY, REFLEX, RH

main81480-05020iADT27#,ZRT27#..LHD..SED201111-201505

main81910-05010iWWT27#,ZRT27#201505

main81910-13021iADT27#,ZRT27#200811-201001

main81910-13022iADT270..LHD..F;ZRT272..RHD..HTWC201002-201505

81920REFLECTOR ASSY, REFLEX, LH

main81490-05020iADT27#,ZRT27#..RHD..SED201111-201505

main81920-05010iWWT27#,ZRT27#201505

main81920-13021iADT27#,ZRT27#200811-201001

main81920-13022iADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)201002-201505

3 parts on this diagram · 3 diagrams in section
