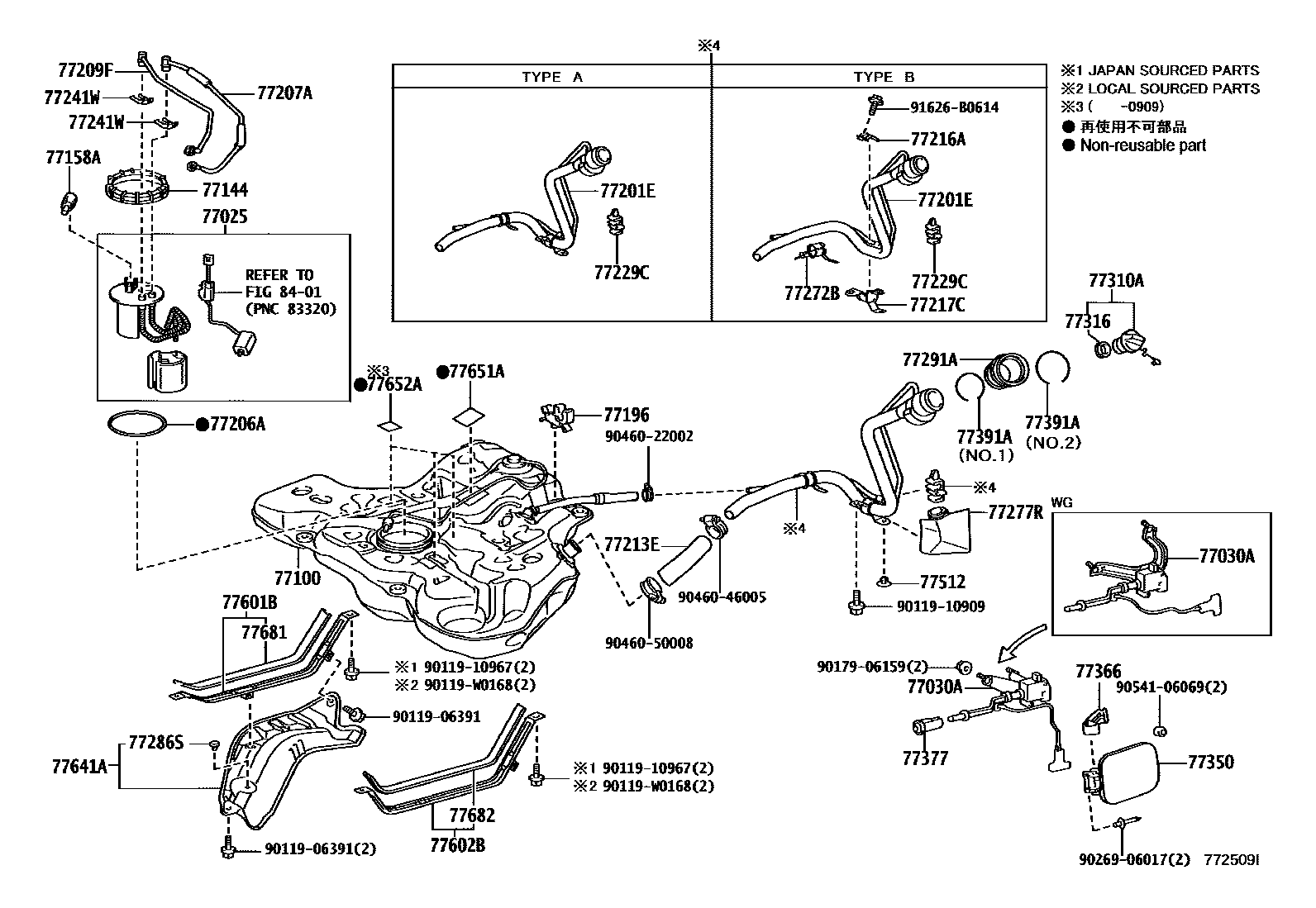

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL TANK 0004 1FUEL TUBE 0005 1FUEL TUBE 0006 1FUEL TUBE

77025TUBE SUB-ASSY, FUEL MAIN & RETURN, REAR

main77010-05020iADT271;ADT270..RHD;ADT270..LHD..(E,N)200811-201210

sub77010-05050

main77010-05050iADT27#201210-201505

77030ALOCK ASSY, FUEL LID W/MOTOR

main77030-05020iADT27#,ZRT27#..SED200811-201505

main77030-05030iADT27#,ZRT27#..WG200811-201505

77100TANK ASSY, FUEL

main77001-05050iZRT272..RHD..HTWC200811-201505

main77001-05060iADT27#200811-201505

77144RETAINER, FUEL PUMP GAUGE

main77144-0H010iADT27#,ZRT27#200811-201505

77158ASUPPORT, TANK SUCTION TUBE

main77158-0D020iADT270..LHD..F200811-201505

77196CLAMP, EVAPORATION VENT TUBE, NO.1

main77196-02050iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

77201EPIPE SUB-ASSY, FUEL TANK FILLER

main77201-05140iZRT27#201505

main77201-05140iZRT27#201309-201505

TYPE B:REFER ILLUST.

main77201-05150iWWT27#201505

main77201-05150iADT27#201309-201505

TYPE B:REFER ILLUST.

main77201-20660iZRT272..RHD..HTWC200811-201111

main77201-20660iZRT27#201111-201309

TYPE A:REFER ILLUST.

main77201-20680iADT270..LHD..F200811-201111

main77201-20680iADT27#201111-201309

TYPE A:REFER ILLUST.

77206AGASKET (FOR FUEL TANK SUCTION TUBE)

main77169-0D030iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

77207ATUBE SUB-ASSY, FUEL RETURN

main77204-02050iADT271;ADT270..RHD;ADT270..LHD..(E,N)200811-201505

main77204-05050iWWT27#201505

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-02090iADT27#,ZRT27#200811-201505

77213EHOSE, FUEL TANK TO FILLER PIPE

main77213-02220iWWT27#,ZRT27#201307-201505

main77213-20190iADT27#,ZRT27#200811-201306

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-02170iADT27#,ZRT27#201309-201505

TYPE B:REFER ILLUST.

main77216-02170iWWT27#,ZRT27#201505

77217CSUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-05050iADT27#,ZRT27#201309-201505

TYPE B:REFER ILLUST.

main77217-05050iWWT27#,ZRT27#201505

77229CCLAMP, BREATHER TUBE

main77229-12070iWWT27#,ZRT27#200811-201111

main77229-12070iADT27#,ZRT27#201111-201309

TYPE A:REFER ILLUST.

main77229-12070iADT27#,ZRT27#201309-201505

TYPE B:REFER ILLUST.

77241WCLIP, TUBE JOINT

main77241-32060iADT271;ADT270..RHD;ADT270..LHD..(E,N)200811-201505

main77241-32060iWWT27#,ZRT27#201505

PTC HEATER-WITHOUT & WITH(STOVE HEATER)

77272BSUPPORT, BREATHER TUBE, NO.1

main77272-05030iADT27#,ZRT27#201309-201505

TYPE B:REFER ILLUST.

main77272-05030iWWT27#,ZRT27#201505

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-12180iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

77286SCUSHION, FUEL TANK PROTECTOR

main77286-02070iADT27#,ZRT27#201208-201505

main77286-12110iADT270..LHD..F;ZRT272..RHD..HTWC200811-201207

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-05040iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

77310ACAP ASSY, FUEL TANK

main77300-12020iZRT27#201309-201505

main77300-12030iWWT27#201309-201505

main77300-20020iADT270..LHD..F200811-201309

main77300-52030iZRT27#200811-201309

77316GASKET, FUEL TANK CAP

main77316-52040iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

77350LID ASSY, FUEL FILLER OPENING

main77350-05030iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

main77350-05040iWWT27#,ZRT27#..WG200811-201505

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-33030iWWT27#,ZRT27#200811-201505

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-05020iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

77391ARING, FUEL INLET BOX

main77391-12020iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

NO.1

main77391-20040iADT27#,ZRT27#200811-201505

NO.2

77512BRACKET, FUEL TANK, REAR

main77512-35140iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH

main77601-05050iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-05040iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

77641APROTECTOR, FUEL TANK, NO.1

main77641-02070iADT27#,ZRT27#200811-201505

77651ACUSHION, FUEL TANK, NO.1

main77651-12070iADT27#,ZRT27#200811-201505

77652ACUSHION, FUEL TANK, NO.2

main77652-45020iZRT27#200811-201505

77681SEAT, FUEL TANK BAND, RH

main77681-05010iADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)200811-201505

77682SEAT, FUEL TANK BAND, LH

main77681-05020iADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)200811-201505

8401

9011906391

main90119-06391

9011910909

main90119-10909

9011910967

main90119-10967

90119W0168

main90119-W0168

9017906159

main90179-06159

9026906017

main90269-06017

9046022002

main90460-22002

9046046005

main90460-46005

9046050008

main90460-50008

9054106069

main90541-06069

91626B0614

main91626-B0614

45 parts on this diagram · 6 diagrams in section
