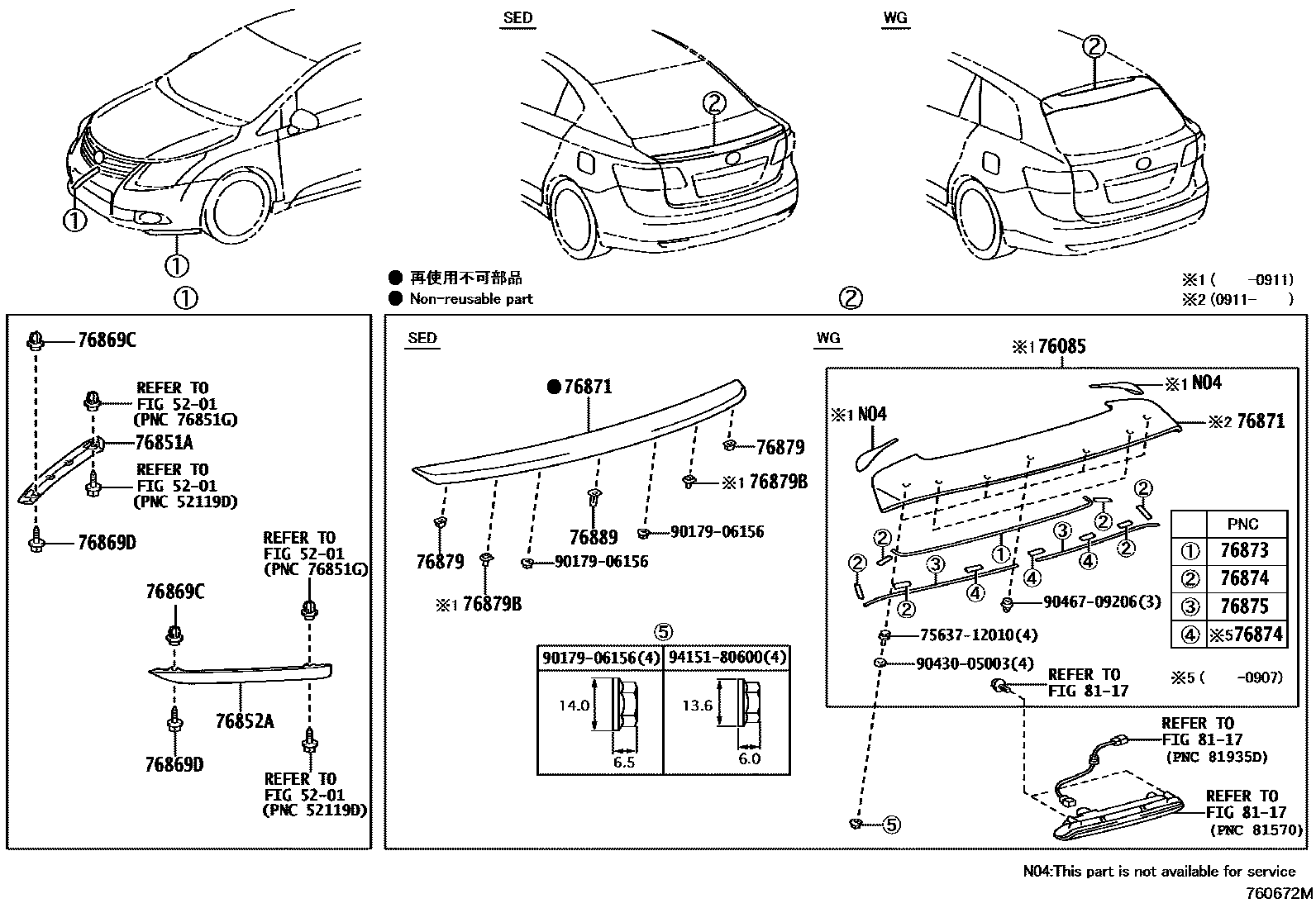

MUDGUARD & SPOILER
5201
76085SPOILER SUB-ASSY, REAR
PAINT REQ.
sub76871-05909
sub75637-12010
sub76873-05030
sub76874-05030
sub76875-05030
sub90159-50270
sub90430-05003
sub90467-09206
76851ACOVER, FRONT SPOILER, RH
76852ACOVER, FRONT SPOILER, LH
76869CGROMMET, SCREW, NO.1
76869DSCREW, NO.2
76871SPOILER, REAR
PAINT REQ.
PAINT REQ.,REAR SPOILER-WITH
REAR SPOILER-WITHOUT
REAR SPOILER-WITH
REAR SPOILER-WITHOUT
PAINT REQ.
PAINT REQ.,REAR SPOILER-WITH
PAINT REQ.
76873PROTECTOR, REAR SPOILER, NO.2
76874PROTECTOR, REAR SPOILER, NO.3
76875PROTECTOR, REAR SPOILER, NO.4
76879CLIP, REAR SPOILER, NO.1
REAR SPOILER-WITH
76879BCLIP, REAR SPOILER, NO.2
REAR SPOILER-WITH
76889CLIP, REAR SPOILER, NO.2
REAR SPOILER-WITH
8117
7563712010
main75637-12010
9017906156
main90179-06156
9043005003
main90430-05003
9046709206
main90467-09206
9415180600
main94151-80600
19 parts on this diagram · 2 diagrams in section
