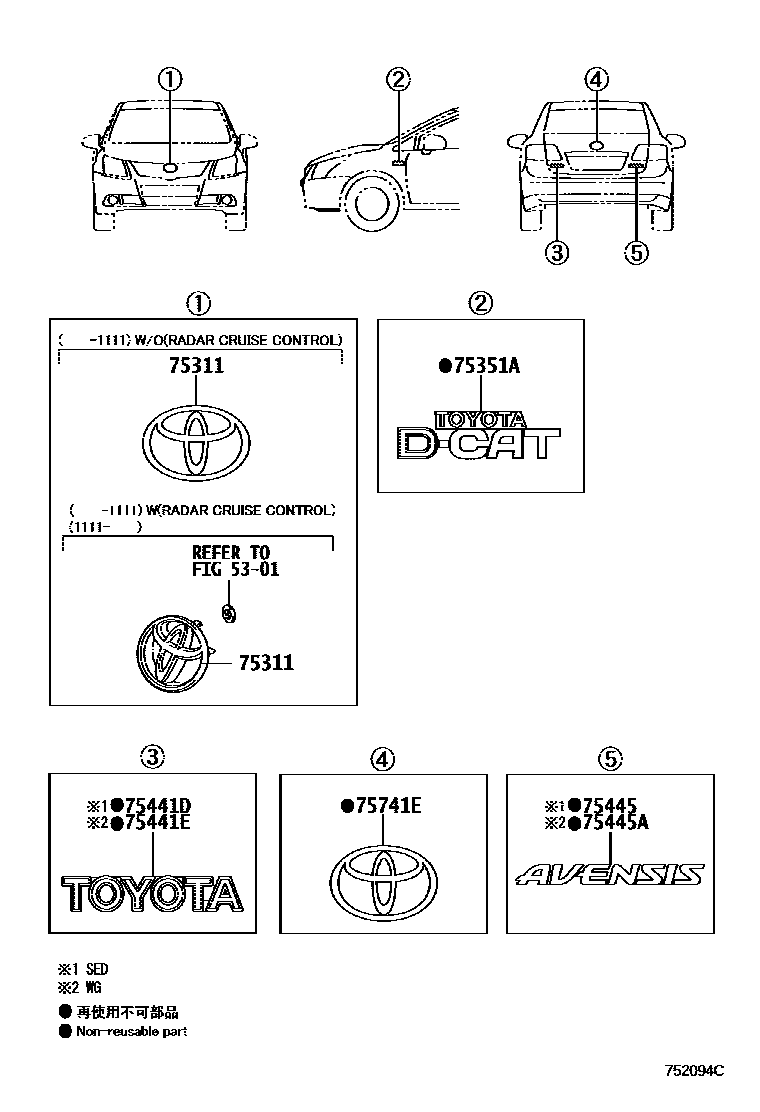

EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

0001 1 0002 1

5301

75311EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)

main75301-05020iADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)200811-201111

main75301-05030iADT27#,ZRT27#201111-201505

main90975-02188iWWT27#,ZRT27#201505

75351AEMBLEM, FRONT FENDER

main75351-20060iADT271..DCRL200811-201302

75441DPLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.1

main75441-05080iADT270..RHD..SED;ADT271,ZRT27#..SED..(DCR,DCRL,HTWVM);ADT270,ZRT272..LHD..SED..(E,N)..(DCR,HTWC)200811-201807

TOYOTA

75441EPLATE, BACK DOOR NAME, NO.1

main75441-05090iADT27#,ZRT27#..WG200811-201505

TOYOTA

75445PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.5

main75445-05130iADT27#,ZRT27#..SED200811-201505

AVENSIS

main75445-05130iWWT27#,ZRT27#..SED201505

AVENSIS,SIMPLE PACKAGE

main75445-05130iWWT27#,ZRT27#..SED201505

AVENSIS,SIMPLE PACKAGE&BRAND NAME MARK-WITHOUT

75445APLATE, BACK DOOR NAME, NO.5

main75445-05130iWWT270..WG..(E,N)201505

AVENSIS,SIMPLE PACKAGE

main75445-05130iWWT270..WG..(E,N)201505

AVENSIS,SIMPLE PACKAGE&BRAND NAME MARK-WITHOUT

main75445-05130iWWT27#,ZRT27#..WG201505

AVENSIS

main75445-05140iADT27#,ZRT27#..WG200811-201505

AVENSIS

75741EEMBLEM, SYMBOL

main75431-0D050iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

main75431-0D050iWWT27#,ZRT27#201505

SIMPLE PACKAGE

8 parts on this diagram · 2 diagrams in section
