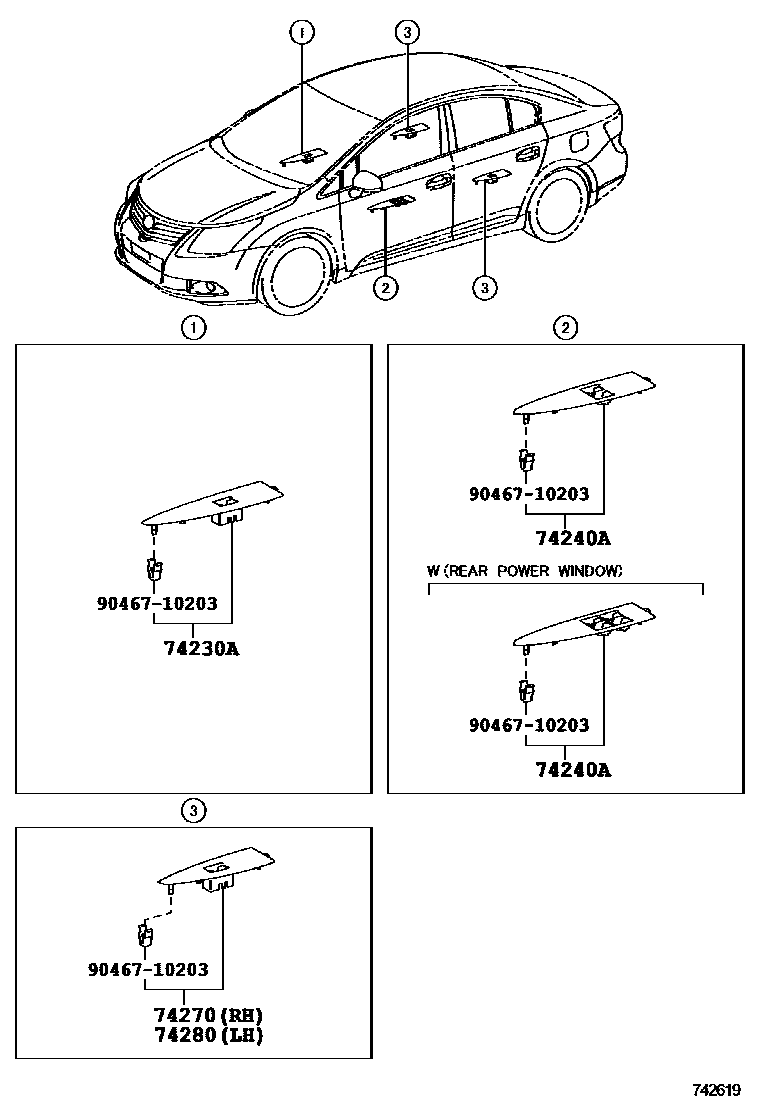

ARMREST & VISOR

0001 1ARMREST 0002 1ARMREST 0003 1VISOR & ASSIST GRIP 0004 1ASSIST GRIP

74230APANEL ASSY, FRONT DOOR ARMREST BASE, RH

main74231-05170iADT270,ZRT270,271..LHD..N200811-201111

main74231-05180iZRT272..LHD..HTWC;ADT270,ZRT271..LHD..E200811-201111

SOL-PLUS GRADE & LUXURY PACKAGE

main74231-05190iADT270,ZRT270,271..RHD..N200811-201111

main74231-05200iADT27#,ZRT27#..RHD..(E,F)..(DCR,HTWVM)200811-201111

BASE PACKAGE

main74231-05210supersedes 74231-05200iADT270,ZRT271,272..RHD..E..(DCR,HTWVM)200811-201111

SOL-PLUS GRADE & LUXURY PACKAGE

main74231-05220iADT270..LHD..F200811-201104

main74231-05230iADT271,ZRT272..LHD..6F..G201111-201505

SOL GRADE

main74231-05250iADT270,ZRT270,271..RHD..N201111-201505

main74231-05260iADT27#,ZRT27#..RHD..E201111-201505

SOL GRADE

main74231-05270iADT27#,ZRT271,272..RHD..G201111-201505

SOL-PLUS GRADE(NICKEL)

main74231-05340iWWT27#,ZRT27#..LHD201505

main74231-05350iWWT270,ZRT270,271..RHD..N201505

main74231-05360iWWT27#,ZRT27#..RHD..(E,G)201505

main74231-05280supersedes 74231-05240iADT27#,ZRT271,272..LHD..G201111-201505

PREMIUM GRADE(NICKEL)

main74231-05290supersedes 74231-05240iZRT270..LHD..E;ADT27#,ZRT271,272..LHD..G201302-201505

SOL-PLUS GRADE(SILVER 2)

main74231-05300iZRT270..RHD..E;ADT27#,ZRT271,272..RHD..G201302-201505

SOL-PLUS GRADE(NICKEL 2)

main74231-05310iADT27#,ZRT271..RHD..G201111-201505

PREMIUM GRADE(SILVER)

74240APANEL ASSY, FRONT DOOR ARMREST BASE, LH

main74232-05190iADT270,ZRT270,271..LHD..N200811-201111

main74232-05200iADT271..LHD..V;ADT271,ZRT272..LHD..(CVT,MTM)..G200811-201111

BASE PACKAGE

main74232-05210iZRT272..LHD..HTWC;ADT270,ZRT271..LHD..E200811-201111

SOL-PLUS GRADE & LUXURY PACKAGE

main74232-05220iADT270,ZRT270,271..RHD..N200811-201111

main74232-05230supersedes 74232-05240iADT270,ZRT271,272..RHD..E..(DCR,HTWVM)200811-201111

SOL-PLUS GRADE & LUXURY PACKAGE

main74232-05240iADT27#,ZRT27#..RHD..(E,F)..(DCR,HTWVM)200811-201111

BASE PACKAGE

main74232-05250iADT270,ZRT270,271..LHD..N201111-201505

main74232-05260iADT271,ZRT272..LHD..6F..G201111-201505

SOL GRADE

main74232-05280iADT271..RHD..DCRL201111-201505

SOL GRADE

main74232-05290iADT27#,ZRT271,272..RHD..G201111-201505

SOL-PLUS GRADE(NICKEL)

main74232-05340iWWT27#,ZRT27#..RHD201505

main74232-05350iWWT270,ZRT270,271..LHD..N201505

main74232-05360iWWT27#,ZRT27#..LHD..(E,G)201505

main74232-05300iZRT270..LHD..E;ADT27#,ZRT271,272..LHD..G201302-201505

SOL-PLUS GRADE(NICKEL 2)

main74232-05310supersedes 74232-05270iZRT270..LHD..E;ADT27#,ZRT271,272..LHD..G201302-201505

SOL-PLUS GRADE(SILVER 2)

main74232-05320iZRT270..RHD..E;ADT27#,ZRT271,272..RHD..G201302-201505

SOL-PLUS GRADE(NICKEL 2)

main74232-05330iADT27#,ZRT271..RHD..G201111-201505

PREMIUM GRADE(SILVER)

74270PANEL ASSY, REAR DOOR ARMREST BASE, RH

main74271-05040iADT270..LHD..F;ZRT272..RHD..HTWC200811-201104

main74271-05050iADT270,ZRT271..E;ZRT272..LHD..HTWC;ZRT272..RHD..HTWVM200811-201111

SOL-PLUS GRADE & LUXURY PACKAGE

main74271-05060iADT27#,ZRT27#..E201111-201505

SOL GRADE

main74271-05070iADT27#,ZRT271,272..G201111-201505

SOL-PLUS GRADE(NICKEL)

main74271-05110iWWT27#,ZRT27#..E,G201505

main74271-05090iZRT270..E;ADT27#,ZRT271,272..G201302-201505

SOL-PLUS GRADE(NICKEL 2)

main74271-05100iZRT270..E;ADT27#,ZRT271,272..G201302-201505

SOL-PLUS GRADE(SILVER 2)

74280PANEL ASSY, REAR DOOR ARMREST BASE, LH

main74272-05040iADT270..LHD..F;ZRT272..RHD..HTWC200811-201104

main74272-05050iADT270,ZRT271..E;ZRT272..LHD..HTWC;ZRT272..RHD..HTWVM200811-201111

SOL-PLUS GRADE & LUXURY PACKAGE

main74272-05060iADT27#,ZRT27#..E201111-201505

SOL GRADE

main74272-05070iADT27#,ZRT271,272..G201111-201505

SOL-PLUS GRADE(NICKEL)

main74272-05110iWWT27#,ZRT27#..E,G201505

main74272-05090iZRT272..LHD..G;ADT27#,ZRT271..G201111-201505

PREMIUM GRADE(NICKEL)

main74272-05100iZRT272..LHD..G;ADT27#,ZRT271..G201111-201505

PREMIUM GRADE(SILVER)

9046710203

main90467-10203

5 parts on this diagram · 4 diagrams in section
