EPC Data

FRONT SEAT & SEAT TRACK

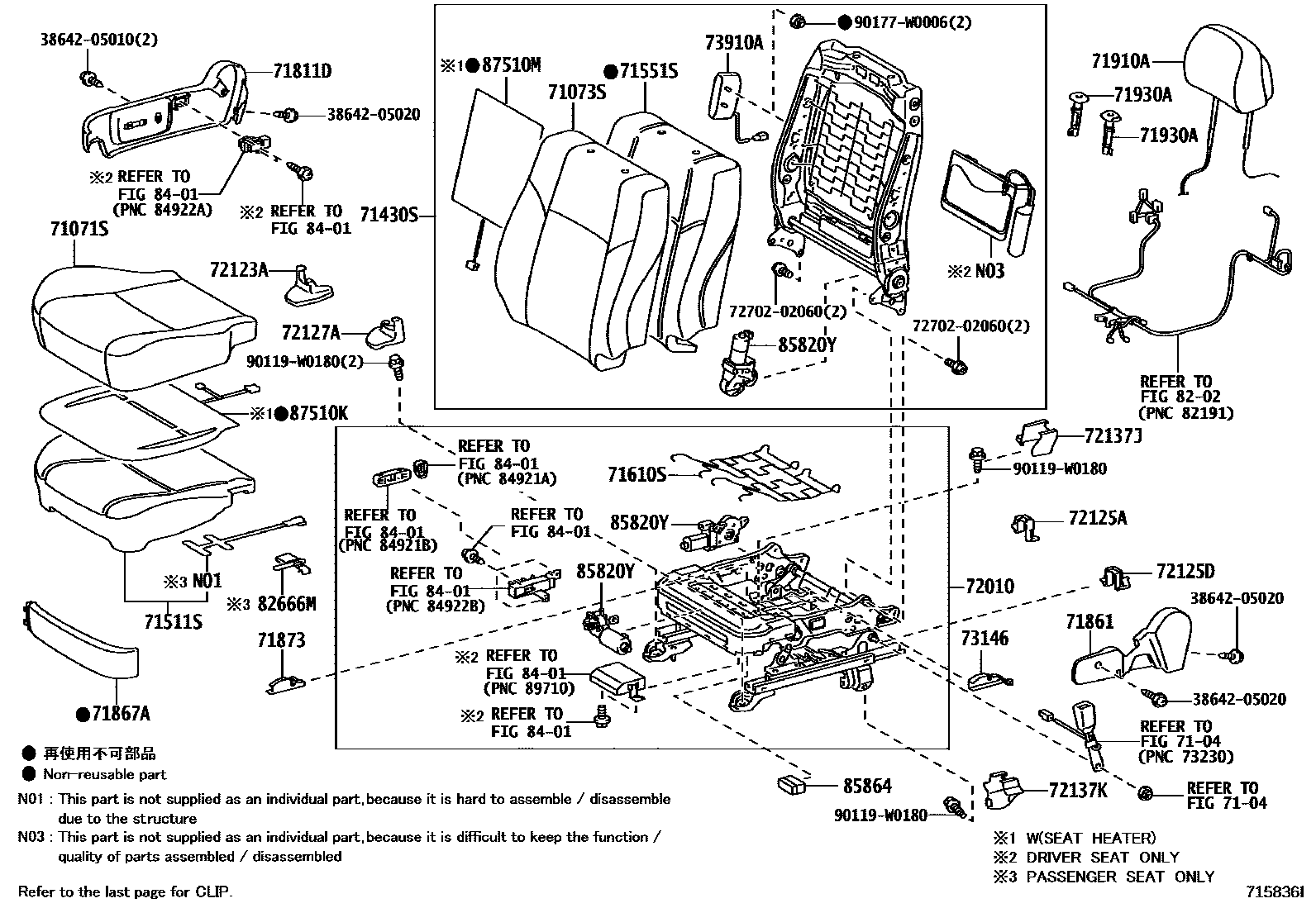

Parts diagram
7104
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71071-05750-C0i200811-201111
BLACK,TRIM2#
main71071-05760-C1i200811-201006
BLACK,TRIM2#
main71071-05770-C0i200811-201111
SOL-PLUS GRADE&SEAT COVER MATERIAL-G FABRIC, SOL-PLUS GRADE,BLACK,TRIM2#
main71071-05770-C0i200811-201111
SOL-PLUS GRADE&WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-G FABRIC, SOL-PLUS GRADE,BLACK,TRIM2#
main71071-05770-C0i200811-201111
BLACK,TRIM2#
main71071-05770-E0i200811-201111
GREGE,TRIM4#
main71071-05770-E0i200811-201111
SOL-PLUS GRADE&SEAT COVER MATERIAL-G FABRIC, SOL-PLUS GRADE,GREGE,TRIM4#
main71071-05770-E0i200811-201111
SOL-PLUS GRADE&WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-G FABRIC, SOL-PLUS GRADE,GREGE,TRIM4#
main71071-05890-C0i201006-201111
SOL GRADE&WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-E FABRIC,BLACK,TRIM2#
main71071-05890-C0i201006-201111
SOL GRADE&SEAT COVER MATERIAL-E FABRIC,BLACK,TRIM2#
main71071-05890-C0i201006-201111
BLACK,TRIM2#
main71071-05A00-C2i201111-201505
BLACK,TRIM2#
main71071-05A10-C1i201111-201505
SOL GRADE&WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-FABRIC(SOL-GRADE),BLACK,TRIM2#
main71071-05A10-C1i201111-201505
SOL GRADE&SEAT COVER MATERIAL-FABRIC(SOL-GRADE),BLACK,TRIM2#
main71071-05A10-C1i201111-201505
BLACK,TRIM2#
main71071-05A20-C3i201111-201505
BLACK,TRIM2#
sub71071-05A21¥64,800
main71071-05A20-C3i201111-201505
WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-LEATHER(ALCANTARA),BLACK,TRIM2#
sub71071-05A21¥64,800
main71071-05A20-C3i201111-201505
SEAT COVER MATERIAL-LEATHER(ALCANTARA),BLACK,TRIM2#
sub71071-05A21¥64,800
main71071-05A20-E1i201111-201505
WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-LEATHER(ALCANTARA),GREGE,TRIM4#
sub71071-05A21¥64,800
main71071-05A20-E1i201111-201505
SEAT COVER MATERIAL-LEATHER(ALCANTARA),GREGE,TRIM4#
sub71071-05A21¥64,800
main71071-05A20-E1i201111-201505
GREGE,TRIM4#
sub71071-05A21¥64,800
main71071-05A50-C1i201505
MID GRAY,TRIM2#
main71071-05A50-C1i201505
BASE PACKAGE&SEAT COVER MATERIAL-N FABRIC(BLACK),MID GRAY,TRIM2#
main71071-05A60-B1i201505
BLACK,TRIM1#
main71071-05A60-E1i201505
BLACK TERRACOTTA,TRIM4#
main71071-05A70-B3i201505
BLACK WITH GRAY,TRIM1#
main71071-05A70-B3i201505
SEAT COVER MATERIAL-LEATHER & ALCANTARA,BLACK WITH GRAY,TRIM1#
main71071-05A70-E3i201505
BLACK WITH COPPER,TRIM4#
main71071-05A70-E3i201505
SEAT COVER MATERIAL-LEATHER & ALCANTARA,BLACK WITH COPPER,TRIM4#
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71073-05A00-C0i200811-201111
BLACK,TRIM2#
main71073-05A10-C1i200811-201006
BLACK,TRIM2#
main71073-05A20-C0i200811-201111
BLACK,TRIM2#
main71073-05A20-C0i200811-201111
SOL-PLUS GRADE&WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-G FABRIC, SOL-PLUS GRADE,BLACK,TRIM2#
main71073-05A20-C0i200811-201111
SOL-PLUS GRADE&SEAT COVER MATERIAL-G FABRIC, SOL-PLUS GRADE,BLACK,TRIM2#
main71073-05A20-E0i200811-201111
SOL-PLUS GRADE&WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-G FABRIC, SOL-PLUS GRADE,GREGE,TRIM4#
main71073-05A20-E0i200811-201111
SOL-PLUS GRADE&SEAT COVER MATERIAL-G FABRIC, SOL-PLUS GRADE,GREGE,TRIM4#
main71073-05A20-E0i200811-201111
GREGE,TRIM4#
main71073-05B00-C0i201006-201111
SOL GRADE&SEAT COVER MATERIAL-E FABRIC,BLACK,TRIM2#
main71073-05B00-C0i201006-201111
SOL GRADE&WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-E FABRIC,BLACK,TRIM2#
main71073-05B00-C0i201006-201111
BLACK,TRIM2#
main71073-05B10-C2i201111-201505
BLACK,TRIM2#
main71073-05B20-C1i201111-201505
BLACK,TRIM2#
main71073-05B20-C1i201111-201505
SOL GRADE&WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-FABRIC(SOL-GRADE),BLACK,TRIM2#
main71073-05B20-C1i201111-201505
SOL GRADE&SEAT COVER MATERIAL-FABRIC(SOL-GRADE),BLACK,TRIM2#
main71073-05B30-C3i201111-201505
WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-LEATHER(ALCANTARA),BLACK,TRIM2#
main71073-05B30-C3i201111-201505
BLACK,TRIM2#
main71073-05B30-C3i201111-201505
SEAT COVER MATERIAL-LEATHER(ALCANTARA),BLACK,TRIM2#
main71073-05B30-E1i201111-201505
SEAT COVER MATERIAL-LEATHER(ALCANTARA),GREGE,TRIM4#
main71073-05B30-E1i201111-201505
GREGE,TRIM4#
main71073-05B30-E1i201111-201505
WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-LEATHER(ALCANTARA),GREGE,TRIM4#
main71073-05B60-B2i201505
MID GRAY,TRIM2#
main71073-05B60-B2i201505
BASE PACKAGE&SEAT COVER MATERIAL-N FABRIC(BLACK),MID GRAY,TRIM2#
main71073-05B70-C4i201505
BLACK,TRIM1#
main71073-05B70-C5i201505
BLACK TERRACOTTA,TRIM4#
main71073-05B80-C8i201505
BLACK WITH GRAY,TRIM1#
main71073-05B80-C8i201505
SEAT COVER MATERIAL-LEATHER & ALCANTARA,BLACK WITH GRAY,TRIM1#
main71073-05B80-C9i201505
BLACK WITH COPPER,TRIM4#
main71073-05B80-C9i201505
SEAT COVER MATERIAL-LEATHER & ALCANTARA,BLACK WITH COPPER,TRIM4#
71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71430-05530-C0i200811-201111
BLACK,TRIM2#
main71430-05860-C1i200811-201006
BLACK,TRIM2#
main71430-05870-C1i200811-201006
BLACK,TRIM2#
main71430-05890-C0i200811-201111
SOL-PLUS GRADE&SEAT COVER MATERIAL-G FABRIC, SOL-PLUS GRADE,BLACK,TRIM2#
main71430-05890-C0i200811-201111
BLACK,TRIM2#
main71430-05890-E0i200811-201111
GREGE,TRIM4#
main71430-05890-E0i200811-201111
SOL-PLUS GRADE&SEAT COVER MATERIAL-G FABRIC, SOL-PLUS GRADE,GREGE,TRIM4#
main71430-05A00-C0i200811-201111
BLACK,TRIM2#
main71430-05A00-C0i200811-201111
SOL-PLUS GRADE&SEAT COVER MATERIAL-G FABRIC, SOL-PLUS GRADE,BLACK,TRIM2#
main71430-05A00-E0i200811-201111
GREGE,TRIM4#
main71430-05A00-E0i200811-201111
SOL-PLUS GRADE&SEAT COVER MATERIAL-G FABRIC, SOL-PLUS GRADE,GREGE,TRIM4#
main71430-05A60-C1i200811-201006
BLACK,TRIM2#
main71430-05A70-C1i200811-201006
BLACK,TRIM2#
main71430-05B10-C0i201006-201111
SOL GRADE&SEAT COVER MATERIAL-E FABRIC,BLACK,TRIM2#
main71430-05B10-C0i201006-201111
BLACK,TRIM2#
main71430-05B20-C0i201006-201104
BLACK,TRIM2#
main71430-05B30-C0i201006-201111
BLACK,TRIM2#
main71430-05B30-C0i201006-201111
SOL GRADE&SEAT COVER MATERIAL-E FABRIC,BLACK,TRIM2#
main71430-05C00-C0i201006-201111
BLACK,TRIM2#
main71430-05C10-C2i201111-201306
BLACK,TRIM2#
sub71430-05C11
main71430-05C11-C0i201307-201505
BLACK,TRIM2#
main71430-05C20-C1i201111-201306
SOL GRADE&SEAT COVER MATERIAL-FABRIC(SOL-GRADE),BLACK,TRIM2#
sub71430-05C21
main71430-05C20-C1i201111-201306
BLACK,TRIM2#
sub71430-05C21
main71430-05C21-C0i201307-201505
BLACK,TRIM2#
main71430-05C21-C0i201307-201505
SOL GRADE&SEAT COVER MATERIAL-FABRIC(SOL-GRADE),BLACK,TRIM2#
main71430-05C30-C3i201111-201306
SEAT COVER MATERIAL-LEATHER(ALCANTARA),BLACK,TRIM2#
sub71430-05C31¥160,000
main71430-05C30-C3i201111-201306
BLACK,TRIM2#
sub71430-05C31¥160,000
main71430-05C30-E1i201111-201306
SEAT COVER MATERIAL-LEATHER(ALCANTARA),GREGE,TRIM4#
sub71430-05C31¥160,000
main71430-05C30-E1i201111-201306
GREGE,TRIM4#
sub71430-05C31¥160,000
main71430-05C31-C0i201307-201505
SEAT COVER MATERIAL-LEATHER(ALCANTARA),BLACK,TRIM2#
main71430-05C31-C0i201307-201505
BLACK,TRIM2#
main71430-05C31-E0i201307-201505
GREGE,TRIM4#
main71430-05C31-E0i201307-201505
SEAT COVER MATERIAL-LEATHER(ALCANTARA),GREGE,TRIM4#
main71430-05C60-C1i201111-201306
BLACK,TRIM2#
sub71430-05C61
main71430-05C61-C0i201307-201505
BLACK,TRIM2#
main71430-05C80-C3i201111-201306
SEAT COVER MATERIAL-LEATHER(ALCANTARA),BLACK,TRIM2#
sub71430-05C81
main71430-05C80-C3i201111-201306
BLACK,TRIM2#
sub71430-05C81
main71430-05C80-E1i201111-201306
SEAT COVER MATERIAL-LEATHER(ALCANTARA),GREGE,TRIM4#
sub71430-05C81
main71430-05C80-E1i201111-201306
GREGE,TRIM4#
sub71430-05C81
main71430-05C81-C0i201307-201505
BLACK,TRIM2#
main71430-05C81-C0i201307-201505
SEAT COVER MATERIAL-LEATHER(ALCANTARA),BLACK,TRIM2#
main71430-05C81-E0i201307-201505
SEAT COVER MATERIAL-LEATHER(ALCANTARA),GREGE,TRIM4#
main71430-05C81-E0i201307-201505
GREGE,TRIM4#
main71430-05D00-C1i201111-201306
BLACK,TRIM2#
sub71430-05D01
main71430-05D00-C1i201111-201306
SOL GRADE&SEAT COVER MATERIAL-FABRIC(SOL-GRADE),BLACK,TRIM2#
sub71430-05D01
main71430-05D01-C0i201307-201505
BLACK,TRIM2#
main71430-05D01-C0i201307-201505
SOL GRADE&SEAT COVER MATERIAL-FABRIC(SOL-GRADE),BLACK,TRIM2#
main71430-05D50-C2i201505
BLACK,TRIM2#
main71430-05D50-C2i201505
BASE PACKAGE&SEAT COVER MATERIAL-N FABRIC(BLACK),BLACK,TRIM2#
main71430-05D70-B2i201505
GRAY,TRIM1#
main71430-05D70-E2i201505
TERRACOTTA,TRIM4#
main71430-05D80-B2i201505
GRAY,TRIM1#
main71430-05D80-E2i201505
TERRACOTTA,TRIM4#
main71430-05E10-B4i201505
GRAY,TRIM1#
main71430-05E10-B4i201505
SEAT COVER MATERIAL-LEATHER & ALCANTARA,GRAY,TRIM1#
main71430-05E10-E4i201505
TERRACOTTA,TRIM4#
main71430-05E10-E4i201505
SEAT COVER MATERIAL-LEATHER & ALCANTARA,TERRACOTTA,TRIM4#
main71430-05E20-B4i201505
SEAT COVER MATERIAL-LEATHER & ALCANTARA,GRAY,TRIM1#
main71430-05E20-B4i201505
GRAY,TRIM1#
main71430-05E20-E4i201505
SEAT COVER MATERIAL-LEATHER & ALCANTARA,TERRACOTTA,TRIM4#
main71430-05E20-E4i201505
TERRACOTTA,TRIM4#
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71501-05070i200811-201505
main71501-05090i201505
main71511-05090i¥13,200200811-201505
main71511-05120i¥13,400201505
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71551-05100i¥13,200200811-201111
main71551-05120i¥13,400201505
main71551-05130i¥16,100201111-201505
71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71051-05030i¥1,490200811-201505
71811DSHIELD, FRONT SEAT CUSHION, RH
main71811-05070-C0i201111-201505
BLACK,TRIM1#,2#,4#
main71811-05070-C0i200811-201505
BLACK,TRIM2#
main71811-05070-C0i200811-201111
SOL-PLUS GRADE&WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-G FABRIC, SOL-PLUS GRADE,BLACK,TRIM2#
main71811-05070-C0i200811-201111
SOL-PLUS GRADE&SEAT COVER MATERIAL-G FABRIC, SOL-PLUS GRADE,BLACK,TRIM2#
main71811-05070-C0i201111-201505
BLACK,TRIM2#,4#
main71811-05070-C1i201505
EU BLACK,TRIM2#
main71811-05070-C1i201505
BASE PACKAGE&SEAT COVER MATERIAL-N FABRIC(BLACK),EU BLACK,TRIM1#,2#,4#
main71811-05070-C1i201505
SEAT COVER MATERIAL-LEATHER(BLACK)&SEAT HEATER-WITH,EU BLACK,TRIM1#,2#,4#
main71811-05070-C1i201505
EU BLACK,TRIM1#,2#,4#
main71811-05070-E0i200811-201111
GREGE,TRIM4#
main71811-05070-E0i200811-201111
SOL-PLUS GRADE&SEAT COVER MATERIAL-G FABRIC, SOL-PLUS GRADE,GREGE,TRIM4#
main71811-05070-E0i200811-201111
SOL-PLUS GRADE&WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-G FABRIC, SOL-PLUS GRADE,GREGE,TRIM4#
main71811-05080-C0i200811-201505
BLACK,TRIM2#
main71811-05080-C1i201505
BASE PACKAGE&SEAT COVER MATERIAL-N FABRIC(BLACK),EU BLACK,TRIM1#,2#,4#
main71811-05080-C1i201505
BASE PACKAGE&SEAT COVER MATERIAL-N FABRIC(BLACK),EU BLACK,TRIM2#
main71811-05080-C1i201505
EU BLACK,TRIM2#
main71811-05090-C0i201111-201505
BLACK,TRIM2#,4#
main71811-05090-C0i200811-201111
BLACK,TRIM2#
main71811-05090-C0i201111-201505
BLACK,TRIM1#,2#,4#
main71811-05090-C1i201505
EU BLACK,TRIM1#,2#,4#
main71811-05090-E0i200811-201111
GREGE,TRIM4#
71861SHIELD, FRONT SEAT CUSHION, INNER RH
main71861-05060-C0i201111-201505
BLACK,TRIM2#,4#
main71861-05060-C0i200811-201505
BLACK,TRIM2#
main71861-05060-C0i201111-201505
BLACK,TRIM1#,2#,4#
main71861-05060-C0i200811-201111
SOL-PLUS GRADE&WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-G FABRIC, SOL-PLUS GRADE,BLACK,TRIM2#
main71861-05060-C0i200811-201111
SOL-PLUS GRADE&SEAT COVER MATERIAL-G FABRIC, SOL-PLUS GRADE,BLACK,TRIM2#
main71861-05060-C0i200811-201111
SOL-PLUS GRADE & LUXURY PACKAGE&WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
main71861-05060-C0i200811-201111
SOL-PLUS GRADE & LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
main71861-05060-C1i201505
EU BLACK,TRIM2#
main71861-05060-C1i201505
EU BLACK,TRIM1#,2#,4#
main71861-05060-E0i200811-201111
SOL-PLUS GRADE&WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-G FABRIC, SOL-PLUS GRADE,GREGE,TRIM4#
main71861-05060-E0i200811-201111
GREGE,TRIM4#
main71861-05060-E0i200811-201111
SOL-PLUS GRADE&SEAT COVER MATERIAL-G FABRIC, SOL-PLUS GRADE,GREGE,TRIM4#
main71861-05060-E0i200811-201111
SOL-PLUS GRADE & LUXURY PACKAGE&WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4#
main71861-05060-E0i200811-201111
SOL-PLUS GRADE & LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4#
71867ASHIELD, FRONT SEAT CUSHION, INNER NO.1 RH
71873SHIELD, FRONT SEAT CUSHION, LOWER RH
main71873-05030-C0i201111-201505
SEAT COVER MATERIAL-LEATHER(PERFORATED),BLACK,TRIM1#,2#,4#
main71873-05030-C0i200811-201505
BLACK,TRIM2#
main71873-05030-C0i200811-201111
PREMIUM GRADE&WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
main71873-05030-C0i200811-201111
PREMIUM GRADE&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
main71873-05030-C0i200811-201111
SOL-PLUS GRADE & LUXURY PACKAGE&WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
main71873-05030-C0i200811-201111
SOL-PLUS GRADE & LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
main71873-05030-C0i201111-201505
BLACK,TRIM1#,2#,4#
main71873-05030-C0i201111-201505
BLACK,TRIM2#,4#
main71873-05030-C0i201111-201505
SOL-PLUS GRADE(NICKEL)&WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-LEATHER(PERFORATED),BLACK,TRIM1#,2#,4#
main71873-05030-C0i201111-201505
SOL-PLUS GRADE(NICKEL)&SEAT COVER MATERIAL-LEATHER(PERFORATED),BLACK,TRIM1#,2#,4#
main71873-05030-C0i201111-201505
SOL-PLUS GRADE(SILVER)&SEAT COVER MATERIAL-LEATHER(PERFORATED),BLACK,TRIM1#,4#
main71873-05030-C0i201111-201505
WITH(WIND SHIELD GLASS DEICER)&CRUISE CONTROL-WITH(W/RADAR CRUISE)&SEAT COVER MATERIAL-LEATHER(PERFORATED),BLACK,TRIM1#,2#,4#
main71873-05030-C0i201111-201505
WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-LEATHER(PERFORATED),BLACK,TRIM1#,2#,4#
main71873-05030-C0i201111-201505
CRUISE CONTROL-WITH(W/RADAR CRUISE)&SEAT COVER MATERIAL-LEATHER(PERFORATED),BLACK,TRIM1#,2#,4#
main71873-05030-C1i201505
SEAT COVER MATERIAL-LEATHER(BLACK)&SEAT HEATER-WITH&AUDIO-DISPLAY AUDIO & 10SPEAKER,EU BLACK,TRIM2#
main71873-05030-C1i201505
EU BLACK,TRIM2#
main71873-05030-C1i201505
EU BLACK,TRIM1#,2#,4#
main71873-05030-C1i201505
PREMIUM GRADE&SEAT COVER MATERIAL-LEATHER(BLACK)&SEAT HEATER-WITH,EU BLACK,TRIM2#
main71873-05030-C1i201505
SEAT COVER MATERIAL-LEATHER(BLACK)&SEAT HEATER-WITH&AUDIO-DISPLAY AUDIO & DAB & 10SPEAKER,EU BLACK,TRIM2#
main71873-05030-E0i200811-201111
GREGE,TRIM4#
main71873-05030-E0i200811-201111
PREMIUM GRADE&WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4#
main71873-05030-E0i200811-201111
PREMIUM GRADE&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4#
main71873-05030-E0i200811-201111
SOL-PLUS GRADE & LUXURY PACKAGE&WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4#
main71873-05030-E0i200811-201111
SOL-PLUS GRADE & LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4#
71910AHEADREST ASSY, FRONT SEAT
main71910-05200-C0i200811-201111
BLACK,TRIM2#
main71910-05210-C1i200811-201006
BLACK,TRIM2#
main71910-05220-C0i200811-201111
SOL-PLUS GRADE&WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-G FABRIC, SOL-PLUS GRADE,BLACK,TRIM2#
main71910-05220-C0i200811-201111
BLACK,TRIM2#
main71910-05220-C0i200811-201111
SOL-PLUS GRADE&SEAT COVER MATERIAL-G FABRIC, SOL-PLUS GRADE,BLACK,TRIM2#
main71910-05220-E0i200811-201111
SOL-PLUS GRADE&SEAT COVER MATERIAL-G FABRIC, SOL-PLUS GRADE,GREGE,TRIM4#
main71910-05220-E0i200811-201111
GREGE,TRIM4#
main71910-05220-E0i200811-201111
SOL-PLUS GRADE&WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-G FABRIC, SOL-PLUS GRADE,GREGE,TRIM4#
main71910-05260-C0i200811-201006
BLACK,TRIM2#
main71910-05270-C0i201006-201111
BLACK,TRIM2#
main71910-05270-C0i201006-201111
SOL GRADE&WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-E FABRIC,BLACK,TRIM2#
main71910-05270-C0i201006-201111
SOL GRADE&SEAT COVER MATERIAL-E FABRIC,BLACK,TRIM2#
main71910-05280-C0i201006-201111
BLACK,TRIM2#
main71910-05290-C1i201111-201505
SOL GRADE&SEAT COVER MATERIAL-FABRIC(SOL-GRADE),BLACK,TRIM2#
main71910-05290-C1i201111-201505
BLACK,TRIM2#
main71910-05290-C1i201111-201505
SOL GRADE&WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-FABRIC(SOL-GRADE),BLACK,TRIM2#
main71910-05300-C2i201111-201505
BLACK,TRIM2#
main71910-05300-C2i201111-201505
SEAT COVER MATERIAL-LEATHER(ALCANTARA),BLACK,TRIM2#
main71910-05300-C2i201111-201505
WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-LEATHER(ALCANTARA),BLACK,TRIM2#
main71910-05300-C2i201111-201505
SOL-PLUS GRADE(NICKEL)&SEAT COVER MATERIAL-LEATHER(PERFORATED),BLACK,TRIM2#
main71910-05300-C2i201111-201505
SOL-PLUS GRADE(NICKEL)&WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-LEATHER(PERFORATED),BLACK,TRIM2#
main71910-05300-E1i201111-201505
SEAT COVER MATERIAL-LEATHER(ALCANTARA),GREGE,TRIM4#
main71910-05300-E1i201111-201505
WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-LEATHER(ALCANTARA),GREGE,TRIM4#
main71910-05300-E1i201111-201505
GREGE,TRIM4#
main71910-05330-C1i201111-201505
BLACK,TRIM2#
main71910-05350-20i201505
SEAT COVER MATERIAL-LEATHER & ALCANTARA,BLACK/DK BEIGE,TRIM2#
main71910-05350-20i201505
BLACK/DK BEIGE,TRIM2#
main71910-05350-20i201505
SEAT COVER MATERIAL-LEATHER & ALCANTARA&SEAT HEATER-WITH,BLACK/DK BEIGE,TRIM2#
main71910-05350-20i201505
SEAT COVER MATERIAL-LEATHER(BLACK)&SEAT HEATER-WITH&AUDIO-DISPLAY AUDIO & 10SPEAKER,BLACK/DK BEIGE,TRIM2#
main71910-05350-20i201505
SEAT COVER MATERIAL-LEATHER(BLACK)&SEAT HEATER-WITH&AUDIO-DISPLAY AUDIO & DAB & 10SPEAKER,BLACK/DK BEIGE,TRIM2#
main71910-05350-21i201505
SEAT COVER MATERIAL-LEATHER & ALCANTARA,BLACK/COPPER,TRIM4#
main71910-05350-21i201505
WINTER PACKAGE&SEAT COVER MATERIAL-LEATHER & ALCANTARA,BLACK/COPPER,TRIM4#
main71910-05350-21i201505
SEAT COVER MATERIAL-LEATHER & ALCANTARA&SEAT HEATER-WITH,BLACK/COPPER,TRIM4#
main71910-05350-21i201505
SEAT COVER MATERIAL-LEATHER(BLACK)&SEAT HEATER-WITH&AUDIO-DISPLAY AUDIO & 10SPEAKER,BLACK/COPPER,TRIM4#
main71910-05350-21i201505
BLACK/COPPER,TRIM4#
main71910-05350-21i201505
SEAT COVER MATERIAL-LEATHER(BLACK)&SEAT HEATER-WITH&AUDIO-DISPLAY AUDIO & DAB & 10SPEAKER,BLACK/COPPER,TRIM4#
main71910-05350-C9i201505
BLACK/LT GRAY,TRIM1#
main71910-05350-C9i201505
WINTER PACKAGE&SEAT COVER MATERIAL-LEATHER & ALCANTARA,BLACK/LT GRAY,TRIM1#
main71910-05350-C9i201505
SEAT COVER MATERIAL-LEATHER & ALCANTARA,BLACK/LT GRAY,TRIM1#
main71910-05350-C9i201505
SEAT COVER MATERIAL-LEATHER & ALCANTARA&SEAT HEATER-WITH,BLACK/LT GRAY,TRIM1#
main71910-05350-C9i201505
SEAT COVER MATERIAL-LEATHER(BLACK)&SEAT HEATER-WITH&AUDIO-DISPLAY AUDIO & 10SPEAKER,BLACK/LT GRAY,TRIM1#
main71910-05350-C9i201505
SEAT COVER MATERIAL-LEATHER(BLACK)&SEAT HEATER-WITH&AUDIO-DISPLAY AUDIO & DAB & 10SPEAKER,BLACK/LT GRAY,TRIM1#
main71910-05360-C0i201505
BLACK/LT GRAY,TRIM1#
main71910-05360-C1i201505
BLACK/COPPER,TRIM4#
main71910-05370-C0i201505
BLACK,TRIM2#
main71910-05370-C0i201505
BASE PACKAGE&SEAT COVER MATERIAL-N FABRIC(BLACK),BLACK,TRIM1#,2#,4#
main71910-05370-C0i201505
BASE PACKAGE&SEAT COVER MATERIAL-N FABRIC(BLACK),BLACK,TRIM2#
71930ASUPPORT ASSY, FRONT SEAT HEADREST
main71930-02310-C0i200811-200901
W(LOCK),BLACK,TRIM2#
main71930-02310-C0i200811-200901
W(LOCK),WITH(WIND SHIELD GLASS DEICER),BLACK,TRIM2#
main71930-02310-E0i200811-200901
W(LOCK),GREGE,TRIM4#
main71930-02310-E0i200811-200901
W(LOCK),SOL-PLUS GRADE&WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-G FABRIC, SOL-PLUS GRADE,GREGE,TRIM4#
main71930-02310-E0i200811-200901
W(LOCK),SOL-PLUS GRADE&SEAT COVER MATERIAL-G FABRIC, SOL-PLUS GRADE,GREGE,TRIM4#
main71930-02310-E0i200811-200901
W(LOCK),SOL-PLUS GRADE & LUXURY PACKAGE&WITH(WIND SHIELD GLASS DEICER)&SEAT COVERMATERIAL-LEATHER,GREGE,TRIM4#
main71930-02310-E0i200811-200901
W(LOCK),SOL-PLUS GRADE & LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4#
main71930-05030-C0i201111-201505
W(LOCK)&W/O(BUTTON),SOL-PLUS GRADE(NICKEL)&WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-LEATHER(PERFORATED),BLACK,TRIM11,2#,4#
main71930-05030-C0i200811-201505
W(LOCK)&W/O(BUTTON),BLACK,TRIM2#
main71930-05030-C0i200811-201111
W(LOCK)&W/O(BUTTON),WITH(WIND SHIELD GLASS DEICER),BLACK,TRIM2#
main71930-05030-C0i201111-201505
W(LOCK)&W/O(BUTTON),BLACK,TRIM1#,2#
main71930-05030-C0i201111-201505
W(LOCK)&W/O(BUTTON),BLACK,TRIM2#,40
main71930-05030-C0i201111-201505
W(LOCK)&W/O(BUTTON),SOL-PLUS GRADE(NICKEL)&SEAT COVER MATERIAL-LEATHER(PERFORATED),BLACK,TRIM11,2#,4#
main71930-05030-C1i201505
W(LOCK)&W/O(BUTTON),EU BLACK,TRIM2#
main71930-05030-C1i201505
W(LOCK)&W/O(BUTTON),BASE PACKAGE&SEAT COVER MATERIAL-N FABRIC(BLACK),EU BLACK,TRIM2#
main71930-05030-C1i201505
W(LOCK)&W/O(BUTTON),EU BLACK,TRIM1#,2#,4#
main71930-05030-E0i200811-201111
W(LOCK)&W/O(BUTTON),GREGE,TRIM4#
main71930-05030-E0i200811-201111
W(LOCK)&W/O(BUTTON),SOL-PLUS GRADE & LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4#
main71930-05030-E0i200811-201111
W(LOCK)&W/O(BUTTON),SOL-PLUS GRADE & LUXURY PACKAGE&WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4#
main71930-05030-E0i200811-201111
W(LOCK)&W/O(BUTTON),SOL-PLUS GRADE&SEAT COVER MATERIAL-G FABRIC, SOL-PLUS GRADE,GREGE,TRIM4#
main71930-05030-E0i200811-201111
W(LOCK)&W/O(BUTTON),SOL-PLUS GRADE&WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-G FABRIC, SOL-PLUS GRADE,GREGE,TRIM4#
main71930-05030-E0i201111-201505
W(LOCK)&W/O(BUTTON),WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-LEATHER(ALCANTARA),GREGE,TRIM40
main71930-05030-E0i201111-201505
W(LOCK)&W/O(BUTTON),SEAT COVER MATERIAL-LEATHER(ALCANTARA),GREGE,TRIM40
main71930-05030-E0i201111-201505
W(LOCK)&W/O(BUTTON),GREGE,TRIM40
main71930-05040-C0i200902-201111
W(LOCK),WITH(WIND SHIELD GLASS DEICER),BLACK,TRIM2#
main71930-05040-C0i201111-201505
W(LOCK),BLACK,TRIM2#,40
main71930-05040-C0i201111-201505
W(LOCK),SOL-PLUS GRADE(NICKEL)&WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-LEATHER(PERFORATED),BLACK,TRIM11,2#,4#
main71930-05040-C0i201111-201505
W(LOCK),SOL-PLUS GRADE(NICKEL)&SEAT COVER MATERIAL-LEATHER(PERFORATED),BLACK,TRIM11,2#,4#
main71930-05040-C0i200902-201505
W(LOCK),BLACK,TRIM2#
main71930-05040-C0i201111-201505
W(LOCK),BLACK,TRIM1#,2#
main71930-05040-C0i200902-201111
W(LOCK),SOL GRADE&WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-E FABRIC,BLACK,TRIM2#
main71930-05040-C1i201505
W(LOCK),EU BLACK,TRIM2#
main71930-05040-C1i201505
W(LOCK),EU BLACK,TRIM1#,2#,4#
main71930-05040-C1i201505
W(LOCK),BASE PACKAGE&SEAT COVER MATERIAL-N FABRIC(BLACK),EU BLACK,TRIM2#
main71930-05040-E0i200902-201111
W(LOCK),SOL-PLUS GRADE & LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4#
main71930-05040-E0i200902-201111
W(LOCK),GREGE,TRIM4#
main71930-05040-E0i200902-201111
W(LOCK),SOL-PLUS GRADE&WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-G FABRIC, SOL-PLUS GRADE,GREGE,TRIM4#
main71930-05040-E0i200902-201111
W(LOCK),SOL-PLUS GRADE&SEAT COVER MATERIAL-G FABRIC, SOL-PLUS GRADE,GREGE,TRIM4#
main71930-05040-E0i200902-201111
W(LOCK),SOL-PLUS GRADE & LUXURY PACKAGE&WITH(WIND SHIELD GLASS DEICER)&SEAT COVERMATERIAL-LEATHER,GREGE,TRIM4#
main71930-05040-E0i201111-201505
W(LOCK),SEAT COVER MATERIAL-LEATHER(ALCANTARA),GREGE,TRIM40
main71930-05040-E0i201111-201505
W(LOCK),WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-LEATHER(ALCANTARA),GREGE,TRIM40
main71930-05040-E0i201111-201505
W(LOCK),GREGE,TRIM40
72010ADJUSTER ASSY, FRONT SEAT, RH
main72010-05040i200811-201505
main72010-05070i¥45,600200811-201505
main72010-05090i¥37,900201505
72123ACOVER, SEAT TRACK BRACKET, OUTER FRONT RH
main72128-05020-C0i200811-201505
BLACK,TRIM2#
main72128-05020-C0i201111-201505
BLACK,TRIM1#,2#,4#
main72128-05020-C1i201505
EU BLACK,TRIM2#
main72128-05020-C1i201505
EU BLACK,TRIM1#,2#,4#
main72128-05020-E0i200811-201111
GREGE,TRIM4#
72125ACOVER, SEAT TRACK, UPPER REAR
main72125-02030i¥260200811-201505
sub72125-02050¥220
main72125-02030i¥260200811-201111
SOL-PLUS GRADE&WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-G FABRIC, SOL-PLUS GRADE
sub72125-02050¥220
main72125-02030i¥260200811-201111
SOL-PLUS GRADE&SEAT COVER MATERIAL-G FABRIC, SOL-PLUS GRADE
sub72125-02050¥220
main72265-02060-C1i201505
EU BLACK,TRIM2#
main72265-02060-C1i201505
EU BLACK,TRIM1#,4#
main72265-02060-C1i201505
EU BLACK,TRIM1#,2#,4#
72125DCOVER, SEAT TRACK, UPPER REAR NO.2
main72125-02040i¥260200811-201111
SOL-PLUS GRADE&WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-G FABRIC, SOL-PLUS GRADE
sub72125-02060¥220
main72125-02040i¥260200811-201505
sub72125-02060¥220
main72125-02040i¥260200811-201111
SOL-PLUS GRADE&SEAT COVER MATERIAL-G FABRIC, SOL-PLUS GRADE
sub72125-02060¥220
main72265-02070-C1i201505
EU BLACK,TRIM1#,4#
sub72265-02070¥240
main72265-02070-C1i201505
EU BLACK,TRIM2#
sub72265-02070¥240
main72265-02070-C1i201505
EU BLACK,TRIM1#,2#,4#
sub72265-02070¥240
72127ACOVER, SEAT TRACK BRACKET, INNER FRONT RH
main72124-05010-C0i201111-201505
BLACK,TRIM1#,2#,4#
main72124-05010-C0i200811-201505
BLACK,TRIM2#
main72124-05010-C1i201505
EU BLACK,TRIM1#,2#,4#
main72124-05010-C1i201505
EU BLACK,TRIM2#
main72124-05010-E0i200811-201111
GREGE,TRIM4#
72137JCOVER, FRONT SEAT TRACK, RH REAR OUTER
main72137-05050-C0i200811-201505
BLACK,TRIM2#
main72137-05050-C0i201111-201505
BLACK,TRIM1#,2#,4#
main72137-05050-C1i201505
EU BLACK,TRIM1#,2#,4#
main72137-05050-C1i201505
EU BLACK,TRIM2#
main72137-05050-E0i200811-201111
GREGE,TRIM4#
72137KCOVER, FRONT SEAT TRACK, RH REAR INNER
main72157-05050-C0i200811-201505
BLACK,TRIM2#
main72157-05050-C0i201111-201505
BLACK,TRIM1#,2#,4#
main72157-05050-C1i201505
EU BLACK,TRIM2#
main72157-05050-C1i201505
EU BLACK,TRIM1#,2#,4#
main72157-05050-E0i200811-201111
GREGE,TRIM4#
73146COVER, FRONT SEAT BELT INNER ANCHOR BRACKET, RH
main73146-05010-C0i201111-201505
WITH(WIND SHIELD GLASS DEICER)&CRUISE CONTROL-WITH(W/RADAR CRUISE)&SEAT COVER MATERIAL-LEATHER(PERFORATED),BLACK,TRIM1#,2#,4#
main73146-05010-C0i200811-201505
BLACK,TRIM2#
main73146-05010-C0i200811-201111
PREMIUM GRADE&WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
main73146-05010-C0i200811-201111
PREMIUM GRADE&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
main73146-05010-C0i200811-201111
SOL-PLUS GRADE & LUXURY PACKAGE&WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
main73146-05010-C0i200811-201111
SOL-PLUS GRADE & LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
main73146-05010-C0i201111-201505
WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-LEATHER(PERFORATED),BLACK,TRIM1#,2#,4#
main73146-05010-C0i201111-201505
CRUISE CONTROL-WITH(W/RADAR CRUISE)&SEAT COVER MATERIAL-LEATHER(PERFORATED),BLACK,TRIM1#,2#,4#
main73146-05010-C0i201111-201505
SEAT COVER MATERIAL-LEATHER(PERFORATED),BLACK,TRIM1#,2#,4#
main73146-05010-C0i201111-201505
BLACK,TRIM1#,2#,4#
main73146-05010-C0i201111-201505
BLACK,TRIM2#,4#
main73146-05010-C0i201111-201505
SOL-PLUS GRADE(NICKEL)&WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-LEATHER(PERFORATED),BLACK,TRIM1#,2#,4#
main73146-05010-C0i201111-201505
SOL-PLUS GRADE(NICKEL)&SEAT COVER MATERIAL-LEATHER(PERFORATED),BLACK,TRIM1#,2#,4#
main73146-05010-C0i201111-201505
SOL-PLUS GRADE(SILVER)&SEAT COVER MATERIAL-LEATHER(PERFORATED),BLACK,TRIM1#,4#
main73146-05010-E0i200811-201111
GREGE,TRIM4#
main73146-05010-E0i200811-201111
PREMIUM GRADE&WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4#
main73146-05010-E0i200811-201111
PREMIUM GRADE&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4#
main73146-05010-E0i200811-201111
SOL-PLUS GRADE & LUXURY PACKAGE&WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4#
main73146-05010-E0i200811-201111
SOL-PLUS GRADE & LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4#
73910AAIRBAG ASSY, FRONT SEAT, RH
main73910-05050i¥31,800200811-201306
sub73910-05051¥31,800
main73910-05051i¥31,800201307-201505
main73910-05060i¥26,500201505
8202
82666MHOLDER, CONNECTOR
main82666-58030i¥1,550200811-201505
8401
85820YMOTOR ASSY, POWER SEAT
85864CONTROLLER, SEAT CLIMATE CONTROL,RH
main85864-05010¥8,500
main85864-05020¥5,900
87510KHEATER ASSY, FRONT SEAT CUSHION, RH
87510MHEATER ASSY, FRONT SEATBACK, RH
3864205010SCREW (FOR WINCH CONTROL SWITCH)
main38642-05010
3864205020SCREW (FOR WINCH CONTROL SWITCH)
main38642-05020¥90
7270202060BRACKET SUB-ASSY, REAR SEATBACK STRIKER
main72702-02060¥240
90119W0180
main90119-W0180¥100
90177W0006
main90177-W0006¥120

34 parts on this diagram · 13 diagrams in section

FRONT SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
