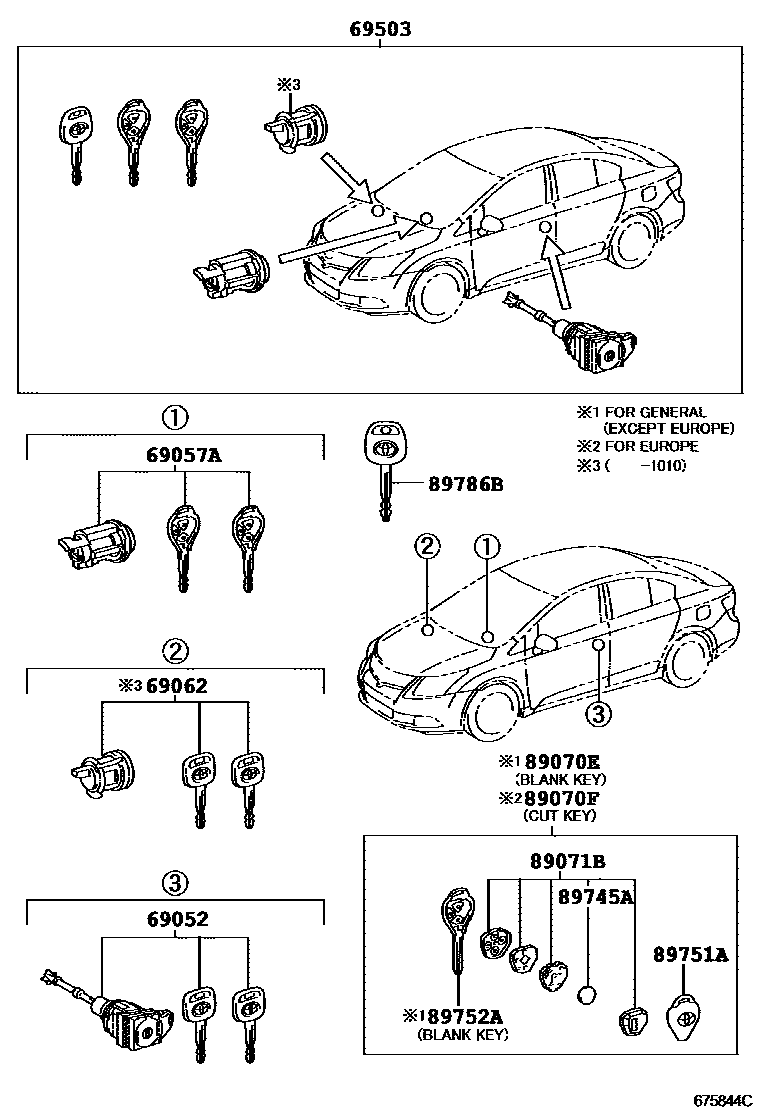

LOCK CYLINDER SET
69052CYLINDER & KEY SET, DOOR LOCK, LH
WIRELESS DOOR LOCK-WITH
BELGIUM SPEC&BASE PACKAGE&LIGHT CONTROL SYSTEM-WITHOUT
BASE PACKAGE&LIGHT CONTROL SYSTEM-WITHOUT
69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK
main69057-05091iADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)201006-201111
WIRELESS DOOR LOCK-WITH
BELGIUM SPEC&BASE PACKAGE&LIGHT CONTROL SYSTEM-WITHOUT
NORWAY,SWEDEN,FINLAND,DENMARK SPEC&WIRELESS DOOR LOCK-WITH
LATVIA SPEC&WIRELESS DOOR LOCK-WITH
LITHUANIA SPEC&WIRELESS DOOR LOCK-WITH
ESTONIA SPEC&WIRELESS DOOR LOCK-WITH
ENGLAND SPEC&BASE PACKAGE&LIGHT CONTROL SYSTEM-WITHOUT
NORDIC SPEC&BASE PACKAGE&LIGHT CONTROL SYSTEM-WITHOUT
BASE PACKAGE&LIGHT CONTROL SYSTEM-WITHOUT
BASE PACKAGE&LIGHT CONTROL SYSTEM-WITHOUT&OUTSIDE REAR VIEW MIRROR-MANUAL RETRACTABLE
69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
WIRELESS DOOR LOCK-WITH(SMART ENTRY)
BASE PACKAGE&LIGHT CONTROL SYSTEM-WITHOUT&OUTSIDE REAR VIEW MIRROR-MANUAL RETRACTABLE
WIRELESS DOOR LOCK-WITH
ENGLAND SPEC&BASE PACKAGE&LIGHT CONTROL SYSTEM-WITHOUT
69503CYLINDER SET, LOCK
WIRELESS DOOR LOCK-WITH(SMART ENTRY)
NORWAY,SWEDEN,FINLAND,DENMARK SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY)
LATVIA SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY)
LITHUANIA SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY)
ESTONIA SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY)
NORDIC SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY)
WIRELESS DOOR LOCK-WITH(SMART ENTRY)
WIRELESS DOOR LOCK-WITH
BELGIUM SPEC&BASE PACKAGE&LIGHT CONTROL SYSTEM-WITHOUT
BASE PACKAGE&LIGHT CONTROL SYSTEM-WITHOUT
WIRELESS DOOR LOCK-WITH
BASE PACKAGE&LIGHT CONTROL SYSTEM-WITHOUT&OUTSIDE REAR VIEW MIRROR-MANUAL RETRACTABLE
ENGLAND SPEC&BASE PACKAGE&LIGHT CONTROL SYSTEM-WITHOUT
89070ETRANSMITTER ASSY, DOOR CONTROL
BLANK KEY,*278
WIRELESS DOOR LOCK-WITH(SMART ENTRY),BLANK KEY,*278
main89070-05081iADT270..RHD..(E,F);ADT270,ZRT272..LHD..E..(DCR,HTWC);ADT271,ZRT27#..(E,G,V)..(DCR,DCRL,HTWVM)201006-201111
BLANK KEY,*278
main89070-05081iADT270..RHD..(E,F);ADT270,ZRT272..LHD..E..(DCR,HTWC);ADT271,ZRT27#..(E,G,V)..(DCR,DCRL,HTWVM)201006-201111
WIRELESS DOOR LOCK-WITH(SMART ENTRY),BLANK KEY,*278
89070FTRANSMITTER ASSY, DOOR CONTROL (CUT KEY)
*279
WIRELESS DOOR LOCK-WITH(SMART ENTRY),*279
WIRELESS DOOR LOCK-WITH(SMART ENTRY),*279
*279
NORWAY,SWEDEN,FINLAND,DENMARK SPEC&WIRELESS DOOR LOCK-WITH
BELGIUM SPEC&BASE PACKAGE&WIRELESS DOOR LOCK-WITH&LIGHT CONTROL SYSTEM-WITHOUT
LATVIA SPEC&WIRELESS DOOR LOCK-WITH
LITHUANIA SPEC&WIRELESS DOOR LOCK-WITH
ESTONIA SPEC&WIRELESS DOOR LOCK-WITH
ENGLAND SPEC&BASE PACKAGE&WIRELESS DOOR LOCK-WITH&LIGHT CONTROL SYSTEM-WITHOUT
WIRELESS DOOR LOCK-WITH
ESTONIA SPEC&WIRELESS DOOR LOCK-WITH
WIRELESS DOOR LOCK-WITH
BELGIUM SPEC&BASE PACKAGE&WIRELESS DOOR LOCK-WITH&LIGHT CONTROL SYSTEM-WITHOUT
NORWAY,SWEDEN,FINLAND,DENMARK SPEC&WIRELESS DOOR LOCK-WITH
LATVIA SPEC&WIRELESS DOOR LOCK-WITH
LITHUANIA SPEC&WIRELESS DOOR LOCK-WITH
ENGLAND SPEC&BASE PACKAGE&WIRELESS DOOR LOCK-WITH&LIGHT CONTROL SYSTEM-WITHOUT
NORDIC SPEC&BASE PACKAGE&WIRELESS DOOR LOCK-WITH&LIGHT CONTROL SYSTEM-WITHOUT
BASE PACKAGE&WIRELESS DOOR LOCK-WITH&LIGHT CONTROL SYSTEM-WITHOUT
BASE PACKAGE&WIRELESS DOOR LOCK-WITH&LIGHT CONTROL SYSTEM-WITHOUT&OUTSIDE REAR VIEW MIRROR-MANUAL RETRACTABLE
89071BMODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
89745ABATTERY, TRANSMITTER
CR2016,BASE PACKAGE&WIRELESS DOOR LOCK-WITH&LIGHT CONTROL SYSTEM-WITHOUT&OUTSIDE REAR VIEW MIRROR-MANUAL RETRACTABLE
CR2016,WIRELESS DOOR LOCK-WITH(SMART ENTRY)
CR2016
CR2016,NORDIC SPEC&BASE PACKAGE&WIRELESS DOOR LOCK-WITH&LIGHT CONTROL SYSTEM-WITHOUT
CR2016,NORDIC SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY)
CR2016,BASE PACKAGE&WIRELESS DOOR LOCK-WITH&LIGHT CONTROL SYSTEM-WITHOUT
CR2016,LITHUANIA SPEC&WIRELESS DOOR LOCK-WITH
CR2016,BELGIUM SPEC&BASE PACKAGE&WIRELESS DOOR LOCK-WITH&LIGHT CONTROL SYSTEM-WITHOUT
CR2016,NORWAY,SWEDEN,FINLAND,DENMARK SPEC&WIRELESS DOOR LOCK-WITH
CR2016,LATVIA SPEC&WIRELESS DOOR LOCK-WITH
CR2016,ESTONIA SPEC&WIRELESS DOOR LOCK-WITH
CR2016,ENGLAND SPEC&BASE PACKAGE&WIRELESS DOOR LOCK-WITH&LIGHT CONTROL SYSTEM-WITHOUT
CR2016,WIRELESS DOOR LOCK-WITH
89751ACOVER, TRANSMITTER HOUSING
main89751-05010iADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)¥780200811-201111
89752ACASE, TRANSMITTER HOUSING
BLANK KEY,*278
WIRELESS DOOR LOCK-WITH(SMART ENTRY),BLANK KEY,*278
BLANK KEY,*278
WIRELESS DOOR LOCK-WITH(SMART ENTRY),BLANK KEY,*278
89786BTRANSMITTER, TRANSPONDER KEY SUB
main89786-02200iADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)201006-201111
11 parts on this diagram · 7 diagrams in section
