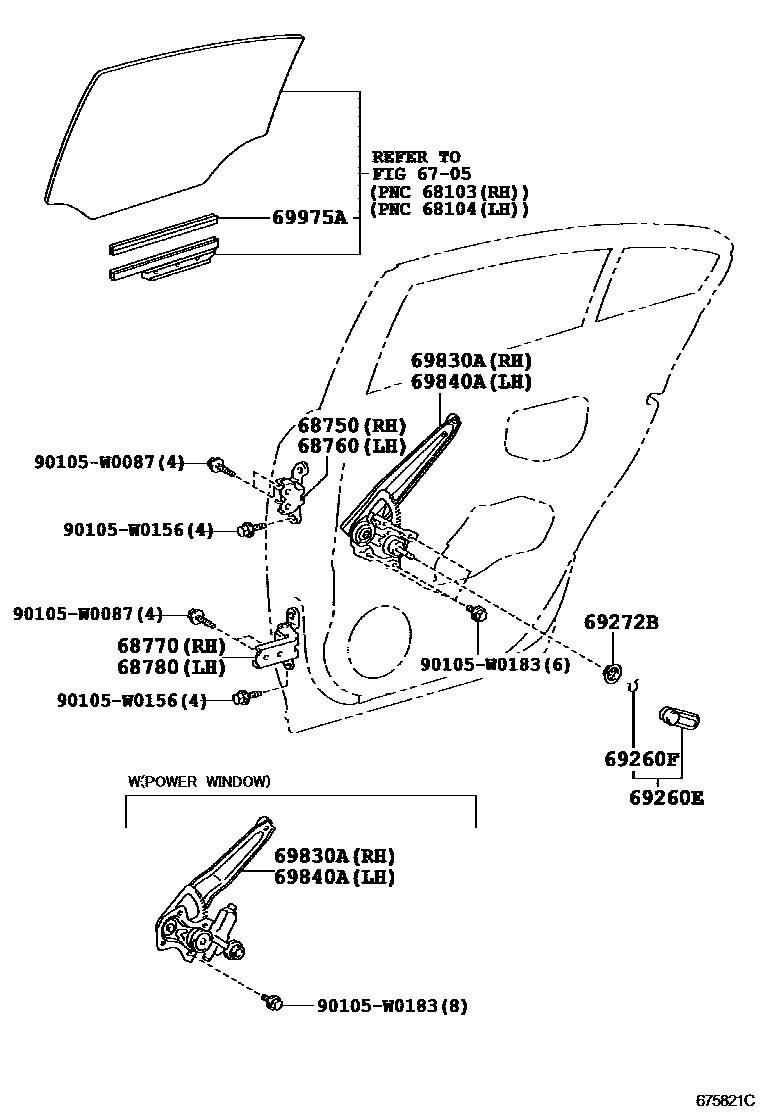

REAR DOOR WINDOW REGULATOR & HINGE

6705

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-0H010iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-0H010iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-0H010iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-0H010iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

69260EHANDLE ASSY, REAR DOOR WINDOW REGULATOR

main69260-02020-C0iADT270,ZRT270,271..N200811-201505

BLACK,TRIM2#

sub69260-02020

sub69260-02021

main69260-02020-C1iWWT270,ZRT270,271..N201505-201512

EU BLACK,TRIM2#

sub69260-02020

sub69260-02021

main69260-02021-C1iWWT270,ZRT270,271..N201601

EU BLACK,TRIM2#

69260FRING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)

main90080-52100iADT270,ZRT270,271..N200811-201505

69272BPLATE, REAR DOOR REGULATOR INSIDE HANDLE

main69268-02022iADT270,ZRT270,271..N200811-201505

69830AREGULATOR ASSY, REAR DOOR WINDOW, RH

main69830-02210iADT270,ZRT270,271..N200811-201505

main69830-05130iADT270..RHD..(E,F);ADT270,ZRT272..LHD..E..(DCR,HTWC);ADT271,ZRT27#..(E,G,V)..(DCR,DCRL,HTWVM)200811-201401

sub69830-05131

main69830-05131iWWT27#,ZRT27#..E,G201402-201505

69840AREGULATOR ASSY, REAR DOOR WINDOW, LH

main69840-02210iWWT270,ZRT270,271..N200811-201505

main69840-05130iADT270..RHD..(E,F);ADT270,ZRT272..LHD..E..(DCR,HTWC);ADT271,ZRT27#..(E,G,V)..(DCR,DCRL,HTWVM)200811-201401

sub69840-05131

main69840-05131iADT27#,ZRT27#..E,G201402-201505

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-52010iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

90105W0087

main90105-W0087

90105W0156

main90105-W0156

90105W0183

main90105-W0183

14 parts on this diagram · 1 diagram in section
