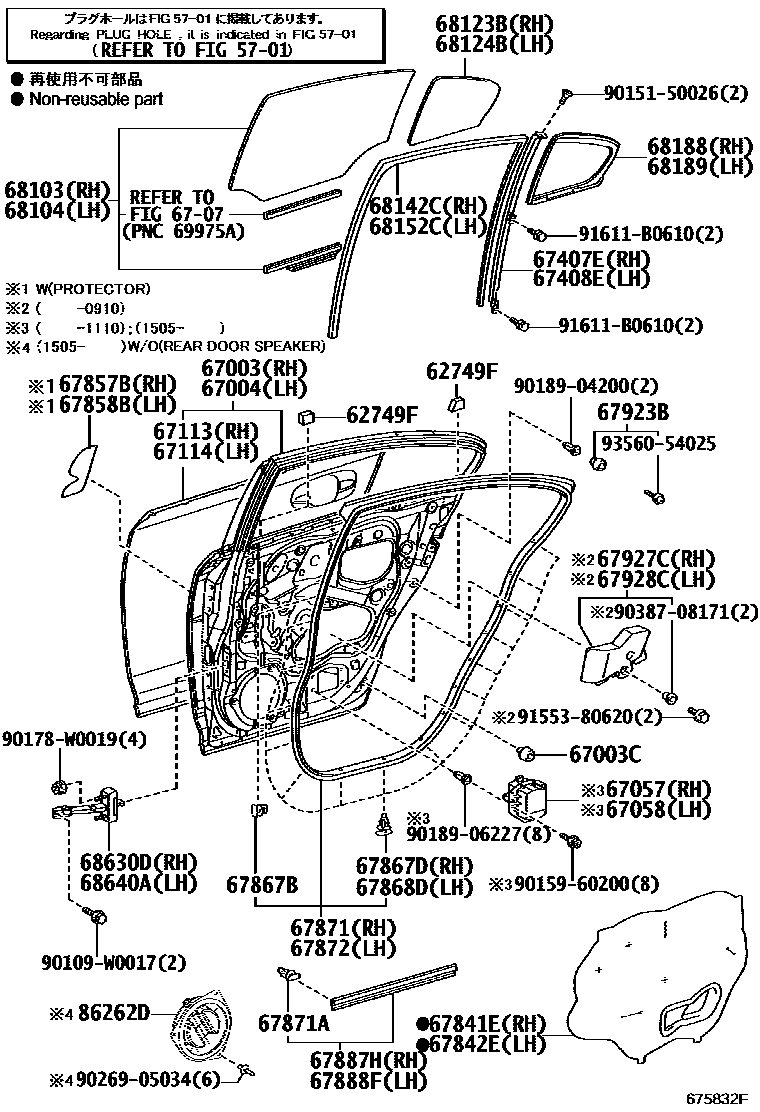

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR PANEL 0003 1DOOR TRIM

5701

62749FSEAL, REAR DOOR FRAME

main67837-02020iADT27#,ZRT27#201309-201505

FRONT

main69759-05040iADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)200811-201505

REAR

main69759-12110iADT27#,ZRT27#200811-201308

FRONT

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-05040iADT27#,ZRT27#..SED200811-201203

sub67003-05041

main67003-05041iADT27#,ZRT27#..SED201203-201505

sub67003-05170

sub67057-05010

sub90159-60200

sub90189-06227

main67003-05160iADT27#,ZRT27#..WG200811-201203

sub67003-05161

main67003-05161iADT27#,ZRT27#..WG201203-201505

sub67003-05180

sub67057-05010

sub90159-60200

sub90189-06227

main67003-05170iWWT27#,ZRT27#..SED201505

main67003-05180iWWT27#,ZRT27#..WG201505

67003CCUSHION, REAR DOOR PANEL

main90541-09124iWWT27#,ZRT27#200811-201505

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-05040iADT270..RHD..SED;ADT271,ZRT27#..SED..(DCR,DCRL,HTWVM);ADT270,ZRT272..LHD..SED..(E,N)..(DCR,HTWC)200811-201203

sub67004-05041

main67004-05041iADT27#,ZRT27#..SED201203-201505

sub67004-05170

sub67057-05010

sub90159-60200

sub90189-06227

main67004-05160iADT27#,ZRT27#..WG200811-201203

sub67004-05161

main67004-05161iADT27#,ZRT27#..WG201203-201505

sub67004-05180

sub67057-05010

sub90159-60200

sub90189-06227

main67004-05170iWWT27#,ZRT27#..SED201505

main67004-05180iWWT27#,ZRT27#..WG201505

67057REINFORCE SUB-ASSY, REAR DOOR INSIDE PANEL, RH

main67057-05010iWWT27#,ZRT27#200811-201110

67058REINFORCE SUB-ASSY, REAR DOOR INSIDE PANEL, LH

main67057-05010iADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)200811-201110

6707

67113PANEL, REAR DOOR, OUTER RH

main67113-05060iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

67114PANEL, REAR DOOR, OUTER LH

main67114-05060iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH

main67407-20330iWWT27#,ZRT27#..SED200811-201505

main67407-20340iADT27#,ZRT27#..WG200811-201505

67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH

main67408-20320iADT27#,ZRT27#..SED200811-201505

main67408-20330iWWT27#,ZRT27#..WG200811-201505

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-05030iADT27#,ZRT27#200811-201505

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67842-05010iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

67857BPROTECTOR, REAR DOOR PANEL, RH

67858BPROTECTOR, REAR DOOR PANEL, LH

67867BCLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)

main90467-04034iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67867-12150iADT27#,ZRT27#200811-201505

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67867-12150iADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)200811-201505

67871WEATHERSTRIP, REAR DOOR, RH

main67871-05110iWWT27#,ZRT27#..SED200811-201505

main67871-05120iADT27#,ZRT27#..WG200811-201505

67871ARETAINER(FOR REAR DOOR WEATHERSTRIP)

main67867-12150iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

67872WEATHERSTRIP, REAR DOOR, LH

main67872-05110iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

main67872-05120iWWT27#,ZRT27#..WG200811-201505

67887HWEATHERSTRIP, REAR DOOR, NO.2 RH

main67887-05020iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

67888FWEATHERSTRIP, REAR DOOR, NO.2 LH

main67888-05020iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

67923BCUSHION, REAR DOOR STIFFENER, NO.1

main67923-24030iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

67927CCUSHION, SEPARATOR DOOR STIFFENER, NO.1

main67927-05020iADT27#,ZRT27#200811-200903

main67927-05021iADT27#,ZRT27#200904-200910

67928CCUSHION, SEPARATOR DOOR STIFFENER, NO.2

main67928-05020iADT27#,ZRT27#200811-200903

main67928-05021iADT27#,ZRT27#200904-200910

68103GLASS SUB-ASSY, REAR DOOR, RH

main68103-05140iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

*TEM,T=3.1,GREEN

main68103-05140iZRT272..HTWC;WWT270,ZRT270,271..SED..N201505

REAR SIDE GLASS-GREEN

main68103-05150iWWT27#,ZRT27#..WG..E201505

REAR SIDE GLASS-GREEN

main68103-05150iADT27#,ZRT27#..WG200811-201505

*TEM,T=3.1,GREEN

main68103-05160iADT27#,ZRT27#..WG..E201111-201505

*TEM,T=3.1,DARK GRAY

main68103-05160iADT27#,ZRT271,272..WG..G201111-201505

*TEM,T=3.1,DARK GRAY,REAR SIDE GLASS-PRIVACY

main68103-05160iWWT27#,ZRT27#..WG..(E,G)201505

main68103-05190iWWT27#,ZRT27#..SED..(E,G)..(DCR,HTWVM)201505

REAR SIDE GLASS-PRIVACY

68104GLASS SUB-ASSY, REAR DOOR, LH

main68104-05140iADT27#,ZRT27#..SED200811-201505

*TEM,T=3.1,GREEN

main68104-05140iZRT272..HTWC;WWT270,ZRT270,271..SED..N201505

REAR SIDE GLASS-GREEN

main68104-05150iADT27#,ZRT27#..WG..(E,N)200811-201505

*TEM,T=3.1,GREEN

main68104-05150iWWT27#,ZRT27#..WG..E201505

REAR SIDE GLASS-GREEN

main68104-05160iADT27#,ZRT271,272..WG..G201111-201505

*TEM,T=3.1,DARK GRAY

main68104-05160iWWT27#,ZRT27#..WG..(E,G)201505

main68104-05160iADT27#,ZRT271,272..WG..G201111-201505

*TEM,T=3.1,DARK GRAY,REAR SIDE GLASS-PRIVACY

main68104-05180iZRT272..HTWC201505

REAR SIDE GLASS-PRIVACY

68123BGLASS, REAR DOOR QUARTER WINDOW, RH

main68123-05090iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

*TEM,T=3.1,GREEN

main68123-05090iZRT272..HTWC;WWT270,ZRT270,271..SED..N201505

REAR SIDE GLASS-GREEN

main68123-05100iADT27#,ZRT27#..WG200811-201505

*TEM,T=3.1,GREEN

main68123-05100iWWT270,ZRT270,271..WG..N201505

REAR SIDE GLASS-GREEN

main68123-05110iADT27#,ZRT271,272..WG..G201111-201505

*TEM,T=3.1,DARK GRAY

main68123-05110iWWT27#,ZRT27#..WG..(E,G)201505

main68123-05110iADT27#,ZRT271,272..WG..G201111-201505

*TEM,T=3.1,DARK GRAY,REAR SIDE GLASS-PRIVACY

main68123-05130iWWT27#,ZRT27#..SED..(E,G)..(DCR,HTWVM)201505

REAR SIDE GLASS-PRIVACY

68124BGLASS, REAR DOOR QUARTER WINDOW, LH

main68124-05090iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

*TEM,T=3.1,GREEN

main68124-05090iWWT27#,ZRT27#..SED..E..(DCR,HTWVM)201505

REAR SIDE GLASS-GREEN

main68124-05100iWWT270,ZRT270,271..WG..N201505

REAR SIDE GLASS-GREEN

main68124-05100iADT27#,ZRT27#..WG200811-201505

*TEM,T=3.1,GREEN

main68124-05110iADT27#,ZRT271,272..WG..G201111-201505

*TEM,T=3.1,DARK GRAY

main68124-05110iADT27#,ZRT271,272..WG..G201111-201505

*TEM,T=3.1,DARK GRAY,REAR SIDE GLASS-PRIVACY

main68124-05110iWWT27#,ZRT27#..WG..(E,G)201505

main68124-05140iWWT27#,ZRT27#..SED..(E,G)..(DCR,HTWVM)201505

REAR SIDE GLASS-PRIVACY

68142CRUN, REAR DOOR GLASS, RH

main68142-05100iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

main68142-05110iWWT27#,ZRT27#..WG200811-201505

68152CRUN, REAR DOOR GLASS, LH

main68152-05100iADT270..RHD..SED;ADT271,ZRT27#..SED..(DCR,DCRL,HTWVM);ADT270,ZRT272..LHD..SED..(E,N)..(DCR,HTWC)200811-201505

main68152-05110iWWT27#,ZRT27#..WG200811-201505

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-05060iADT27#,ZRT27#..SED200811-201505

main68188-05070iWWT27#,ZRT27#..WG200811-201505

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-05060iWWT27#,ZRT27#..SED200811-201505

main68189-05070iADT27#,ZRT27#..WG200811-201505

68630DCHECK ASSY, REAR DOOR, RH

main68630-05050iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

68640ACHECK ASSY, REAR DOOR, LH

main68630-05050iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

86262DCOVER, REAR DOOR SPEAKER

90109W0017

main90109-W0017

9015150026

main90151-50026

9015960200

main90159-60200

90178W0019

main90178-W0019

9018904200

main90189-04200

9018906227

main90189-06227

9026905034

main90269-05034

9038708171

main90387-08171

9155380620

main91553-80620

91611B0610

main91611-B0610

9356054025

main93560-54025

49 parts on this diagram · 3 diagrams in section
