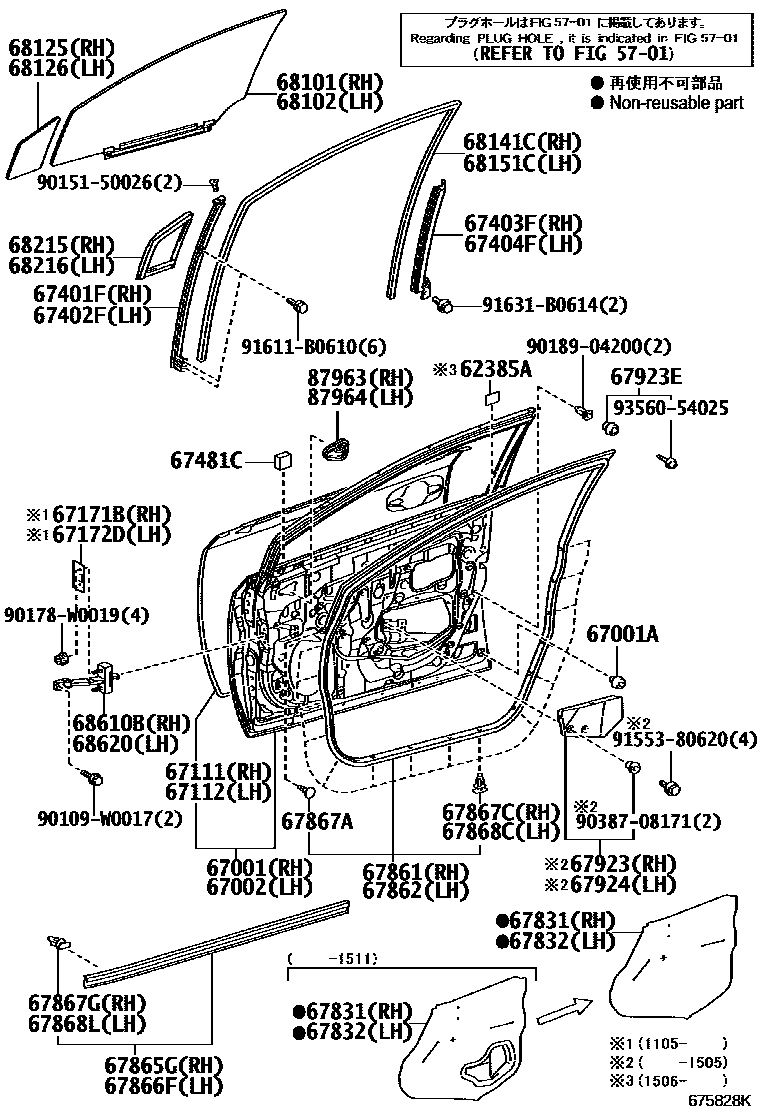

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

5701

62385ASEAL, FRONT DOOR WINDOW, NO.1

main67745-05030×2iWWT27#,ZRT27#201506

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-05070iADT270..LHD..F;ZRT272..RHD..HTWC200811-201104

main67001-05071iADT27#,ZRT27#201502-201505

sub90333-W0001

main67001-05081iWWT27#,ZRT27#201505

67001ACUSHION, FRONT DOOR PANEL

main90541-09124×2iADT270..LHD..F;ZRT272..RHD..HTWC200811-201104

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-05070iADT27#,ZRT27#201111-201501

main67002-05071iADT27#,ZRT27#201502-201505

sub90333-W0001

main67002-05081iWWT27#,ZRT27#201505

67111PANEL, FRONT DOOR, OUTER RH

main67111-05060iADT27#,ZRT27#201111-201505

67112PANEL, FRONT DOOR, OUTER LH

main67112-05060iWWT27#,ZRT27#201505

67171BREINFORCEMENT, FRONT DOOR HINGE, RH

main67171-05030iADT27#,ZRT27#201111-201505

67172DREINFORCEMENT, FRONT DOOR HINGE, LH

main67172-05030iWWT27#,ZRT27#201505

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-20280iWWT27#,ZRT27#201505

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-20270iADT270..LHD..F;ZRT272..RHD..HTWC200811-201104

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-05040iADT270..LHD..F;ZRT272..RHD..HTWC200811-201104

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-05040iADT27#,ZRT27#200811-201005

main67404-05050iADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)201006-201111

67481CSEAL, FRONT DOOR FRONT LOWER FRAME

main67481-05040×2iADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)200811-201111

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-05020iADT270..LHD..F;ZRT272..RHD..HTWC200811-201104

main67831-05021iWWT27#,ZRT27#201511

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-05010iADT270..LHD..F;ZRT272..RHD..HTWC200811-201104

main67832-05011iWWT27#,ZRT27#201511

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-05060iADT27#,ZRT27#201111-201505

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-05060iADT27#,ZRT27#201111-201505

67865GWEATHERSTRIP, FRONT DOOR, NO.3 RH

main67865-05030iADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)200811-201111

67866FWEATHERSTRIP, FRONT DOOR, NO.3 LH

main67866-05030iADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)200811-201111

67867ACLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)

main67868-30030×2iADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)200811-201111

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-12150×15iADT27#,ZRT27#201111-201505

main67868-02020×15iADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)200811-201111

67867GRETAINER, DOOR WEATHERSTRIP, RH

main67867-12150×7iADT27#,ZRT27#201111-201505

main67868-02020×7iADT270..LHD..F;ZRT272..RHD..HTWC200811-201104

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-12150×15iWWT27#,ZRT27#201505

67868LRETAINER, DOOR WEATHERSTRIP, LH

main67867-12150×7iWWT27#,ZRT27#201505

67923CUSHION, FRONT DOOR STIFFENER, NO.1

main67923-05040iADT27#,ZRT27#200811-200903

main67923-05041iADT270..LHD..F;ZRT272..RHD..HTWC200904-201104

67923ECUSHION, FRONT DOOR STIFFENER, NO.1

main67923-24030×2iADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)200811-201111

67924CUSHION, FRONT DOOR STIFFENER, NO.2

main67924-05050iADT27#,ZRT27#200811-200903

main67924-05051iADT27#,ZRT27#201111-201505

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-05050iADT27#,ZRT27#201111-201505

*TEM,T=5.0,GREEN

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-05050iADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)200811-201111

*TEM,T=5.0,GREEN

68125GLASS, FRONT DOOR FIX WINDOW, RH

main68125-05010iADT27#,ZRT27#201111-201505

*TEM,T=5.0,GREEN

68126GLASS, FRONT DOOR FIX WINDOW, LH

main68126-05010iADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)200811-201111

*TEM,T=5.0,GREEN

68141CRUN, FRONT DOOR GLASS, RH

main68141-05040iADT270..LHD..F;ZRT272..RHD..HTWC200811-201104

68151CRUN, FRONT DOOR GLASS, LH

main68151-05040iADT27#,ZRT27#201111-201505

68215WEATHERSTRIP, FRONT DOOR FIX WINDOW, RH

main68215-05010iADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)200811-201111

68216WEATHERSTRIP, FRONT DOOR FIX WINDOW, LH

main68216-05010iADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)200811-201111

68610BCHECK ASSY, FRONT DOOR, RH

main68610-05050iADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)200811-201111

main68610-05051iWWT27#,ZRT27#201505-201703

main68610-05052iWWT27#,ZRT27#201704

68620CHECK ASSY, FRONT DOOR, LH

main68610-05050iADT27#,ZRT27#201111-201203

main68610-05051iWWT27#,ZRT27#201505-201703

main68610-05052iWWT27#,ZRT27#201704

87963COVER, OUTER MIRROR INSTALL HOLE, RH

main87963-05010iADT270..LHD..F;ZRT272..RHD..HTWC200811-201104

87964COVER, OUTER MIRROR INSTALL HOLE, LH

main87964-05010iWWT27#,ZRT27#201505

90109W0017

main90109-W0017

9015150026

main90151-50026

90178W0019

main90178-W0019

9018904200

main90189-04200

9038708171

main90387-08171

9155380620

main91553-80620

91611B0610

main91611-B0610

91631B0614

main91631-B0614

9356054025

main93560-54025

49 parts on this diagram · 2 diagrams in section
