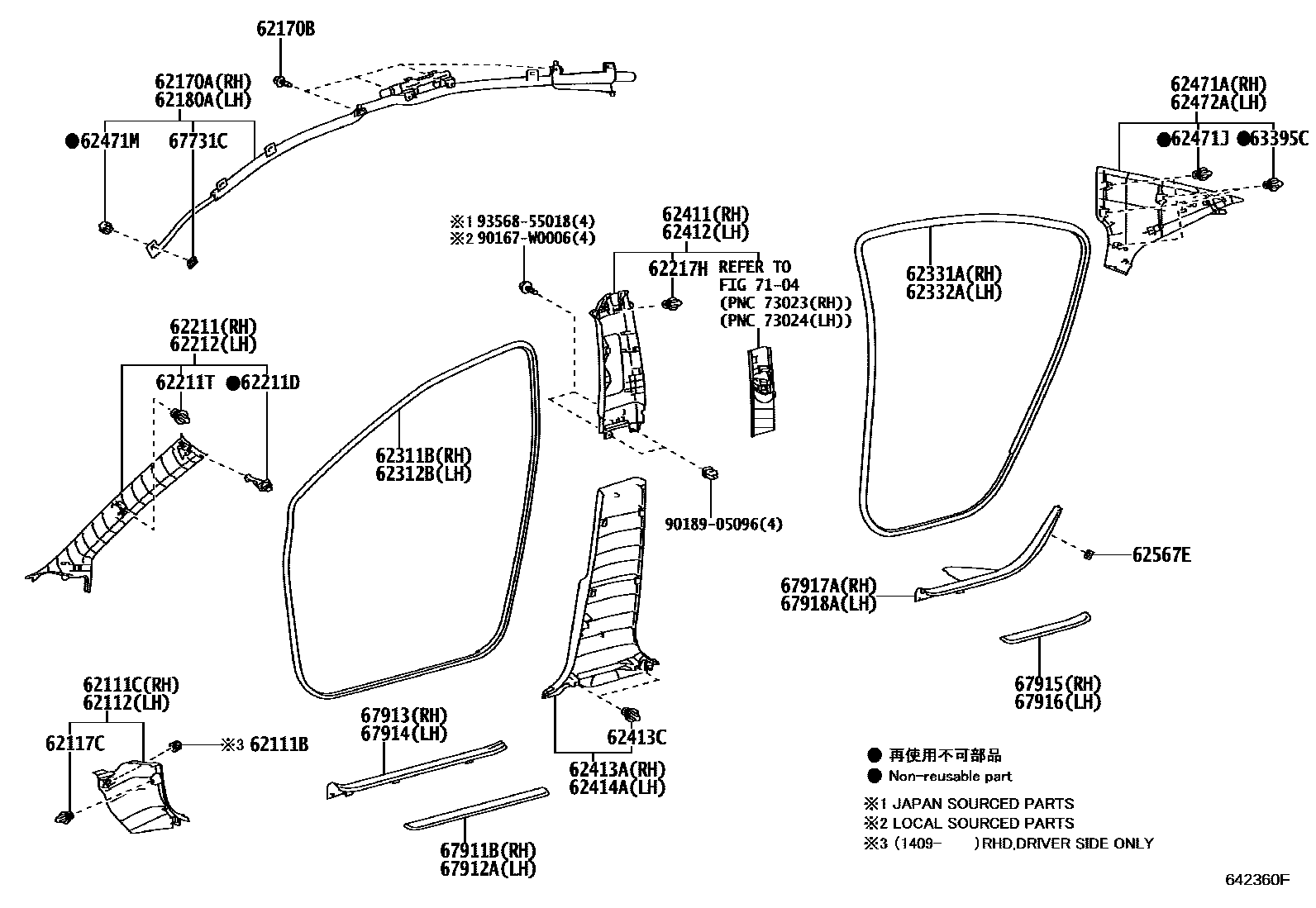

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

0001 1 0002 1

62111BCLIP(FOR COWL SIDE TRIM)

main90467-06147iADT27#,ZRT27#..RHD201409-201505

62111CBOARD, COWL SIDE TRIM, RH

main62111-05050-C0iADT27#,ZRT270,271..LHD..(N,V);ADT271,ZRT270,272..LHD..WG..E200811-201505

BLACK,TRIM2#

main62111-05050-C0iADT270,ZRT270,271..LHD..N201111-201505

BLACK,TRIM1#,2#,4#

main62111-05050-C0iADT270,ZRT271..LHD..E;ADT271,ZRT272..LHD..G;ADT271,ZRT270,272..LHD..SED..E200811-201111

BLACK,TRIM2#,40

main62111-05050-C1iZRT272..HTWC;ZRT272..LHD..G;WWT27#,ZRT270,271..LHD..(E,G)201505

EU BLACK,TRIM1#,4#

main62111-05050-C1iWWT270,ZRT270,271..LHD..N201505

EU BLACK,TRIM1#,2#,4#

main62111-05050-C1iWWT270,ZRT270,271..LHD..N201505

EU BLACK,TRIM2#

main62111-05050-E0iADT271..LHD..V;ADT271,ZRT270,272..LHD..WG..E200811-201111

GREGE,TRIM40

main62111-05050-E0iADT270,ZRT271..LHD..E;ADT271,ZRT272..LHD..G;ADT271,ZRT270,272..LHD..SED..E200811-201111

GREGE,TRIM4#

main62111-05060-C0iADT271..RHD..WG..E;ZRT271..RHD..WG..CVT..E;ADT270,ZRT271..RHD..(F,N);ADT271,ZRT270..RHD..(E,N,V)..(DCRL,HTWVM)200811-201111

BLACK,TRIM2#,40

main62111-05060-C0iADT271..RHD..WG..E;ZRT271..RHD..WG..CVT..E;ADT270,ZRT271..RHD..(F,N);ADT271,ZRT270..RHD..(E,N,V)..(DCRL,HTWVM)200811-201409

BLACK,TRIM2#

main62111-05060-C0iADT270,ZRT270,271..RHD..N201111-201409

BLACK,TRIM1#,2#,4#

main62111-05060-E0iZRT272..RHD..HTWC200811-201111

GREGE,TRIM40

main62111-05060-E0iADT271..RHD..G;ZRT271..RHD..WG..6F..E;ADT271,ZRT271..RHD..SED..E;ADT270,ZRT272..RHD..E..(DCR,HTWVM)200811-201111

GREGE,TRIM4#

main62111-05061-C0iZRT270..RHD..N;ADT27#,ZRT271,272..RHD..(E,N)201409-201505

BLACK,TRIM1#,2#,4#

main62111-05061-C0iZRT270..RHD..E;ADT27#,ZRT271,272..RHD..G201409-201505

BLACK,TRIM2#

main62111-05061-C1iZRT272..RHD..G;WWT27#,ZRT270,271..RHD..(E,G)201505

EU BLACK,TRIM2#

main62111-05061-C1iZRT272..RHD..E201505

EU BLACK,TRIM1#,4#

main62111-05061-C1iZRT272..RHD..E201505

EU BLACK,TRIM1#,2#,4#

62112BOARD, COWL SIDE TRIM, LH

main62112-05050-C0iZRT272..RHD..HTWC200811-201505

BLACK,TRIM2#

main62112-05050-C0iZRT272..RHD..HTWC200811-201111

BLACK,TRIM2#,40

main62112-05050-C0iADT270,ZRT270,271..N201111-201505

BLACK,TRIM1#,2#,4#

main62112-05050-C1iZRT272..G;ZRT272..HTWC;WWT27#,ZRT270,271..E,G201505

EU BLACK,TRIM1#,2#,4#

main62112-05050-C1iZRT272..E..HTWVM201505

EU BLACK,TRIM1#,4#

main62112-05050-C1iZRT272..E..HTWVM201505

EU BLACK,TRIM2#

main62112-05050-E0iADT270..E;ADT271,ZRT272..G;ZRT271..WG..6F..E;ZRT272..RHD..HTWVM;ADT271,ZRT271..SED..E;ZRT271..LHD..WG..CVT..E;ZRT270,272..LHD..SED..E200811-201111

GREGE,TRIM40

main62112-05050-E0iZRT272..RHD..HTWC200811-201111

GREGE,TRIM4#

62117CCLIP, NO.2(FOR COWL SIDE TRIM)

main90467-W0005iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-05090iZRT272..LHD..HTWC200811-201111

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE)

sub62170-05091

main62170-05090iADT27#,ZRT27#..SED201111-201304

sub62170-05091

main62170-05091iADT27#,ZRT27#..SED201305-201505

main62170-05100iADT27#,ZRT27#..WG200811-201304

sub62170-05101

main62170-05101iADT27#,ZRT27#..WG201305-201505

main62170-05110iWWT27#,ZRT27#..SED201505

main62170-05120iWWT27#,ZRT27#..WG201505

62170BBOLT, W/WASHER

main90119-W0078iADT270..LHD..F200811-201111

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE)

main90119-W0078iADT27#,ZRT27#201111-201505

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-05090iADT270..RHD..SED;ADT270..LHD..SED..(E,N);ADT271,ZRT27#..SED..(DCR,DCRL,HTWVM)200811-201111

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE)

sub62180-05091

main62180-05090iADT27#,ZRT27#..SED201111-201304

sub62180-05091

main62180-05091iADT27#,ZRT27#..SED201305-201505

main62180-05100iADT27#,ZRT27#..WG200811-201304

sub62180-05101

main62180-05101iADT27#,ZRT27#..WG201305-201505

main62180-05110iWWT27#,ZRT27#..SED201505

main62180-05120iWWT27#,ZRT27#..WG201505

62211GARNISH, FRONT PILLAR, RH

main62211-05040-B2iZRT272..HTWC200811-200908

LT.GRAY,TRIM2#

sub62211-05900

main62211-05040-E2iZRT272..HTWC200811-200908

GREGE,TRIM4#

sub62211-05900

main62211-05050-B2iZRT272..HTWC200811-200908

LT.GRAY,TRIM2#

sub62211-05901

main62211-05050-B2iADT27#,ZRT27#..DCR,DCRL,HTWVM200811-200908

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),LT.GRAY,TRIM2#

sub62211-05901

main62211-05050-E2iADT27#,ZRT27#..(E,F,G,V)..(DCR,DCRL,HTWVM)200811-200908

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),GREGE,TRIM4#

sub62211-05901

main62211-05050-E2iADT27#,ZRT27#..(E,F,G,V)..(DCR,DCRL,HTWVM)200811-200908

GREGE,TRIM4#

sub62211-05901

main62211-05900-B0iZRT272..LHD..HTWC200908-201111

LT.GRAY,TRIM2#

main62211-05900-E0iZRT272..LHD..HTWC200908-201111

GREGE,TRIM4#

main62211-05901-B0iZRT272..HTWC201111-201505

LT.GRAY,TRIM1#,21

main62211-05901-B0iADT270..LHD..F200908-201505

LT.GRAY,TRIM2#

main62211-05901-B0iADT270..LHD..F200908-201111

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),LT.GRAY,TRIM2#

main62211-05901-B0iZRT272..HTWC201111-201505

LT.GRAY,TRIM20,21,41

main62211-05901-B0iZRT272..HTWC201111-201505

LT.GRAY,TRIM1#,20,21,41

main62211-05901-B0iZRT272..HTWC201111-201505

LT.GRAY,TRIM20,21

main62211-05901-B0iZRT272..HTWC201111-201505

LT.GRAY,TRIM1#,20,21

main62211-05901-B0iZRT272..HTWC201111-201505

LT.GRAY,TRIM1#,21,41

main62211-05901-B0iZRT272..E..HTWVM201505

LT.GRAY,TRIM1#,4#

main62211-05901-B0iZRT272..E..HTWVM201505

LT.GRAY,TRIM1#,2#,4#

main62211-05901-E0iZRT272..LHD..HTWC200908-201111

GRAGE,TRIM4#

main62211-05901-E0iADT270,ZRT271..E;ADT271,ZRT272..G,V;ZRT272..RHD..HTWVM200908-201111

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),GRAGE,TRIM4#

62211DCLIP(FOR FRONT BODY PILLAR GARNISH)

main90950-08004iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

62211TCLIP(FOR FRONT PILLAR GARNISH)

main90467-W0005iADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)200811-201505

62212GARNISH, FRONT PILLAR, LH

main62212-05040-B2iZRT272..HTWC200811-200908

LT.GRAY,TRIM2#

sub62212-05900

main62212-05040-E2iZRT272..HTWC200811-200908

GREGE,TRIM4#

sub62212-05900

main62212-05050-B2iADT27#,ZRT27#..DCR,DCRL,HTWVM200811-200908

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),LT.GRAY,TRIM2#

sub62212-05901

main62212-05050-B2iADT27#,ZRT27#..DCR,DCRL,HTWVM200811-200908

LT.GRAY,TRIM2#

sub62212-05901

main62212-05050-E2iADT27#,ZRT27#..(E,F,G,V)..(DCR,DCRL,HTWVM)200811-200908

GREGE,TRIM4#

sub62212-05901

main62212-05050-E2iADT27#,ZRT27#..(E,F,G,V)..(DCR,DCRL,HTWVM)200811-200908

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),GREGE,TRIM4#

sub62212-05901

main62212-05900-B0iZRT272..RHD..HTWC200908-201111

LT.GRAY,TRIM2#

main62212-05900-E0iZRT272..LHD..HTWC200908-201111

GRAGE,TRIM4#

main62212-05901-B0iZRT272..HTWC201111-201505

LT.GRAY,TRIM1#,21,41

main62212-05901-B0iADT270..LHD..F200908-201505

LT.GRAY,TRIM2#

main62212-05901-B0iADT270..LHD..F200908-201111

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),LT.GRAY,TRIM2#

main62212-05901-B0iZRT272..HTWC201111-201505

LT.GRAY,TRIM20,21

main62212-05901-B0iZRT272..HTWC201111-201505

LT.GRAY,TRIM1#,21

main62212-05901-B0iZRT272..HTWC201111-201505

LT.GRAY,TRIM1#,20,21

main62212-05901-B0iADT271..RHD..SED..DCRL201111-201505

LT.GRAY,TRIM20,21,41

main62212-05901-B0iADT271..RHD..SED..DCRL201111-201505

LT.GRAY,TRIM1#,20,21,41

main62212-05901-B0iZRT272..E..HTWVM201505

LT.GRAY,TRIM1#,4#

main62212-05901-B0iZRT272..E..HTWVM201505

LT.GRAY,TRIM1#,2#,4#

main62212-05901-E0iADT270,ZRT271..E;ADT271,ZRT272..G,V;ZRT272..RHD..HTWVM200908-201111

GRAGE,TRIM4#

main62212-05901-E0iZRT272..LHD..HTWC200908-201111

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),GRAGE,TRIM4#

62217HCLIP, CENTER PILLER GARNISH

main62217-13010iADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)200811-201505

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-05050-C0iADT270,ZRT270,271..N200811-201505

BLACK,TRIM2#

main62311-05050-C0iADT270,ZRT270,271..N201111-201505

BLACK,TRIM1#,2#,4#

main62311-05050-C1iZRT272..E..HTWVM201505

EU BLACK,TRIM2#

main62311-05050-C1iZRT272..E..HTWVM201505

EU BLACK,TRIM1#,4#

main62311-05050-C1iZRT272..E..HTWVM201505

EU BLACK,TRIM1#,2#,4#

main62311-05050-E0iADT270..LHD..F;ZRT272..RHD..HTWC200811-201111

GREGE,TRIM4#

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-05050-C0iADT270,ZRT270,271..N201111-201505

BLACK,TRIM1#,2#,4#

main62312-05050-C0iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

BLACK,TRIM2#

main62312-05050-C1iZRT272..E..HTWVM201505

EU BLACK,TRIM2#

main62312-05050-C1iZRT272..E..HTWVM201505

EU BLACK,TRIM1#,2#,4#

main62312-05050-C1iZRT272..G;ZRT272..HTWC;WWT27#,ZRT270,271..E,G201505

EU BLACK,TRIM1#,4#

main62312-05050-E0iADT270..LHD..F;ZRT272..RHD..HTWC200811-201111

GREGE,TRIM4#

62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-05110-C0iADT27#,ZRT27#..WG200811-201505

BLACK,TRIM2#

main62331-05110-C0iADT270,ZRT270,271..WG..N201111-201505

BLACK,TRIM1#,2#,4#

main62331-05110-C1iWWT270,ZRT270,271..WG..N201505

EU BLACK,TRIM1#,2#,4#

main62331-05110-C1iWWT270,ZRT270,271..WG..N201505

EU BLACK,TRIM1#,4#

main62331-05110-C1iZRT272..WG..G;WWT27#,ZRT270,271..WG..(E,G)201505

EU BLACK,TRIM2#

main62331-05110-E0iADT27#,ZRT27#..WG..(E,G,V)200811-201111

GREGE,TRIM4#

main62331-05120-C0iADT270..RHD..SED;ADT271,ZRT27#..SED..(DCR,DCRL,HTWVM);ADT270,ZRT272..LHD..SED..(E,N)..(DCR,HTWC)200811-201505

BLACK,TRIM2#

main62331-05120-C0iADT27#,ZRT27#..SED..(E,G)201111-201505

BLACK,TRIM1#,2#,4#

main62331-05120-C1iZRT272..HTWC;ZRT272..SED..G;WWT27#,ZRT270,271..SED..(E,G)201505

EU BLACK,TRIM2#

main62331-05120-C1iWWT270,ZRT270,271..SED..N201505

EU BLACK,TRIM1#,4#

main62331-05120-C1iWWT270,ZRT270,271..SED..N201505

EU BLACK,TRIM1#,2#,4#

main62331-05120-E0iADT270..RHD..SED..(E,F);ADT270,ZRT272..LHD..SED..E..(DCR,HTWC);ADT271,ZRT27#..SED..(E,G,V)..(DCR,DCRL,HTWVM)200811-201111

GREGE,TRIM4#

62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-05110-C0iADT27#,ZRT27#..WG..(E,G)201111-201505

BLACK,TRIM1#,2#,4#

main62332-05110-C0iADT27#,ZRT27#..WG..(E,G)200811-201505

BLACK,TRIM2#

main62332-05110-C1iZRT272..WG..G;WWT27#,ZRT270,271..WG..(E,G)201505

EU BLACK,TRIM1#,4#

main62332-05110-C1iWWT270,ZRT270,271..WG..N201505

EU BLACK,TRIM2#

main62332-05110-C1iWWT270,ZRT270,271..WG..N201505

EU BLACK,TRIM1#,2#,4#

main62332-05110-E0iADT27#,ZRT27#..WG..(E,G,V)200811-201111

GREGE,TRIM4#

main62332-05120-C0iADT27#,ZRT27#..SED..(E,G)201111-201505

BLACK,TRIM1#,2#,4#

main62332-05120-C0iADT270,ZRT270,271..SED..N200811-201505

BLACK,TRIM2#

main62332-05120-C1iZRT272..SED..E..HTWVM201505

EU BLACK,TRIM1#,4#

main62332-05120-C1iWWT270,ZRT270,271..SED..N201505

EU BLACK,TRIM1#,2#,4#

main62332-05120-C1iWWT270,ZRT270,271..SED..N201505

EU BLACK,TRIM2#

main62332-05120-E0iADT270..RHD..SED..(E,F);ADT270,ZRT272..LHD..SED..E..(DCR,HTWC);ADT271,ZRT27#..SED..(E,G,V)..(DCR,DCRL,HTWVM)200811-201111

GREGE,TRIM4#

62411GARNISH, CENTER PILLAR, RH

main62410-05030-B2iWWT270,ZRT270,271..N200811-201505

LT.GRAY,TRIM2#

main62410-05030-B2iWWT270,ZRT270,271..N201505

LT.GRAY,TRIM1#,2#,4#

main62410-05030-B2iZRT272..HTWC201111-201505

LT.GRAY,TRIM1#,20,21,41

main62410-05030-B2iZRT272..HTWC201111-201505

LT.GRAY,TRIM1#,20,21

main62410-05030-B2iZRT272..HTWC201111-201505

LT.GRAY,TRIM1#,21

main62410-05030-E2iADT270..RHD..(E,F);ADT270,ZRT272..LHD..E..(DCR,HTWC);ADT271,ZRT27#..(E,G,V)..(DCR,DCRL,HTWVM)200811-201111

GREGE,TRIM4#

62412GARNISH, CENTER PILLAR, LH

main62420-05030-B2iADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)200811-201505

LT.GRAY,TRIM2#

main62420-05030-B2iZRT272..HTWC201111-201505

LT.GRAY,TRIM1#,20,21,41

main62420-05030-B2iZRT272..HTWC201111-201505

LT.GRAY,TRIM1#,20,21

main62420-05030-B2iZRT272..HTWC201111-201505

LT.GRAY,TRIM1#,21

main62420-05030-B2iWWT27#,ZRT27#..E,G201505

LT.GRAY,TRIM1#,2#,4#

main62420-05030-E2iADT270..LHD..F;ZRT272..RHD..HTWC200811-201111

GREGE,TRIM4#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-05040-C0iZRT272..RHD..HTWC200811-201505

BLACK,TRIM2#

main62413-05040-C0iADT270..LHD..F200811-201111

BLACK,TRIM2#,40

main62413-05040-C0iADT270,ZRT270,271..N201111-201505

BLACK,TRIM1#,2#,4#

main62413-05040-C1iZRT272..E..HTWVM201505

EU BLACK,TRIM1#,4#

main62413-05040-C1iZRT272..G;ZRT272..HTWC;WWT27#,ZRT270,271..E,G201505

EU BLACK,TRIM2#

main62413-05040-C1iZRT272..E..HTWVM201505

EU BLACK,TRIM1#,2#,4#

main62413-05040-E1iADT270..E;ADT271,ZRT272..G;ZRT271..WG..6F..E;ZRT272..RHD..HTWVM;ADT271,ZRT271..SED..E;ZRT271..LHD..WG..CVT..E;ZRT270,272..LHD..SED..E200811-201111

GREGE,TRIM40

main62413-05040-E1iZRT272..RHD..HTWC200811-201111

GREGE,TRIM4#

62413CCLIP (FOR CENTER LOWER GARNISH)

main90467-W0005iADT27#,ZRT27#200811-201505

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-05040-C0iADT270..LHD..F200811-201111

BLACK,TRIM2#,40

main62414-05040-C0iADT270..LHD..F200811-201505

BLACK,TRIM2#

main62414-05040-C0iADT270,ZRT270,271..N201111-201505

BLACK,TRIM1#,2#,4#

main62414-05040-C1iZRT272..G;ZRT272..HTWC;WWT27#,ZRT270,271..E,G201505

EU BLACK,TRIM1#,2#,4#

main62414-05040-C1iZRT272..E..HTWVM201505

EU BLACK,TRIM1#,4#

main62414-05040-C1iZRT272..E..HTWVM201505

EU BLACK,TRIM2#

main62414-05040-E1iADT270..E;ADT271,ZRT272..G;ZRT271..WG..6F..E;ZRT272..RHD..HTWVM;ADT271,ZRT271..SED..E;ZRT271..LHD..WG..CVT..E;ZRT270,272..LHD..SED..E200811-201111

GREGE,TRIM40

main62414-05040-E1iZRT272..RHD..HTWC200811-201111

GREGE,TRIM4#

62471AGARNISH, ROOF SIDE, INNER RH

main62471-05120-B2iADT27#,ZRT271,272..SED..(CVT,MTM)..G201111-201505

LT.GRAY,TRIM1#,20,21,41

main62471-05120-B2iZRT272..HTWC201111-201505

LT.GRAY,TRIM1#,20,21

main62471-05120-B2iZRT272..HTWC201111-201505

LT.GRAY,TRIM1#,21

main62471-05120-B2iADT270,ZRT270,271..SED..N200811-201505

LT.GRAY,TRIM2#

main62471-05120-B2iADT270..LHD..F200811-201111

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),LT.GRAY,TRIM2#

main62471-05120-E2iZRT272..LHD..HTWC200811-201111

GREGE,TRIM4#

main62471-05120-E2iZRT272..LHD..HTWC200811-201111

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),GREGE,TRIM4#

main62471-05121-B2iWWT270,ZRT270,271..SED..N201505

LT.GRAY,TRIM1#,4#

main62471-05121-B2iZRT272..HTWC;ZRT272..SED..G;WWT27#,ZRT270,271..SED..(E,G)201505

LT.GRAY,TRIM2#

main62471-05121-B2iZRT272..HTWC;ZRT272..SED..G;WWT27#,ZRT270,271..SED..(E,G)201505

LT.GRAY,TRIM1#,2#,4#

main62471-05130-B2iZRT272..LHD..HTWC200811-201111

LT.GRAY,TRIM2#

main62471-05130-E2iZRT272..RHD..HTWC200811-201111

GREGE,TRIM4#

main62471-05140-B4iADT271..WG..6FC;ADT27#,ZRT27#..WG..E200811-201505

LT.GRAY,TRIM2#

main62471-05140-B4iADT270,ZRT270,271..WG..N201111-201505

LT.GRAY,TRIM1#,20,21

main62471-05140-B4iADT270,ZRT270,271..WG..N201111-201505

LT.GRAY,TRIM1#,21

main62471-05140-B4iWWT270,ZRT270,271..WG..N201505

LT.GRAY,TRIM1#,2#,4#

main62471-05140-E3iADT27#,ZRT27#..WG..(E,G,V)200811-201111

GREGE,TRIM4#

62471JCLIP (FOR ROOF SIDE GARNISH)

main90467-W0005iADT27#,ZRT27#..WG200811-201505

main90467-W0009iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

62471MCLIP

main90467-15033iADT270..LHD..F200811-201111

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE)

main90467-15033iADT27#,ZRT27#201111-201505

62472AGARNISH, ROOF SIDE, INNER LH

main62472-05120-B2iADT271..SED..6FC;ADT27#,ZRT27#..SED..E..(DCR,HTWVM)201111-201505

LT.GRAY,TRIM1#,20,21,41

main62472-05120-B2iADT270..LHD..F200811-201505

LT.GRAY,TRIM2#

main62472-05120-B2iADT270..LHD..F200811-201111

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),LT.GRAY,TRIM2#

main62472-05120-B2iZRT272..HTWC201111-201505

LT.GRAY,TRIM1#,20,21

main62472-05120-B2iZRT272..HTWC201111-201505

LT.GRAY,TRIM1#,21

main62472-05120-E2iADT270..LHD..F200811-201111

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),GREGE,TRIM4#

main62472-05120-E2iZRT272..RHD..HTWC200811-201111

GREGE,TRIM4#

main62472-05121-B2iZRT272..SED..E..HTWVM201505

LT.GRAY,TRIM1#,2#,4#

main62472-05121-B2iWWT270,ZRT270,271..SED..N201505

LT.GRAY,TRIM2#

main62472-05121-B2iWWT270,ZRT270,271..SED..N201505

LT.GRAY,TRIM1#,4#

main62472-05130-B2iZRT272..LHD..HTWC200811-201111

LT.GRAY,TRIM2#

main62472-05130-E2iZRT272..LHD..HTWC200811-201111

GREGE,TRIM4#

main62472-05140-B4iADT270,ZRT270,271..WG..N201111-201505

LT.GRAY,TRIM1#,21

main62472-05140-B4iADT270,ZRT270,271..WG..N201111-201505

LT.GRAY,TRIM1#,20,21

main62472-05140-B4iADT270,ZRT270,271..WG..N200811-201505

LT.GRAY,TRIM2#

main62472-05140-B4iWWT270,ZRT270,271..WG..N201505

LT.GRAY,TRIM1#,2#,4#

main62472-05140-E3iADT27#,ZRT27#..WG..(E,G,V)200811-201111

GREGE,TRIM4#

62567ECLAMP, ROCKER PANEL INNER PROTECTOR, NO.2

main62567-33040iADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)200811-201505

main62567-33040iWWT27#,ZRT27#201505

SIMPLE PACKAGE

main62567-33040iWWT27#,ZRT27#201505

DOOR SCUFF PLATE-WITHOUT

63395CCLIP(FOR ROOF SIDE INNER GARNISH)

main63395-12150iADT27#,ZRT27#..SED200811-201505

main90950-08006iADT27#,ZRT27#..WG200811-201505

67731CSPACER, SIDE TRIM, NO.1

main62189-20010iADT270..RHD;ADT270..LHD..(E,N);ADT271,ZRT27#..DCR,DCRL,HTWVM200811-201111

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE)

main62189-20010iADT27#,ZRT27#201111-201505

67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH

main67911-05030iADT271,ZRT272..G,V200811-201111

main67911-05030iWWT27#,ZRT27#..E201505

DOOR SCUFF PLATE-RESIN(WITH ORNAMENT)

main67911-05030iADT27#,ZRT271,272..G201111-201505

DOOR SCUFF PLATE-WITH & WITH(ORNAMENT)

main67911-05040iADT27#,ZRT27#..E,N201111-201505

DOOR SCUFF PLATE-WITH & WITHOUT(ORNAMENT)

main67911-05040iADT270..LHD..F;ZRT272..RHD..HTWC200811-201111

main67911-05040iWWT27#,ZRT27#..E,N201505

SIMPLE PACKAGE

main67911-05040iWWT27#,ZRT27#..E,N201505

DOOR SCUFF PLATE-WITHOUT

67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH

main67912-05030iADT271,ZRT272..G,V200811-201111

main67912-05030iADT27#,ZRT271,272..G201111-201505

DOOR SCUFF PLATE-WITH & WITH(ORNAMENT)

main67912-05030iWWT27#,ZRT271,272..G201505

DOOR SCUFF PLATE-RESIN(WITH ORNAMENT)

main67912-05040iADT271..6FC201111-201505

DOOR SCUFF PLATE-WITH & WITHOUT(ORNAMENT)

main67912-05040iWWT270..E201505

DOOR SCUFF PLATE-WITHOUT

main67912-05040iADT270..LHD..F;ZRT272..RHD..HTWC200811-201111

main67912-05040iWWT27#,ZRT27#..E,N201505

SIMPLE PACKAGE

67913PLATE, FRONT DOOR SCUFF, RH

main67913-05060-C0iZRT272..LHD..HTWC;ZRT270..LHD..SED..E;ADT27#,ZRT271,272..SED..E..(DCR,HTWVM)200811-201111

BLACK,TRIM2#,40

main67913-05060-C0iZRT272..LHD..HTWC;ZRT270..LHD..SED..E;ADT27#,ZRT271,272..SED..E..(DCR,HTWVM)200811-201505

BLACK,TRIM2#

main67913-05060-C0iZRT272..LHD..HTWC;ZRT270..LHD..SED..E;ADT27#,ZRT271,272..SED..E..(DCR,HTWVM)200811-201111

BLACK,TRIM2#,4#

main67913-05060-C0iADT27#,ZRT27#..E,G201111-201505

BLACK,TRIM1#,2#,4#

main67913-05060-C1iWWT270..N201505

DOOR SCUFF PLATE-WITHOUT,EU BLACK,TRIM1#,2#,4#

main67913-05060-C1iWWT270,ZRT270,271..N201505

EU BLACK,TRIM2#

main67913-05060-C1iWWT270,ZRT270,271..N201505

EU BLACK,TRIM1#,4#

main67913-05060-C1iWWT270,ZRT270,271..N201505

EU BLACK,TRIM1#,2#,4#

main67913-05060-C1iWWT270,ZRT270,271..N201505

SIMPLE PACKAGE,EU BLACK,TRIM2#

main67913-05060-E0iADT271,ZRT272..G200811-201111

GREGE,TRIM4#

main67913-05060-E0iADT271..V200811-201111

GREGE,TRIM40

67914PLATE, FRONT DOOR SCUFF, LH

main67914-05060-C0iADT271,ZRT272..G200811-201111

BLACK,TRIM2#,4#

main67914-05060-C0iZRT270..RHD;ADT271,ZRT271..N,V;ADT270..RHD..(F,N);ZRT270..LHD..WG..E;ADT270,ZRT270..LHD..N;ADT27#,ZRT271,272..WG..E200811-201111

BLACK,TRIM2#,40

main67914-05060-C0iZRT270..RHD;ADT271,ZRT271..N,V;ADT270..RHD..(F,N);ZRT270..LHD..WG..E;ADT270,ZRT270..LHD..N;ADT27#,ZRT271,272..WG..E200811-201505

BLACK,TRIM2#

main67914-05060-C0iADT27#,ZRT27#..E,G201111-201505

BLACK,TRIM1#,2#,4#

main67914-05060-C1iWWT270..N201505

SIMPLE PACKAGE,EU BLACK,TRIM2#

main67914-05060-C1iWWT270,ZRT270,271..N201505

EU BLACK,TRIM2#

main67914-05060-C1iWWT270,ZRT270,271..N201505

EU BLACK,TRIM1#,4#

main67914-05060-C1iWWT270,ZRT270,271..N201505

EU BLACK,TRIM1#,2#,4#

main67914-05060-C1iWWT270,ZRT270,271..N201505

DOOR SCUFF PLATE-WITHOUT,EU BLACK,TRIM1#,2#,4#

main67914-05060-E0iADT271..V200811-201111

GREGE,TRIM40

main67914-05060-E0iADT271,ZRT272..G200811-201111

GREGE,TRIM4#

67915PLATE, REAR DOOR SCUFF, OUTSIDE RH

main67915-05030iWWT27#,ZRT271,272..G201505

DOOR SCUFF PLATE-RESIN(WITH ORNAMENT)

main67915-05030iADT27#,ZRT27#..E201111-201505

DOOR SCUFF PLATE-WITH & WITH(ORNAMENT)

main67915-05030iADT271,ZRT272..G,V200811-201111

main67915-05040iWWT270..E201505

SIMPLE PACKAGE

main67915-05040iWWT270..E201505

DOOR SCUFF PLATE-WITHOUT

main67915-05040iADT271..6FC201111-201505

DOOR SCUFF PLATE-WITH & WITHOUT(ORNAMENT)

main67915-05040iADT270..LHD..F;ZRT272..RHD..HTWC200811-201111

67916PLATE, REAR DOOR SCUFF, OUTSIDE LH

main67916-05030iWWT27#,ZRT271,272..G201505

DOOR SCUFF PLATE-RESIN(WITH ORNAMENT)

main67916-05030iADT27#,ZRT271,272..G201111-201505

DOOR SCUFF PLATE-WITH & WITH(ORNAMENT)

main67916-05030iADT271,ZRT272..G,V200811-201111

main67916-05040iWWT270..E201505

DOOR SCUFF PLATE-WITHOUT

main67916-05040iWWT270..E201505

SIMPLE PACKAGE

main67916-05040iADT270..RHD;ADT271,ZRT27#..(E,N)..(DCR,HTWVM);ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)200811-201111

main67916-05040iADT271..6FC201111-201505

DOOR SCUFF PLATE-WITH & WITHOUT(ORNAMENT)

67917APLATE, REAR DOOR SCUFF, RH

main67917-05060-C0iADT270,ZRT270,271..N201111-201505

BLACK,TRIM1#,2#,4#

main67917-05060-C0iADT270,ZRT270,271..N200811-201505

BLACK,TRIM2#

main67917-05060-C0iZRT272..RHD..HTWC200811-201111

BLACK,TRIM2#,4#

main67917-05060-C0iADT271,ZRT272..G200811-201111

BLACK,TRIM2#,40

main67917-05060-C1iWWT270..E201505

EU BLACK,TRIM2#

main67917-05060-C1iWWT270,ZRT270,271..N201505

EU BLACK,TRIM1#,4#

main67917-05060-C1iWWT270,ZRT270,271..N201505

EU BLACK,TRIM1#,2#,4#

main67917-05060-C1iWWT270,ZRT270,271..N201505

SIMPLE PACKAGE,EU BLACK,TRIM2#

main67917-05060-C1iWWT270,ZRT270,271..N201505

DOOR SCUFF PLATE-WITHOUT,EU BLACK,TRIM1#,2#,4#

main67917-05060-E0iADT271..V200811-201111

GREGE,TRIM40

main67917-05060-E0iADT271,ZRT272..G200811-201111

GREGE,TRIM4#

67918APLATE, REAR DOOR SCUFF, LH

main67918-05060-C0iADT270..LHD..F200811-201505

BLACK,TRIM2#

main67918-05060-C0iADT271,ZRT272..G200811-201111

BLACK,TRIM2#,40

main67918-05060-C0iADT271,ZRT272..G200811-201111

BLACK,TRIM2#,4#

main67918-05060-C0iADT270,ZRT270,271..N201111-201505

BLACK,TRIM1#,2#,4#

main67918-05060-C1iZRT272..G;WWT27#,ZRT270,271..E,G201505

EU BLACK,TRIM2#

main67918-05060-C1iZRT272..E201505

DOOR SCUFF PLATE-WITHOUT,EU BLACK,TRIM1#,2#,4#

main67918-05060-C1iZRT272..E201505

SIMPLE PACKAGE,EU BLACK,TRIM2#

main67918-05060-C1iZRT272..E201505

EU BLACK,TRIM1#,2#,4#

main67918-05060-C1iZRT272..E201505

EU BLACK,TRIM1#,4#

main67918-05060-E0iADT271..V200811-201111

GREGE,TRIM4#

main67918-05060-E0iADT271..V200811-201111

GREGE,TRIM40

7104

90167W0006

main90167-W0006

9018905096

main90189-05096

9356855018

main93568-55018

40 parts on this diagram · 2 diagrams in section
