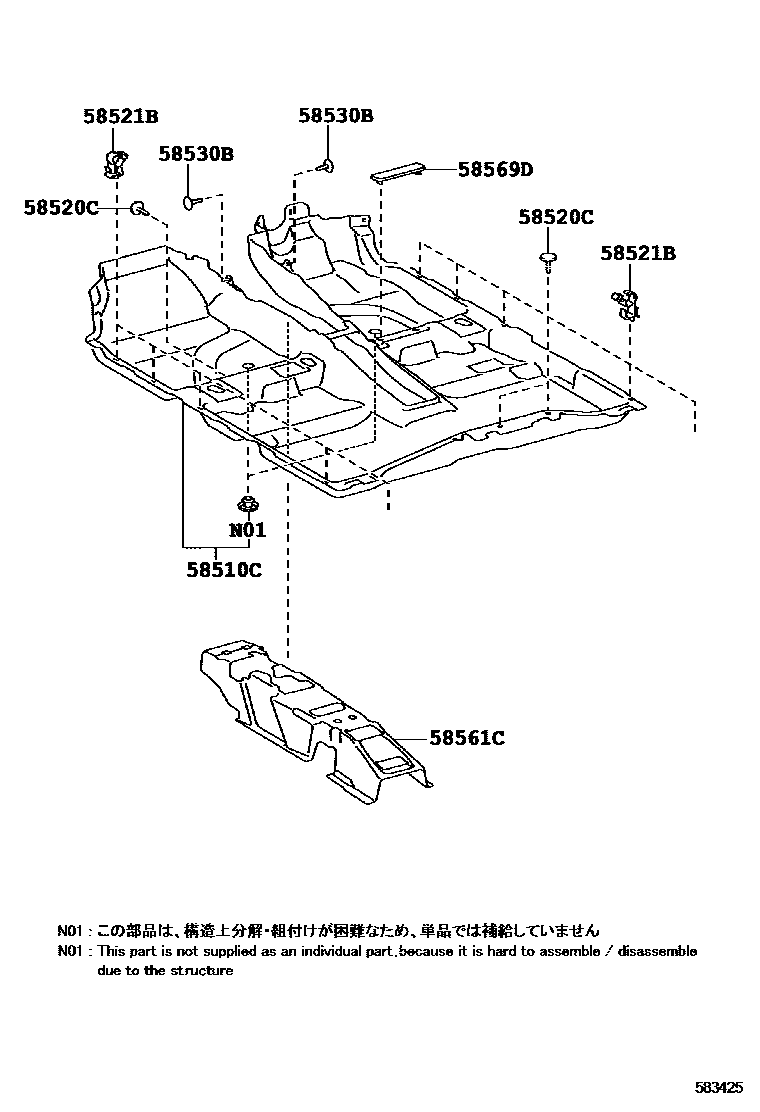

MAT & CARPET

0001 1 0002 1 0003 1

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58510-05390-C1iADT270..LHD..F200811-201104

BLACK,TRIM2#

main58510-05390-E0iADT27#,ZRT27#..LHD..(E,G,V)200811-201111

GREGE,TRIM4#

main58510-05400-C1iZRT272..RHD..HTWC200811-201104

BLACK,TRIM2#

main58510-05400-E0iZRT272..RHD..HTWC200811-201104

GREGE,TRIM4#

main58510-05410-C0iADT270,ZRT270,271..LHD..N201111-201505

BLACK,TRIM2#

main58510-05411-C0iWWT270,ZRT270,271..LHD..N201505

BLACK,TRIM2#

main58510-05420-C0iADT27#,ZRT27#..RHD..(E,G)201111-201409

BLACK,TRIM2#

main58510-05421-C0iZRT270..RHD..E;ADT27#,ZRT271,272..RHD..G201409-201505

BLACK,TRIM2#

main58510-05422-C0iWWT270,ZRT270,271..RHD..N201505

BLACK,TRIM2#

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-07049-23×3iWWT27#,ZRT27#201610

BLACK

main90467-07049-C0×3iADT270..LHD..F;ZRT272..RHD..HTWC200811-201104

BLACK

58521BHOOK, FLOOR CARPET

main58521-02050×10iWWT27#,ZRT27#201505

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-W0006-B0×2iZRT272..HTWC201308-201505

LT.GRAY,TRIM2#,4#

main90467-W0006-B5×2iZRT272..HTWC201111-201308

LIGHT GRAY,TRIM1#,20,21

main90467-W0006-E0×2iZRT270..E;ADT27#,ZRT271,272..G201308-201505

GREGE,TRIM21,4#

main90467-W0006-E1×2iADT270..RHD..(E,F);ADT270,ZRT272..LHD..E..(DCR,HTWC);ADT271,ZRT27#..(E,G,V)..(DCR,DCRL,HTWVM)200811-201111

GREGE,TRIM4#

58561CSILENCER, FRONT FLOOR, NO.1

main58561-05060iADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)200811-201111

58569DCOVER, FRONT FLOOR CAUTION PLATE

main58569-02030-B0iADT27#,ZRT27#201111-201505

DK.GRAY

6 parts on this diagram · 3 diagrams in section
