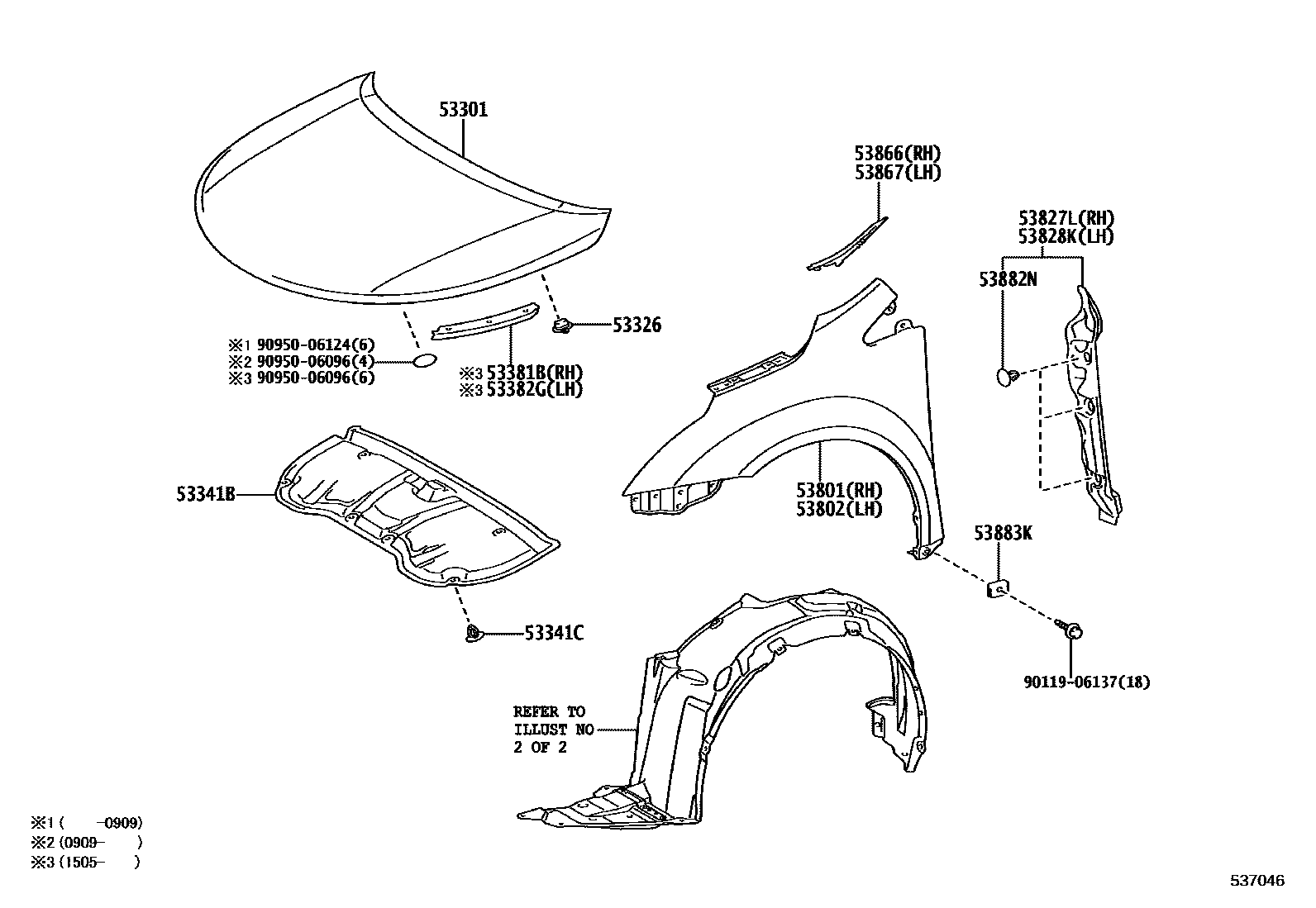

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER 0003 1 0004 1FENDER LINER

53301HOOD SUB-ASSY

main53301-05040iADT27#,ZRT27#201111-201505

main53301-05050iWWT27#,ZRT27#201505

53326CLIP, HOOD PROTECTOR

main53326-52010iADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)200811-201111

53341BINSULATOR, HOOD

main53341-05040iADT270..LHD..F;ZRT272..RHD..HTWC200811-201104

main53341-05050iWWT27#,ZRT27#201505

53341CCLIP(FOR HOOD INSULATOR)

main90467-W0003×6iADT270..LHD..F;ZRT272..RHD..HTWC200811-201104

53381BSEAL, HOOD TO RADIATOR SUPPORT, RH

main53381-05090iWWT27#,ZRT27#201505

53382GSEAL, HOOD TO RADIATOR SUPPORT, LH

main53382-05010iWWT27#,ZRT27#201505

53801FENDER SUB-ASSY, FRONT RH

main53801-05020iADT27#,ZRT27#201111-201505

main53801-05030iWWT27#,ZRT27#201505

53802FENDER SUB-ASSY, FRONT LH

main53802-05020iADT27#,ZRT27#201111-201505

main53802-05030iWWT27#,ZRT27#201505

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-05010iADT27#,ZRT27#201111-201505

main53827-05030iWWT27#,ZRT27#201505

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-05010iADT27#,ZRT27#201111-201505

main53828-05030iWWT27#,ZRT27#201505

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main53866-05030iADT270..LHD..F;ZRT272..RHD..HTWC200811-201104

main53866-05050iWWT27#,ZRT27#201505

53867SEAL, FRONT FENDER TO COWL SIDE, LH

main53867-05030iADT270..LHD..F;ZRT272..RHD..HTWC200811-201104

main53867-05050iWWT27#,ZRT27#201505

53882NCLIP(FOR FRONT FENDER SEAL)

main90467-06205-C0×6iADT270..LHD..F;ZRT272..RHD..HTWC200811-201104

BLACK

53883KSEAL, FRONT FENDER, LH

main53882-16030×4iADT270..LHD..F;ZRT272..RHD..HTWC200811-201104

9011906137

main90119-06137

9095006096

main90950-06096

9095006124

main90950-06124

17 parts on this diagram · 4 diagrams in section
