RADIATOR GRILLE

0001 1 0002 1 0003 1

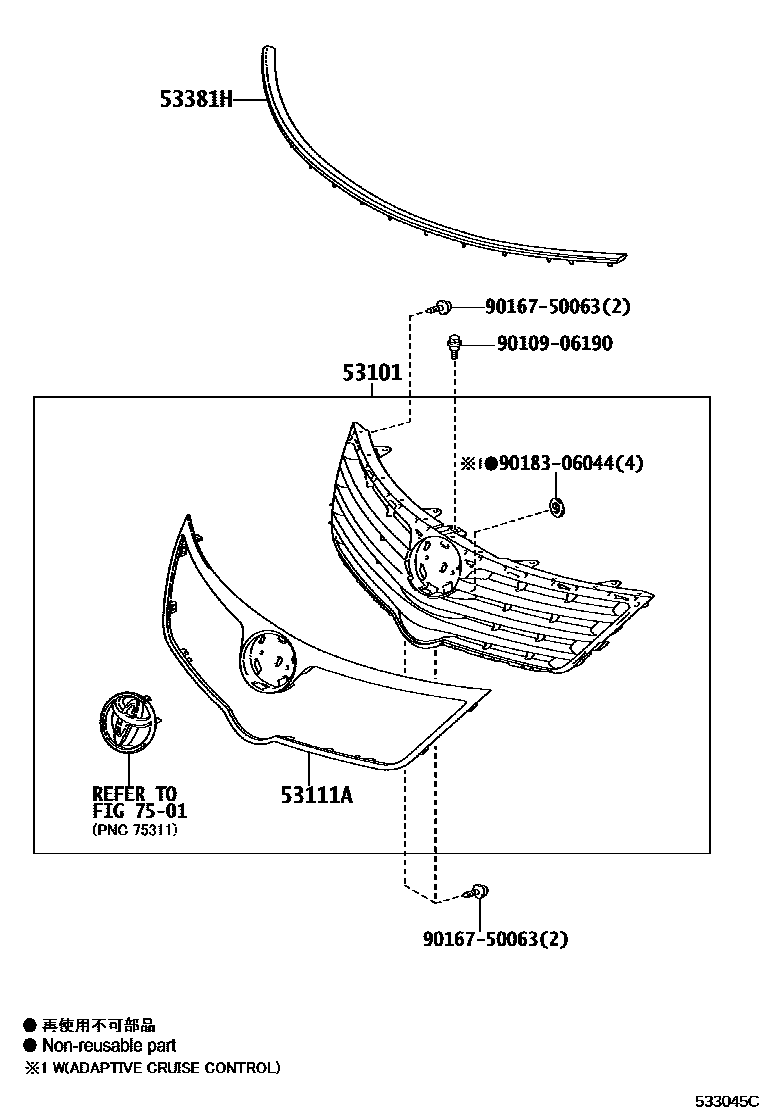

53101GRILLE SUB-ASSY, RADIATOR

main53100-05110-A0iADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)200811-201111

SUPER WHITE 2,040

main53100-05110-B0iADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)200811-201111

GRAY ME.,1G3

main53100-05110-B2iADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)200811-201111

SILVER ME.,1F7

main53100-05110-B3iADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)200811-201111

GRAY ME.,1G6

main53100-05110-B4iADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)201006-201111

DK. STEEL MC.,1H2

main53100-05110-C0iADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)200811-201111

BLACK MC.,209

main53100-05110-D0iADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)200811-201111

RED M.M.,3R3

main53100-05110-G1iADT270..LHD..F;ZRT272..RHD..HTWC200811-201111

OLIVE M.M.,6T7

main53100-05110-J0iADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)200811-201111

DK.BLUE MC.,8S6

main53100-05110-J1iADT270..LHD..F;ZRT272..RHD..HTWC200811-201111

DK.BLUE ME.,8U5

main53100-05110-K0iADT27#,ZRT27#200811-201006

DK.PURPLE,9AK

53111GRILLE, RADIATOR

main53111-05900iADT27#,ZRT27#201111-201505

PAINT REQ.

53111AGRILLE, RADIATOR, OUTSIDE

main53111-05070iADT270..LHD..F;ZRT272..RHD..HTWC200811-201111

53381HSEAL, HOOD TO RADIATOR SUPPORT

main53381-05050iADT270..LHD..F;ZRT272..RHD..HTWC200811-201111

main53381-05060iADT27#,ZRT27#201111-201505

main53381-05080iWWT27#,ZRT27#201505

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

9010906190

main90109-06190

9016750063

main90167-50063

9018306044

main90183-06044

8 parts on this diagram · 3 diagrams in section
