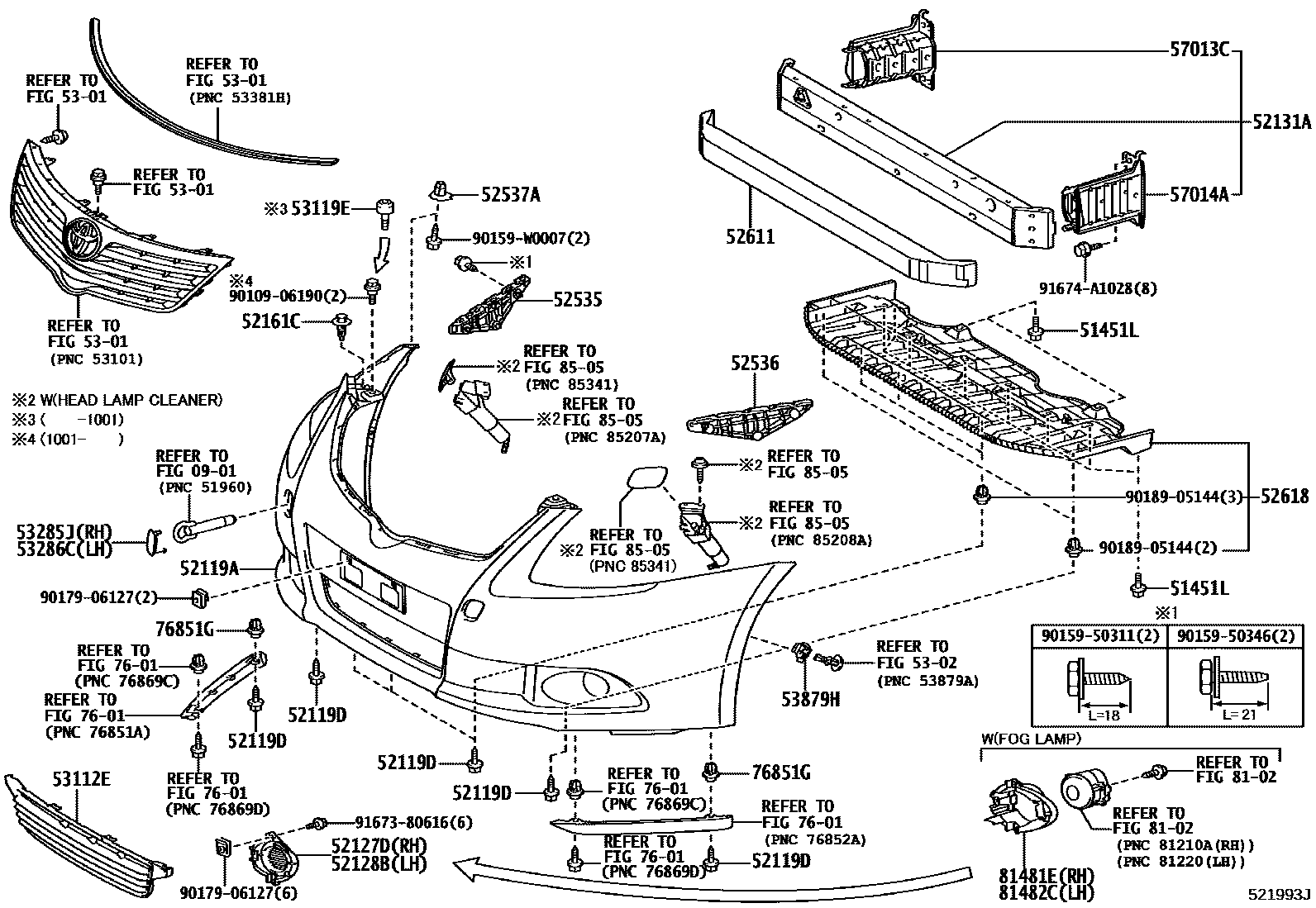

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1

0901

51451LBOLT, NO.1

main90119-W0089×10iADT27#,ZRT27#201111-201505

52119ACOVER, FRONT BUMPER

main52119-05915iADT27#,ZRT27#200811-201001

PAINT REQ.

sub90109-06190

main52119-05917supersedes 52119-05917iADT27#,ZRT27#..E,F,N201001-201111

PAINT REQ.,WEST RUSSIA SPEC&FRONT FOG LAMP-WITH

main52119-05919iADT27#,ZRT27#201111-201505

PAINT REQ.

main52119-05916iZRT270,271..LHD..N;ZRT270..LHD..WG..E200811-201001

PAINT REQ.,HEADLAMP-DISCHARGE & AFS

sub90109-06190

main52119-05918iADT27#,ZRT27#..(E,F,N)..(DCR,HTWVM)201001-201111

HEADLAMP-DISCHARGE & AFS&FRONT FOG LAMP-WITH

main52119-05920iZRT270,271..LHD..N201111-201505

PAINT REQ.,HEADLAMP-DISCHARGE & AFS

main52119-05922supersedes 52119-05921iZRT272..G;WWT27#,ZRT271..RHD..G201505

PAINT REQ.,HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITHOUT

52119DSCREW, NO.1

main90159-60488×7iADT27#,ZRT27#201111-201505

52127DCOVER, FRONT BUMPER HOLE, RH

main52127-05050iADT270..LHD..F;ZRT272..RHD..HTWC200905-201104

main81481-05020iADT27#,ZRT27#..6F..E201111-201505

BASE PACKAGE

main81481-05030iWWT27#,ZRT270,271..LHD..(E,G)201505

FRONT FOG LAMP-WITHOUT

52128BCOVER, FRONT BUMPER HOLE, LH

main52128-05070iADT270..LHD..F;ZRT272..RHD..HTWC200905-201104

main81482-05020iADT27#,ZRT27#..6F..E201111-201505

BASE PACKAGE

main81482-05030iWWT27#,ZRT270,271..LHD..(E,G)201505

FRONT FOG LAMP-WITHOUT

52131AREINFORCEMENT, FRONT BUMPER

main52021-05050iADT27#,ZRT27#200811-201008

main52021-05051iADT270..LHD..F;ZRT272..RHD..HTWC201009-201104

52161CPIECE, FRONT BUMPER

main52161-02030×2iADT270..LHD..F;ZRT272..RHD..HTWC200910-201104

(L)

main52161-16010×2iADT270..LHD..F;ZRT272..RHD..HTWC200910-201104

(J)

sub52161-0K040

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-05040iADT270..LHD..F;ZRT272..RHD..HTWC200811-201104

main52535-05050iWWT27#,ZRT27#201505

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-05040iADT270..LHD..F;ZRT272..RHD..HTWC200811-201104

main52536-05050iWWT27#,ZRT27#201505

52537RETAINER, FRONT BUMPER END, RH

main52535-50060iADT27#,ZRT27#201111-201505

52537ARETAINER, FRONT BUMPER SIDE, NO.2

main52535-50060×2iADT270..LHD..F;ZRT272..RHD..HTWC200811-201104

52611ABSORBER, FRONT BUMPER ENERGY

main52611-05010iADT27#,ZRT27#200811-201012

main52611-05011iADT270..LHD..F;ZRT272..RHD..HTWC201101-201104

main52611-05030iWWT27#,ZRT27#201505

52618ABSORBER, FRONT BUMPER, LOWER

main52618-05010iADT270..LHD..F;ZRT272..RHD..HTWC200811-201104

main52618-05030iWWT27#,ZRT27#201505

5301

5302

53112EGRILLE, RADIATOR, LOWER NO.1

main53112-05080iADT270..LHD..F;ZRT272..RHD..HTWC200811-201104

NO PAINT REQ.

main53112-05090iADT27#,ZRT27#201111-201505

NO PAINT REQ.

main53112-05100iWWT27#,ZRT27#201505

NO PAINT REQ.

53119EPROTECTOR, RADIATOR GRILLE

main53119-13020×2iADT27#,ZRT27#200811-201001

53285JCOVER, FRONT BUMPER ARM HOLE, RH

main53285-05901supersedes 53285-05901iZRT270..WG..E;ADT270,ZRT270,271..N;ZRT271..RHD..WG..CVT..E200811-201111

WEST RUSSIA SPEC&FRONT FOG LAMP-WITH

main53285-05903iADT27#,ZRT27#201111-201505

53286CCOVER, FRONT BUMPER ARM HOLE, LH

main53286-05901supersedes 53286-05901iZRT270..WG..E;ADT270,ZRT270,271..N;ZRT271..RHD..WG..CVT..E200811-201111

WEST RUSSIA SPEC&FRONT FOG LAMP-WITH

main53286-05903iADT27#,ZRT27#201111-201505

53879HRETAINER, FRONT FENDER LINER

main53879-50020×2iWWT27#,ZRT27#201505

main53879-58010×2iADT270..LHD..F;ZRT272..RHD..HTWC200811-201104

57013CBRACKET SUB-ASSY, FRONT SIDE MEMBER, RH

main57013-05030iWWT27#,ZRT27#201505

57014ABRACKET SUB-ASSY, FRONT SIDE MEMBER, LH

main57014-05030iWWT27#,ZRT27#201505

7601

76851GGROMMET, SCREW, NO.1

main90189-05144×2iADT27#,ZRT27#200811-201111

main90189-06234×2iADT27#,ZRT27#201202-201505

8102

81481ECOVER, FOG LAMP, RH

main52127-05060iZRT270..WG;ZRT271..CVT..N;ZRT270..LHD..SED..N;ZRT271..RHD..WG..CVT..E;ADT270,ZRT271..LHD..6F..N200811-201111

HEAD LAMP CLEANER-WITH&FRONT FOG LAMP-WITH

main81481-05010iZRT270,271..LHD..N201111-201505

WEST RUSSIA SPEC&HEAD LAMP CLEANER-WITH&FRONT FOG LAMP-WITH

main81481-05040iWWT270,ZRT270,271..N201505

HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH

81482CCOVER, FOG LAMP, LH

main52128-05080iADT27#,ZRT27#..E,F200811-200905

main81482-05010iZRT270,271..LHD..N201111-201505

WEST RUSSIA SPEC&HEAD LAMP CLEANER-WITH&FRONT FOG LAMP-WITH

main81482-05040iWWT270,ZRT270,271..N201505

HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH

8505

9010906190

main90109-06190

9015950311

main90159-50311

9015950346

main90159-50346

90159W0007

main90159-W0007

9017906127

main90179-06127

9018905144

main90189-05144

9167380616

main91673-80616

91674A1028

main91674-A1028
