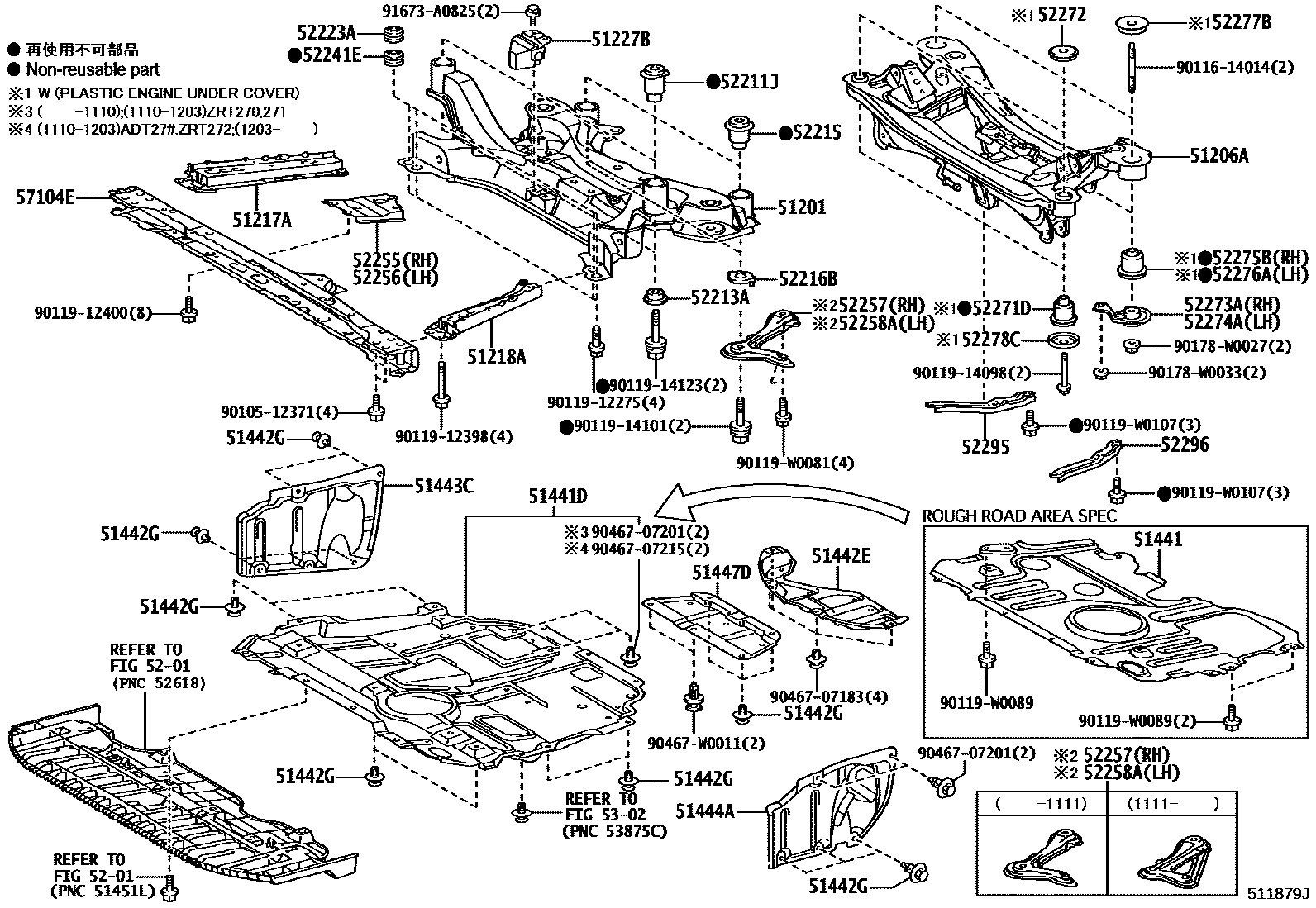

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1SUSPENSION CROSSMEMBER 0003 1ENGINE UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-05100iADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)200811-201307

sub51201-05101

main51201-05101iADT27#,ZRT27#201308-201505

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-05070iADT27#,ZRT27#200811-201101

main51206-05090iADT270..LHD..F;ZRT272..RHD..HTWC201101-201306

sub51206-05091

main51206-05091iADT27#,ZRT27#201307-201505

51217AREINFORCEMENT, FRONT SUSPENSION MEMBER, RH

main51107-05020iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

51218AREINFORCEMENT, FRONT SUSPENSION MEMBER, LH

main51108-05010iADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)200811-201505

51227BDAMPER, FRONT SUSPENSION MEMBER DYNAMIC

main51227-05050iWWT27#200811-201505

51441COVER, ENGINE UNDER, NO.1

main51440-05010iWWT271201505

51441DCOVER, ENGINE UNDER

main51410-02170iZRT270,271200811-201505

main51410-02180iADT270..RHD;ADT271,ZRT272..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)200811-201505

main51410-02220iZRT270,271201505

main51410-05020iWWT27#201505

51442COVER, ENGINE UNDER, NO.2

main51450-05010iWWT271201505

51442ECOVER, ENGINE UNDER, NO.2

main51442-02230iADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)200811-201505

51442GCLIP, ENGINE UNDER COVER, NO.1

main90467-07201iZRT272..LHD..HTWC200811-201111

ROUGH ROAD AREA SPEC-*VHU,W(STEEL*EUC & *QSP & *FTUP)

main90467-07201iZRT272..LHD..SED..(4FC,6F)..E201111-201505

ENGINE UNDER COVER & PRTCTOR-STEEL

main90467-07201iWWT27#,ZRT27#201505-201807

51443CCOVER, ENGINE UNDER, REAR RH

main51443-02050iADT270..LHD..F;ZRT272..RHD..HTWC200811-201410

main51443-05030iADT27#,ZRT27#201411-201505

51444ACOVER, ENGINE UNDER, REAR LH

main51444-02041iADT270..LHD..F;ZRT272..RHD..HTWC200811-201410

main51444-05020iADT27#,ZRT27#201411-201505

51447DCOVER, ENGINE UNDER, NO.4 CENTER

main51447-02010iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

5201

52211JCUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52211-05020iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

52213ASTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52213-05020iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

52215CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52215-05020iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

52216BSTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52216-05020iADT27#,ZRT27#200811-201505

52223ASPACER, CAB REAR MOUNTING, LOWER

main52223-05010iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

52241ECUSHION, CAB REAR MOUNTING

main52241-05010iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

52255BRACE, FRONT SUSPENSION MEMBER, FRONT RH

main52255-02010iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

52256BRACE, FRONT SUSPENSION MEMBER, FRONT LH

main52256-02010iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main52257-05031iADT270..LHD..F;ZRT272..RHD..HTWC200811-201111

main52257-05040iADT27#,ZRT27#201111-201505

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main52258-05031iADT270..LHD..F;ZRT272..RHD..HTWC200811-201111

main52258-05040iADT27#,ZRT27#201111-201505

52271DCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT

main52271-05020iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

52272STOPPER, REAR SUSPENSION MEMBER, UPPER

main52272-05030iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

52273ASTOPPER, REAR SUSPENSION MEMBER, LOWER RH

main52203-02010iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

52274ASTOPPER, REAR SUSPENSION MEMBER, LOWER LH

main52203-02010iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

52275BCUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR RH

main52275-05030iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

52276ACUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR LH

main52276-05030iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

52277BSTOPPER, REAR SUSPENSION MEMBER, REAR UPPER

main52277-05030iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

52278CSTOPPER, REAR SUSPENSION MEMBER, REAR LOWER

main52278-05010iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

52295BRACE, REAR SUSPENSION MEMBER, RH

main52295-05030iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

52296BRACE, REAR SUSPENSION MEMBER, LH

main52295-05030iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

5302

57104EMEMBER SUB-ASSY, FRONT CROSS

main57104-02160iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

sub57104-12270

9010512371

main90105-12371

9011614014

main90116-14014

9011912275

main90119-12275

9011912398

main90119-12398

9011912400

main90119-12400

9011914098

main90119-14098

9011914101

main90119-14101

9011914123

main90119-14123

90119W0081

main90119-W0081

90119W0089

main90119-W0089

90119W0107

main90119-W0107

90178W0027

main90178-W0027

90178W0033

main90178-W0033

9046707183

main90467-07183

9046707201

main90467-07201

9046707215

main90467-07215

90467W0011

main90467-W0011

91673A0825

main91673-A0825

54 parts on this diagram · 3 diagrams in section
