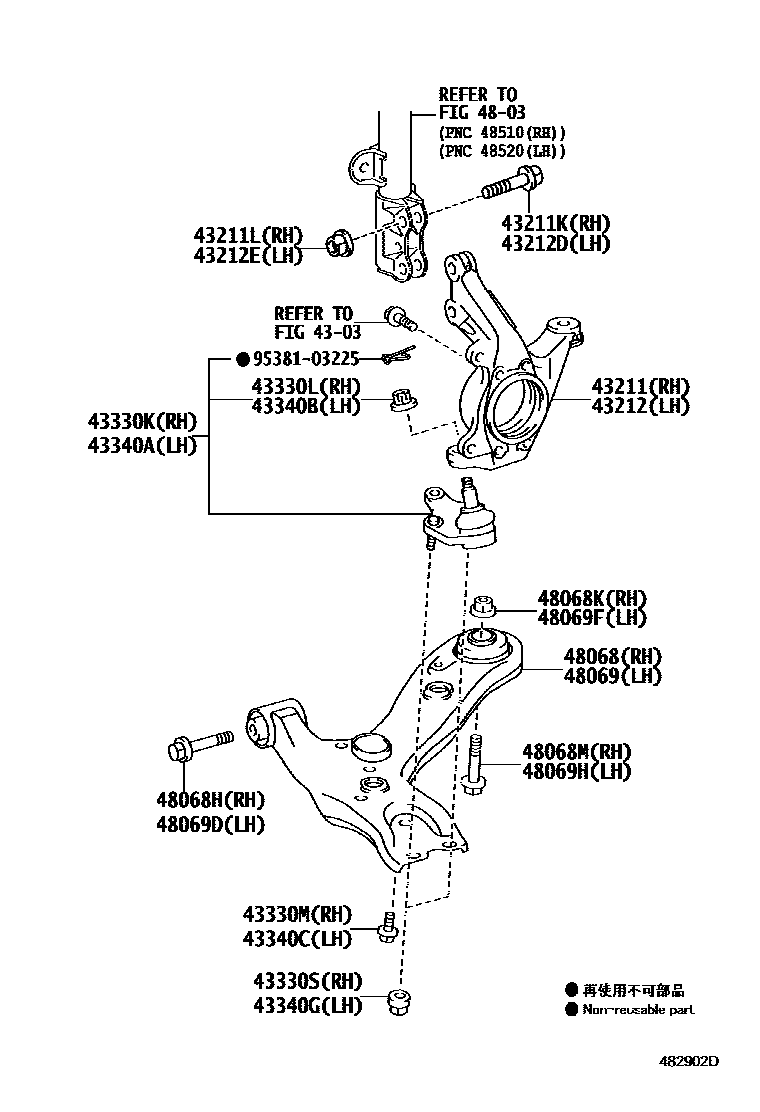

FRONT AXLE ARM & STEERING KNUCKLE

4303

43211KNUCKLE, STEERING, RH

main43211-05090iADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)200811-201505

43211KBOLT (FOR STEERING KNUCKLE RH)

main90105-W0070iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

OD=17

43211LNUT (FOR STEERING KNUCKLE RH)

main90178-17002iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

43212KNUCKLE, STEERING, LH

main43212-05090iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

43212DBOLT (FOR STEERING KNUCKLE LH)

main90105-W0070iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

OD=17

43212ENUT (FOR STEERING KNUCKLE LH)

main90178-17002iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-09770iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-14003iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

43330MBOLT (FOR FRONT LOWER BALL JOINT RH)

main90105-W0077iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

sub90105-12346

43330SNUT (FOR FRONT LOWER BALL JOINT RH)

main90178-12019iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43330-09770iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-14003iWWT27#,ZRT27#200811-201505

43340CBOLT (FOR FRONT LOWER BALL JOINT LH)

main90105-W0077iADT27#,ZRT27#200811-201505

sub90105-12346

43340GNUT (FOR FRONT LOWER BALL JOINT LH)

main90178-12019iADT27#,ZRT27#200811-201505

4803

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-05080iZRT27#200811-201505

main48068-05090iWWT27#201505

48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90105-16090iADT27#,ZRT27#201306-201505

main91554-L1690iADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)200811-201305

48068KNUT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90178-16006iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90105-16090iADT27#,ZRT27#201306-201505

main91554-L1690iADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)200811-201305

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-05080iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

main48069-05090iWWT27#201505

48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90105-16090iWWT27#,ZRT27#201306-201505

main91554-L1690iADT27#,ZRT27#200811-201305

48069FNUT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90178-16006iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90105-16090iADT27#,ZRT27#201306-201505

main91554-L1690iADT27#,ZRT27#200811-201305

9538103225

main95381-03225

25 parts on this diagram · 1 diagram in section
