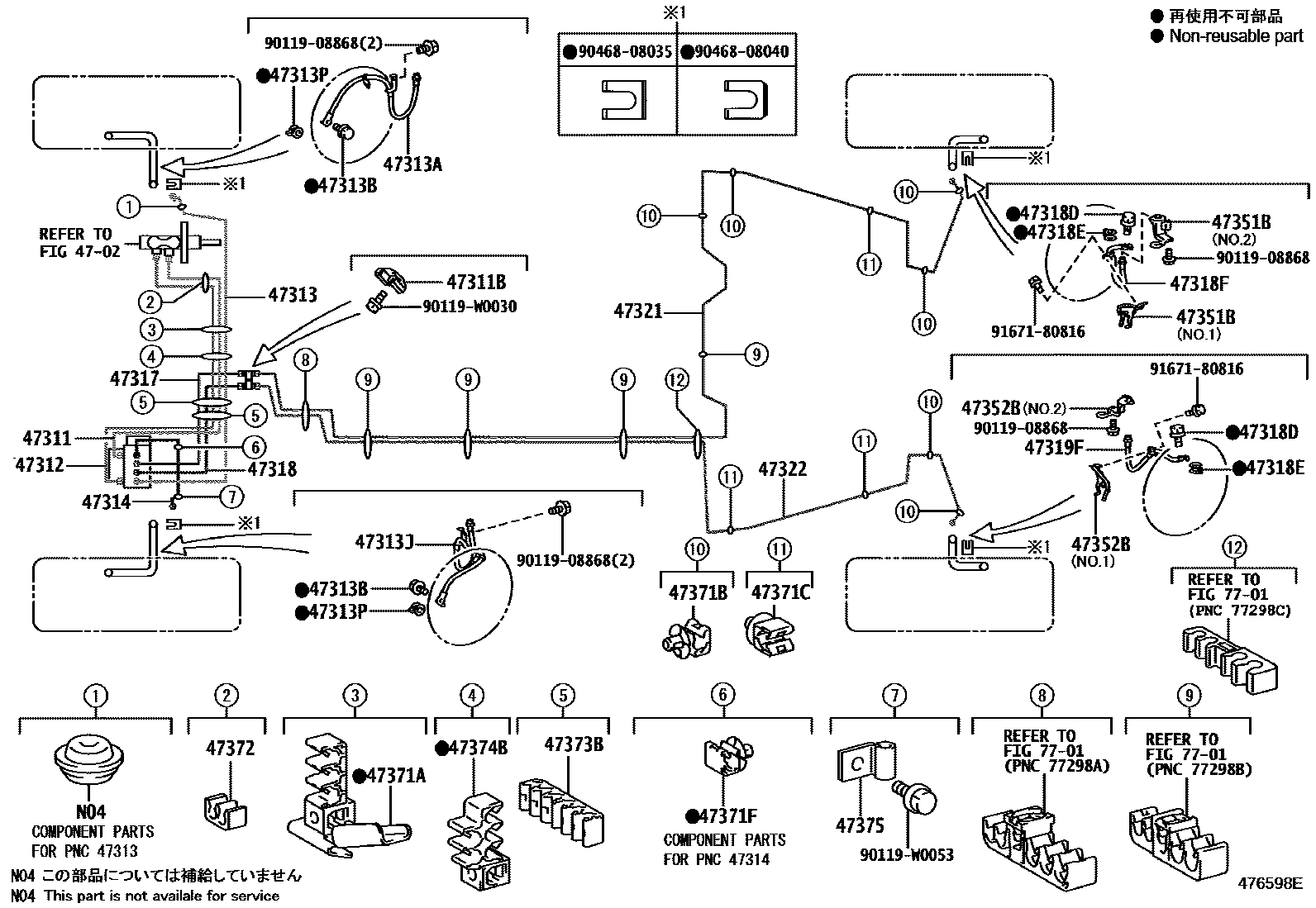

BRAKE TUBE & CLAMP

0001 1BRAKE TUBE 0002 1BRAKE TUBE 0003 1BRAKE TUBE 0004 1BRAKE TUBE 0005 1BRAKE TUBE,W(VSC) 0006 1BRAKE TUBE,W(VSC) 0007 1BRAKE TUBE 0008 1BRAKE TUBE 0009 1BRAKE TUBE 0010 1BRAKE TUBE 0011 1BRAKE ACTUATOR 0012 1BRAKE ACTUATOR 0013 1BRAKE ACTUATOR 0014 1BRAKE ACTUATOR

4702

47311TUBE, FRONT BRAKE, NO.1

main47311-05260iZRT270..LHD..N200811-201111

main47311-05270iZRT270..LHD..E;ADT27#,ZRT271,272..LHD..(ATM,MTM)..(E,G,N,V)200811-201111

WITH(VSC)

main47311-05270iADT270..LHD..F200811-201505

main47311-05280iZRT271,272..LHD..CVT200811-201505

main47311-05290iZRT270..RHD..N200811-201111

main47311-05350iZRT272..RHD..HTWC200811-201505

main47311-05350iZRT270..RHD..N200811-201111

WITH(VSC)

main47311-05360iZRT271,272..RHD..CVT200811-201505

main47311-05370iWWT27#,ZRT27#..LHD..(4FC,6F)201505

main47311-05381iZRT271,272..LHD..CVT201505

main47311-05390iWWT27#,ZRT270,271..RHD..6F201505

main47311-05400iZRT271,272..RHD..CVT201505

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10255iADT27#,ZRT27#200811-201505

main90412-10285iWWT27#,ZRT27#201505

47312TUBE, FRONT BRAKE, NO.2

main47312-05120iZRT270..LHD..N200811-201111

main47312-05130iADT270..LHD..F200811-201505

main47312-05130iZRT270..LHD..E;ADT27#,ZRT271,272..LHD..(ATM,MTM)..(E,G,N,V)200811-201111

WITH(VSC)

main47312-05140iZRT271,272..LHD..CVT200811-201505

main47312-05150iZRT270..RHD..N200811-201111

main47312-05160iZRT270..RHD..E;ADT27#,ZRT271,272..RHD..(6F,6FC)..(DCR,DCRL,HTWVM)200811-201111

WITH(VSC)

main47312-05160iZRT272..RHD..HTWC200811-201505

main47312-05170iZRT271,272..RHD..CVT200811-201505

main47312-05180iWWT27#,ZRT27#..LHD..(4FC,6F)201505

main47312-05191iZRT271,272..LHD..CVT201505

main47312-05200iWWT27#,ZRT270,271..RHD..6F201505

main47312-05210iZRT271,272..RHD..CVT201505

47313TUBE, FRONT BRAKE, NO.3

main47313-02C50iWWT27#,ZRT27#..LHD..(4FC,6F)201505

main47313-02C60iWWT27#,ZRT270,271..RHD..6F201505

main47313-05250iZRT270..LHD..E;ADT27#,ZRT271,272..LHD..(ATM,MTM)..(E,G,N,V)200811-201111

WITH(VSC)

main47313-05250iADT27#,ZRT27#..LHD..(ATM,MTM)200811-201505

main47313-05260iZRT271,272..LHD..CVT200811-201505

main47313-05270iZRT270..RHD..E;ADT27#,ZRT271,272..RHD..(6F,6FC)..(DCR,DCRL,HTWVM)200811-201111

WITH(VSC)

main47313-05270iZRT272..RHD..HTWC200811-201505

main47313-05320iZRT271,272..RHD..CVT200811-201505

main47313-05330iZRT270..LHD..N200811-201111

main47313-05340iZRT270..RHD..N200811-201111

main47313-05350iZRT271,272..LHD..CVT201505

main47313-05360iZRT271,272..RHD..CVT201505

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-W2022iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

main90947-W2064iWWT27#,ZRT27#201505

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-W2023iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

main90947-W2065iWWT27#,ZRT27#201505

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

47314TUBE, FRONT BRAKE, NO.4

main47314-02C00iWWT27#,ZRT27#..LHD..(4FC,6F)201505

main47314-02C10iWWT27#,ZRT270,271..RHD..6F201505

main47314-05140iADT27#,ZRT27#..LHD..(ATM,MTM)200811-201203

sub47314-05141

main47314-05140iZRT270..LHD..E;ADT27#,ZRT271,272..LHD..(ATM,MTM)..(E,G,N,V)200811-201110

WITH(VSC)

sub47314-05141

main47314-05141iADT27#,ZRT27#..LHD..(ATM,MTM)201204-201505

main47314-05150iZRT271,272..LHD..CVT200811-201112

sub47314-05151

main47314-05151iZRT271,272..LHD..CVT201112-201505

main47314-05200iZRT272..RHD..HTWC200811-201104

sub47314-05201

main47314-05200iZRT270..RHD..E;ADT27#,ZRT271,272..RHD..(6F,6FC)..(DCR,DCRL,HTWVM)200811-201110

WITH(VSC)

sub47314-05201

main47314-05201iADT27#,ZRT27#..RHD..(6F,6FC)201111-201505

main47314-05210iZRT271,272..RHD..CVT200811-201202

sub47314-05211

main47314-05211iZRT271,272..RHD..CVT201203-201505

main47314-05220iZRT270..LHD..N200811-201110

sub47314-05221

main47314-05230iZRT270..RHD..N200811-201110

sub47314-05231

main47314-05241iZRT271,272..LHD..CVT201505

main47314-05250iZRT271,272..RHD..CVT201505

47317TUBE, FRONT BRAKE, NO.7

main47317-02B40iWWT27#,ZRT27#..LHD..(4FC,6F)201505

main47317-02B50iWWT27#,ZRT270,271..RHD..6F201505

main47317-05220iZRT270..LHD..E;ADT27#,ZRT271,272..LHD..(ATM,MTM)..(E,G,N,V)200811-201111

WITH(VSC)

main47317-05220iADT270..LHD..F200811-201505

main47317-05230iZRT271,272..LHD..CVT200811-201505

main47317-05240iADT27#,ZRT27#..RHD..(6F,6FC)200811-201505

main47317-05240iZRT270..RHD..E;ADT27#,ZRT271,272..RHD..(6F,6FC)..(DCR,DCRL,HTWVM)200811-201111

WITH(VSC)

main47317-05250iZRT271,272..RHD..CVT200811-201505

main47317-05260iZRT270..LHD..N200811-201111

main47317-05270iZRT270..RHD..N200811-201111

main47317-05280iZRT271,272..LHD..CVT201505

main47317-05290iZRT271,272..RHD..CVT201505

47318TUBE, FRONT BRAKE, NO.8

main47318-02B60iWWT27#,ZRT27#..LHD..(4FC,6F)201505

main47318-02B70iWWT27#,ZRT270,271..RHD..6F201505

main47318-05220iZRT270..LHD..E;ADT27#,ZRT271,272..LHD..(ATM,MTM)..(E,G,N,V)200811-201111

WITH(VSC)

main47318-05220iADT270..LHD..F200811-201505

main47318-05230iZRT271,272..LHD..CVT200811-201505

main47318-05240iZRT270..RHD..E;ADT27#,ZRT271,272..RHD..(6F,6FC)..(DCR,DCRL,HTWVM)200811-201111

WITH(VSC)

main47318-05240iZRT272..RHD..HTWC200811-201505

main47318-05250iZRT271,272..RHD..CVT200811-201505

main47318-05260iZRT270..LHD..N200811-201111

main47318-05270iZRT270..RHD..N200811-201111

main47318-05280iZRT271,272..LHD..CVT201505

main47318-05290iZRT271,272..RHD..CVT201505

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10058iADT27#,ZRT27#200811-201505

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50020iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-W2017iADT270..LHD..F;ZRT272..RHD..HTWC200811-201210

main90947-W2039iADT27#,ZRT27#201210-201505

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-W2018iADT270..LHD..F;ZRT272..RHD..HTWC200811-201210

main90947-W2040iADT27#,ZRT27#201210-201505

47321TUBE, REAR BRAKE, NO.1

main47321-05090iADT270..LHD..F;ZRT272..RHD..HTWC200811-201210

main47321-05091iADT27#,ZRT27#201210-201505

main47321-05100iWWT27#,ZRT27#201505

47322TUBE, REAR BRAKE, NO.2

main47322-05090iADT270..LHD..F;ZRT272..RHD..HTWC200811-201210

main47322-05091iADT27#,ZRT27#201210-201505

main47322-05100iWWT27#,ZRT27#201505

47351BBRACKET, FLEXIBLE HOSE, NO.1

main47351-05050iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

NO.1

main47351-05050iWWT27#,ZRT27#201505

main47351-05060iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

NO.2

47352BBRACKET, FLEXIBLE HOSE, NO.2

main47351-05060iWWT27#,ZRT27#201505

main47352-05050iADT27#,ZRT27#200811-201505

NO.1

main47352-05060iADT27#,ZRT27#200811-201505

NO.2

47371ACLAMP, BRAKE TUBE, NO.1

main47371-05010iZRT270..RHD..N200811-201111

main47371-05020iZRT270..RHD..E;ADT27#,ZRT271,272..RHD..(DCR,DCRL,HTWVM)200811-201111

WITH(VSC)

main47371-05020iZRT272..RHD..HTWC200811-201505

main90464-00868iADT27#,ZRT27#..LHD..(ATM,MTM)..(E,G,N,V)200811-201505

main90949-01C82iWWT27#,ZRT270,272..LHD..(4FC,6F)201505

NO.1 & NO.2

main90949-01E18iZRT271..LHD201505

NO.1

main90949-01E19iZRT271..LHD201505

NO.2

main90949-01E20iWWT27#,ZRT270,271..RHD..6F201505

47371BCLAMP, BRAKE TUBE, NO.6

main90949-01D17iADT27#,ZRT27#200811-201505

47371CCLAMP, BRAKE TUBE, NO.7

main90949-01D29iADT27#,ZRT27#200811-201505

47371FCLAMP, BRAKE TUBE, NO.10

main90949-01D17iADT27#,ZRT27#200811-201505

47372CLAMP, BRAKE TUBE, NO.2

main90464-00868iZRT270..RHD..N200811-201111

main90464-00898iADT270..LHD..F200811-201309

main90464-00898iZRT270..LHD..E;ADT27#,ZRT271,272..LHD..(E,G,N,V)200811-201111

WITH(VSC)

main90464-00899iADT27#,ZRT27#..RHD200811-201505

main90464-00899iZRT270..RHD..E;ADT27#,ZRT271,272..RHD..(DCR,DCRL,HTWVM)200811-201111

WITH(VSC)

main90464-00900iZRT270..LHD..N200811-201111

main90464-00933iADT27#,ZRT27#..LHD201310-201505

main90949-01D92iZRT271,272..LHD..CVT201505

main90949-01E22iWWT27#,ZRT27#..RHD201505

47373BCLAMP, BRAKE TUBE, NO.3

main90461-10781iADT270..LHD..F200811-201505

main90464-00890iZRT270..RHD..N200811-201111

main90464-00892iZRT272..RHD..HTWC200811-201505

main90464-00892iZRT270..RHD..E;ADT27#,ZRT271,272..RHD..(DCR,DCRL,HTWVM)200811-201111

WITH(VSC)

main90949-01E21iWWT27#,ZRT27#..LHD201505-201509

main90949-01E23iWWT27#,ZRT27#..RHD201505

main90949-01E44iWWT27#,ZRT27#..LHD201510

47374BCLAMP, BRAKE TUBE, NO.4

main90461-10781iWWT27#,ZRT27#..LHD201505

main90949-01D43iZRT270..RHD..N200811-201111

WITH(VSC)

main90949-01D43iZRT272..RHD..HTWC200811-201505

main90949-01D45iZRT270..RHD..N200811-201111

main90949-01D71iZRT271,272..RHD..CVT200811-201505

main90949-01E20iZRT271..RHD..CVT201505

NO.2

main90949-01E24iWWT27#,ZRT270,271..RHD..6F201505

NO.1 & NO.2

main90949-01E24iZRT272..RHD201505

NO.1

47375CLAMP, BRAKE TUBE, NO.5

main90461-10781iZRT272..RHD..HTWC200811-201505

7701

9011908868

main90119-08868

90119W0030

main90119-W0030

90119W0053

main90119-W0053

9046808035

main90468-08035

9046808040

main90468-08040

9167180816

main91671-80816

35 parts on this diagram · 14 diagrams in section
