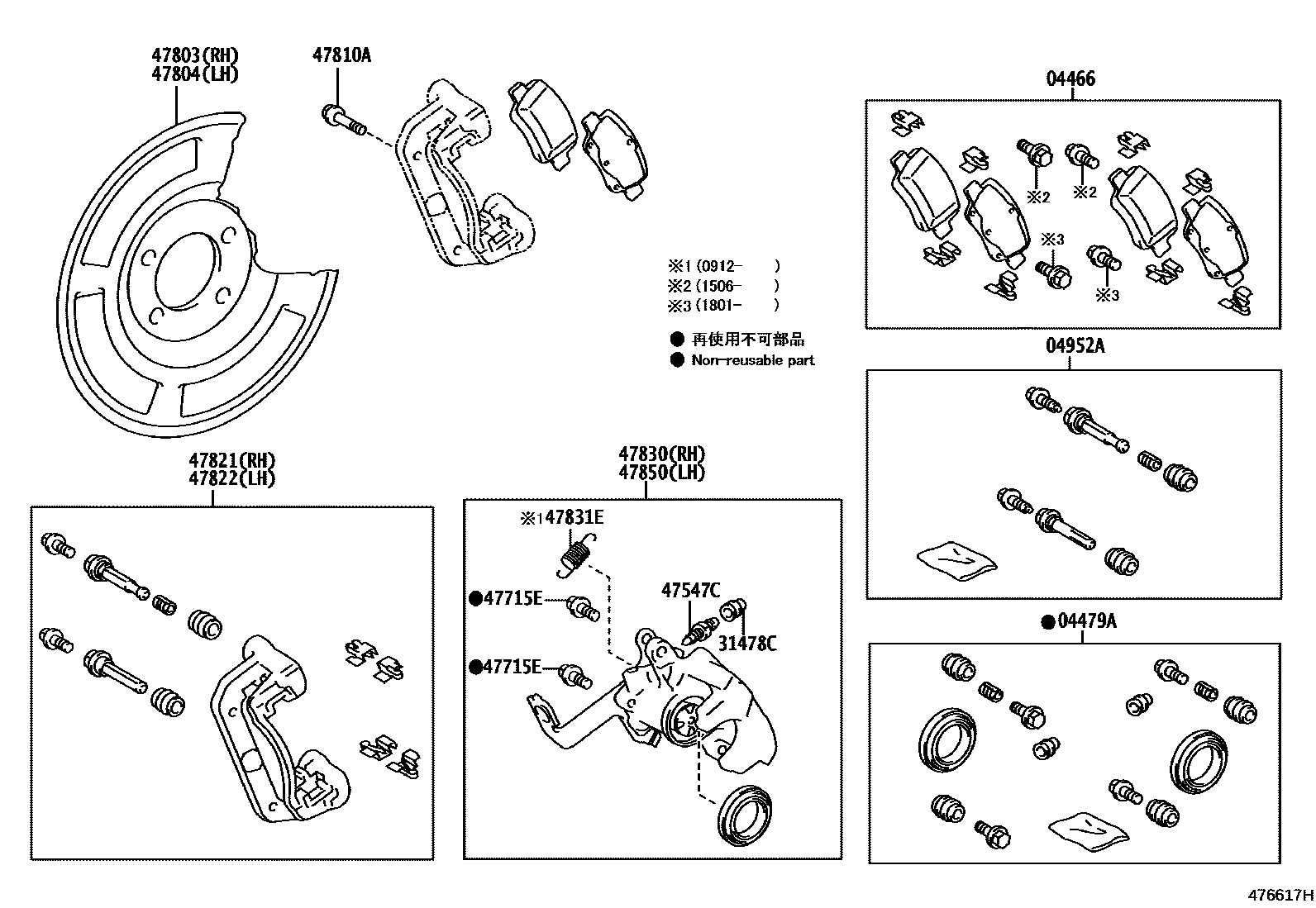

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-05040iADT27#,ZRT27#200811-200905

MARK GA 3409

sub04466-05041

main04466-05041iADT270..LHD..F;ZRT272..RHD..HTWC200905-201506

MARK GA 3409

sub04466-05042

main04466-05042iWWT27#,ZRT27#201506-201801

MARK GA 3409

sub04466-05043

main04466-05043iWWT27#,ZRT27#201801

MARK GA 3409

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-02310iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

04952APIN KIT, REAR DISC BRAKE CYLINDER SLIDE

main04952-02220iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main90069-39001iADT27#,ZRT27#200811-201505

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main90069-39000iADT27#,ZRT27#200811-201505

47715EBOLT(FOR REAR DISC BRAKE CYLINDER SLIDE)

main47715-05060iADT27#,ZRT27#200811-201505

sub47715-28060

47803COVER SUB-ASSY, DISC BRAKE DUST, REAR RH

main47881-05020iADT27#,ZRT27#200811-200911

sub47881-05021

main47881-05021iADT270..LHD..F;ZRT272..RHD..HTWC200912-201505

47804COVER SUB-ASSY, DISC BRAKE DUST, REAR LH

main47882-05010iADT27#,ZRT27#200811-200911

sub47882-05011

main47882-05011iADT270..LHD..F;ZRT272..RHD..HTWC200912-201505

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-10404iADT27#,ZRT27#200811-200912

main90105-12174iADT27#,ZRT27#200912-201505

47821MOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-09040iADT27#,ZRT27#200811-200912

main47821-09041iADT270..LHD..F;ZRT272..RHD..HTWC200912-201505

47822MOUNTING, REAR DISC BRAKE CYLINDER, LH

main47822-09040iADT27#,ZRT27#200811-200912

main47822-09041iADT270..LHD..F;ZRT272..RHD..HTWC200912-201505

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-05030iADT27#,ZRT27#200811-201703

sub47830-05050

main47830-05050iWWT27#,ZRT27#201703

47831ESPRING(FOR REAR DISC BRAKE)

main90069-51023iADT270..LHD..F;ZRT272..RHD..HTWC200912-201505

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-05030iADT27#,ZRT27#200811-201703

sub47850-05050

main47850-05050iWWT27#,ZRT27#201703

14 parts on this diagram · 1 diagram in section
