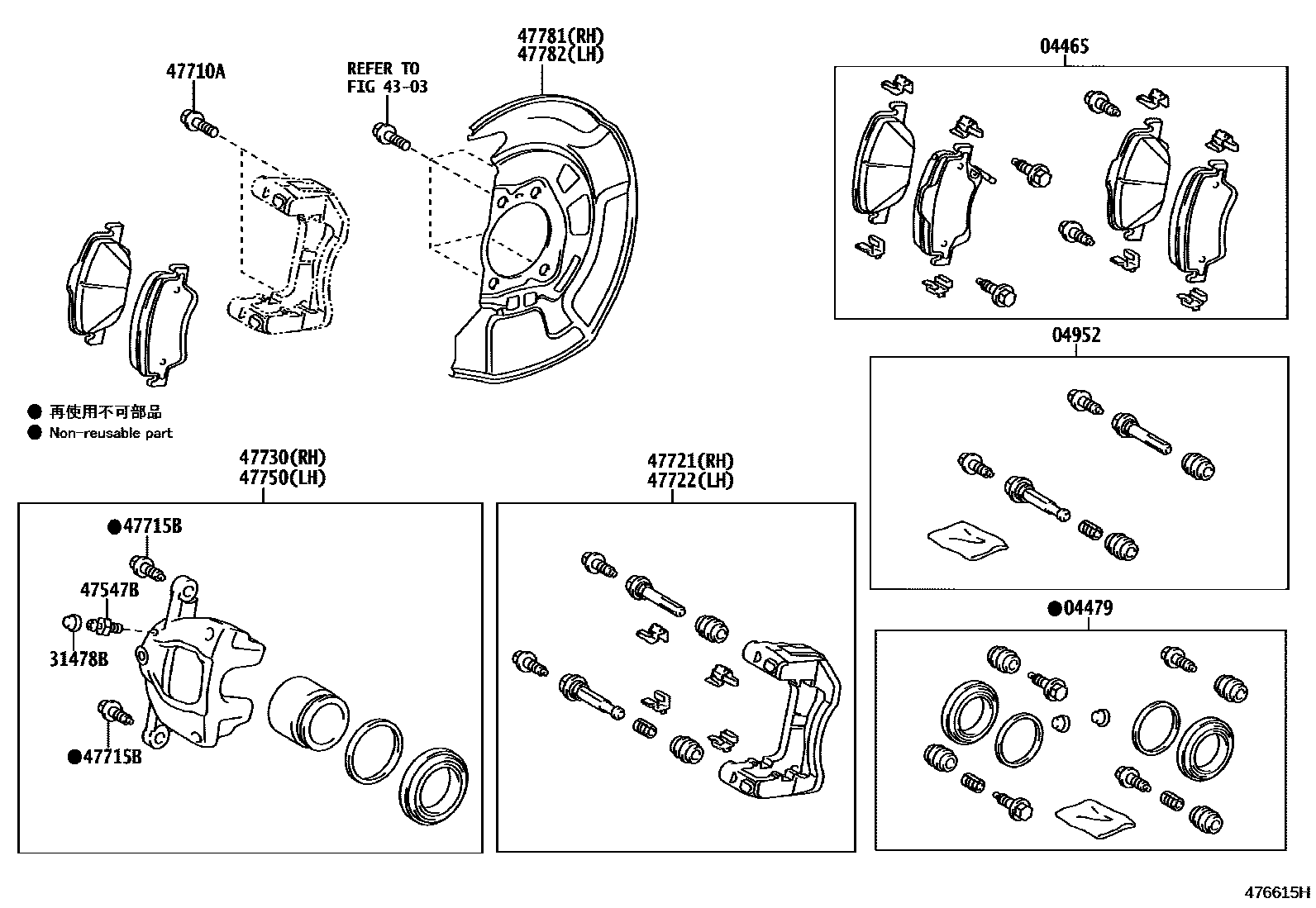

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04465PAD KIT, DISC BRAKE, FRONT

main04465-02280iADT270,ZRT27#¥0200811-201008

MARK JURID 672

sub04465-0F010¥12,600

main04465-05260iADT271¥0200811-201011

MARK JURID 672

sub04465-05300¥11,800

main04465-05300iADT271¥11,800201011-201506

MARK TEXTAR T4146

sub04465-05301

main04465-05301iWWT271201506-201706

MARK TEXTAR T4146

sub04465-05302¥12,400

main04465-05302iWWT271¥12,400201706

MARK TEXTAR T4146

main04465-0F010iADT270,ZRT27#¥12,600201009-201506

MARK AK NS378H

sub04465-0F011¥11,400

main04465-0F011iWWT270,ZRT27#¥11,400201506-201706

MARK AK NS378H

sub04465-0F012¥11,400

main04465-0F012iWWT270,ZRT27#¥11,400201706

MARK AK NS378H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-02160iADT270..LHD..F;ZRT272..RHD..HTWC¥3,200200811-201506

main04478-02161iWWT270,ZRT27#¥3,200201505

04952PIN KIT, FRONT DISC BRAKE CYLINDER SLIDE

main04952-02220iADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)¥2,240200811-201506

main04952-02221iWWT270,ZRT27#¥2,030201505

main04952-02360iWWT271201506

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main90069-39001iADT270..LHD..F;ZRT272..RHD..HTWC¥170200811-201505

4303

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main90069-39000iADT270..LHD..F;ZRT272..RHD..HTWC¥310200811-201505

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208iADT270..LHD..F;ZRT272..RHD..HTWC¥160200811-201505

*12-1.25PX29.5-23

47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main47715-05060iADT27#,ZRT27#¥750200811-201505

sub47715-28060¥620

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-09430iADT271200811-201506

sub47721-09431

main47721-09431iWWT271201506

main47721-09480iADT270,ZRT27#¥9,800200811-201505

main47721-09481iWWT270,ZRT27#¥8,100201505

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-09150iWWT271200811-201506

sub47722-09151

main47722-09151iWWT271201506

main47722-09180iADT270,ZRT27#¥9,800200811-201505

main47722-09181iWWT270,ZRT27#201505

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-02361iADT270..RHD;ZRT27#..HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)¥37,000200811-201505

main47730-05110iADT271200811-201505

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-02361iWWT270,ZRT27#¥37,000200811-201505

main47750-05110iWWT271200811-201505

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-02150iADT270,ZRT27#¥1,400200811-201505

main47781-05060iADT271200811-201505

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-02150iADT270,ZRT27#¥1,400200811-201505

main47782-05060iWWT271200811-201505

14 parts on this diagram · 2 diagrams in section
