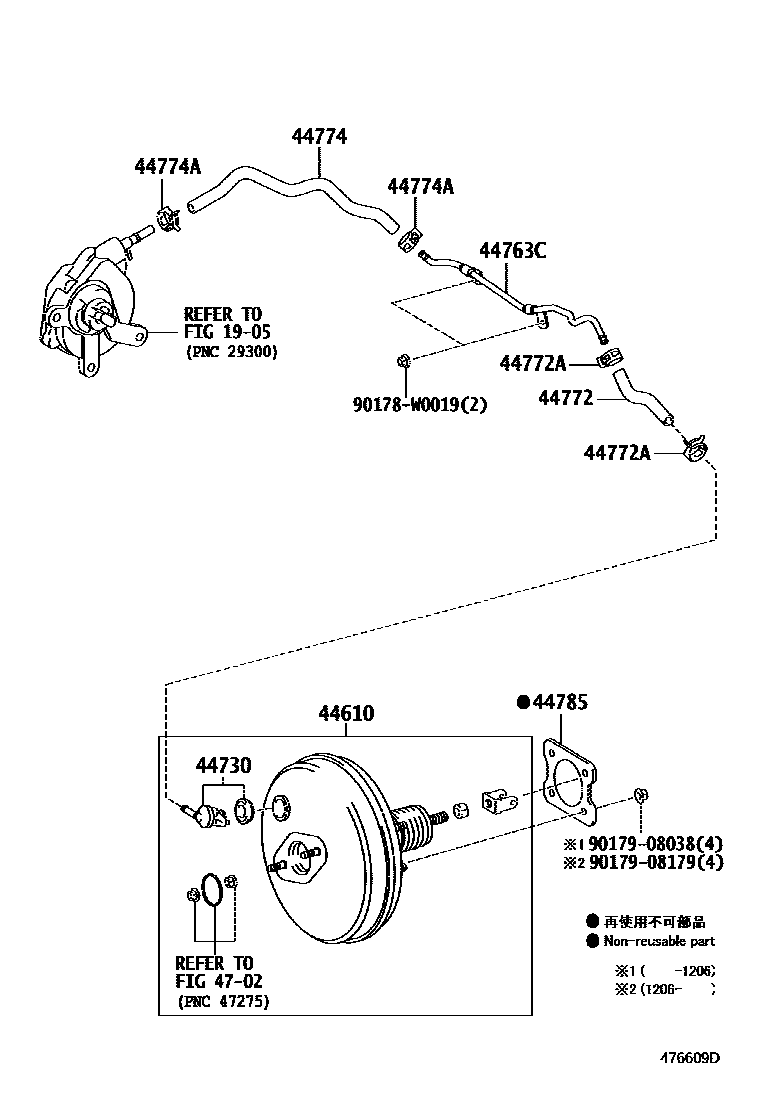

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

1905

44610BOOSTER ASSY, BRAKE

main44610-09500iADT27#,ZRT27#..LHD200811-201301

sub44610-09501

main44610-09500iZRT270..LHD..E;ADT27#,ZRT271,272..LHD..(E,G,N,V)200811-201111

WITH(VSC)

sub44610-09501

main44610-09501iADT27#,ZRT27#..LHD201301-201505

sub44610-09502

main44610-09502iZRT27#..LHD201505

main44610-09510iZRT270..LHD..N200811-201006

main44610-09520iADT27#,ZRT27#..RHD200811-201301

sub44610-09521

main44610-09520iZRT270..RHD..E;ADT27#,ZRT271,272..RHD..(DCR,DCRL,HTWVM)200811-201111

WITH(VSC)

sub44610-09521

main44610-09521iADT27#,ZRT27#..RHD201301-201505

sub44610-09522

main44610-09522iZRT27#..RHD201505

main44610-09530iZRT270..RHD..N200811-201006

main44610-09770iZRT270..LHD..N201006-201111

sub44610-09771

main44610-09780iZRT270..RHD..N201006-201111

sub44610-09781

main44610-09C90iWWT27#..LHD201505

main44610-09D00iWWT27#..RHD201505

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-09020iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

44763CTUBE, HOSE TO HOSE, NO.2

main44763-12400iADT27#,ZRT27#..LHD200811-201505

main44763-12440iZRT27#..RHD200811-201505

main44763-64030iWWT27#201505

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-02340iZRT27#..LHD201712

main44772-02350iZRT27#..RHD201712

main44772-12580iADT27#,ZRT27#..LHD..(E,G,N,V)200811-201711

main44772-12620iZRT27#..RHD200811-201711

main44772-12640iADT27#..RHD200811-201505

main44772-64010iWWT27#..LHD201505

main44772-64020iWWT27#..RHD201505

44772ACLIP(FOR CHECK VALVE TO CONNECTOR TUBE)

main90466-W0008iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

main90467-16014iWWT27#201505

44774HOSE, UNION TO CONNECTOR TUBE

main44771-64010iWWT27#..LHD201505

main44774-02410iZRT27#..LHD201712

main44774-02430iZRT27#..RHD201712

main44774-12530iZRT27#..LHD200811-201711

sub44774-02410

main44774-12560iZRT27#..RHD..HTWVM200811-201711

main44774-12580iADT270..LHD..F200811-201505

sub44774-64050

main44774-64060iWWT27#..RHD201505

44774ACLIP(FOR UNION TO CONNECTOR TUBE HOSE)

main90466-W0008iZRT27#;ADT27#..LHD200811-201505

main90467-16014iWWT27#201505

44785GASKET, BRAKE BOOSTER

main44785-05020iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

4702

90178W0019

main90178-W0019

9017908038

main90179-08038

9017908179

main90179-08179
