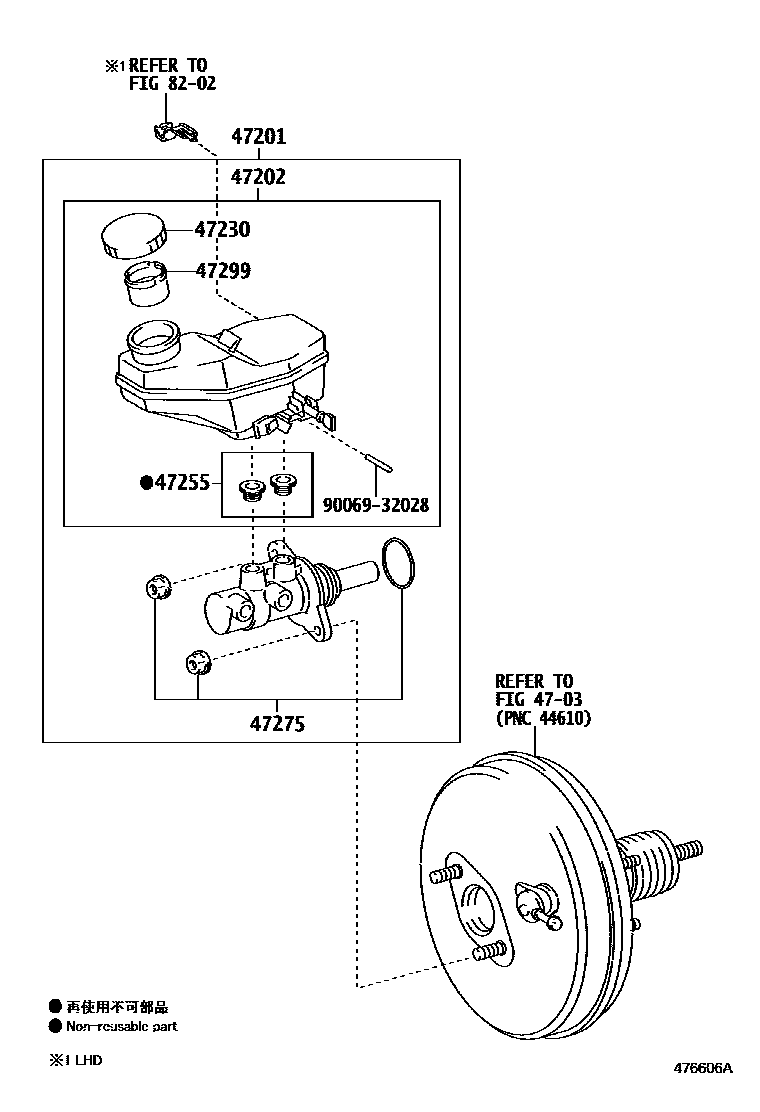

BRAKE MASTER CYLINDER

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-09370iADT27#,ZRT27#..LHD..(ATM,MTM)200811-201505

main47201-09370iZRT270..LHD..E;ADT27#,ZRT271,272..LHD..(ATM,MTM)..(E,G,N,V)200811-201111

WITH(VSC)

main47201-09380iZRT271,272..LHD..CVT200811-201505

main47201-09390iZRT270..LHD..N200811-201111

main47201-09400iZRT272..RHD..HTWC200811-201505

main47201-09400iZRT270..RHD..E;ADT27#,ZRT271,272..RHD..(DCR,DCRL,HTWVM)200811-201111

WITH(VSC)

main47201-09410iZRT270..RHD..N200811-201111

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-09090iWWT27#,ZRT27#..LHD..(4FC,6F)200811-201505

main47220-09100iZRT272..RHD..HTWC200811-201505

main47220-09120iZRT271,272..LHD..CVT200811-201505

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-0D010iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-09040iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

47275GASKET, BRAKE MASTER CYLINDER

main47275-09010iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-02160iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

8202

9006932028

main90069-32028

9 parts on this diagram · 1 diagram in section
