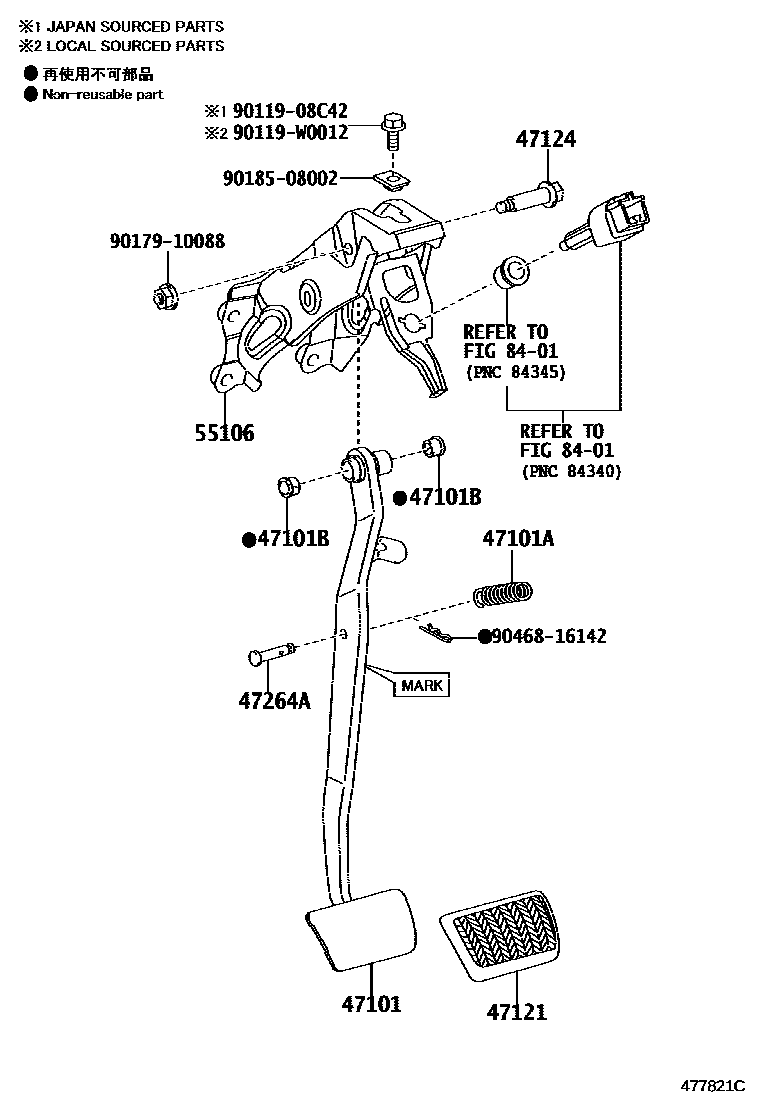

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-12710iWWT27#,ZRT270,271..RHD..6F201505

main47101-12710iADT27#,ZRT27#..RHD..6F201409-201505

MARK=6RM

main47101-12720iZRT271,272..RHD..CVT201505

main47101-12720iADT271,ZRT271,272..RHD..(ATM,CVT)201409-201505

MARK=6RA

main47101-20700iADT27#,ZRT27#..RHD..6F..(DCR,DCRL,HTWVM)200811-201111

main47101-20700iADT27#,ZRT27#..RHD..6F201111-201409

MARK=9RM

main47101-20710iZRT272..RHD..4FC200811-201111

main47101-20710iADT271,ZRT271,272..RHD..(ATM,CVT)201111-201409

MARK=9RA

main47101-20720iADT270..LHD..F200811-201505

main47101-20730iADT271,ZRT271,272..LHD..(ATM,CVT)200811-201505

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-15005iADT270..LHD..F;ZRT272..RHD..HTWC200811-201209

main90507-15007iADT27#,ZRT27#201210-201505

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

47121PAD, BRAKE PEDAL

main31321-42010iADT270..LHD..F;ZRT272..RHD..6F..HTWC200811-201505

main47121-42010iZRT271,272..ATM,CVT200811-201505

47124SHAFT, BRAKE PEDAL

main90109-10174iADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)200811-201505

47264APIN(FOR PUSH ROD)

main47148-33011iADT27#,ZRT27#..LHD200811-201505

main90249-08256iADT270..LHD..F200811-201407

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-12680iADT27#,ZRT27#..RHD..(DCR,DCRL,HTWVM)200811-201505

main55106-12690iWWT27#,ZRT27#..LHD200811-201505

8401

9011908C42

main90119-08C42

90119W0012

main90119-W0012

9017910088

main90179-10088

9018508002

main90185-08002

9046816142

main90468-16142

13 parts on this diagram · 1 diagram in section
