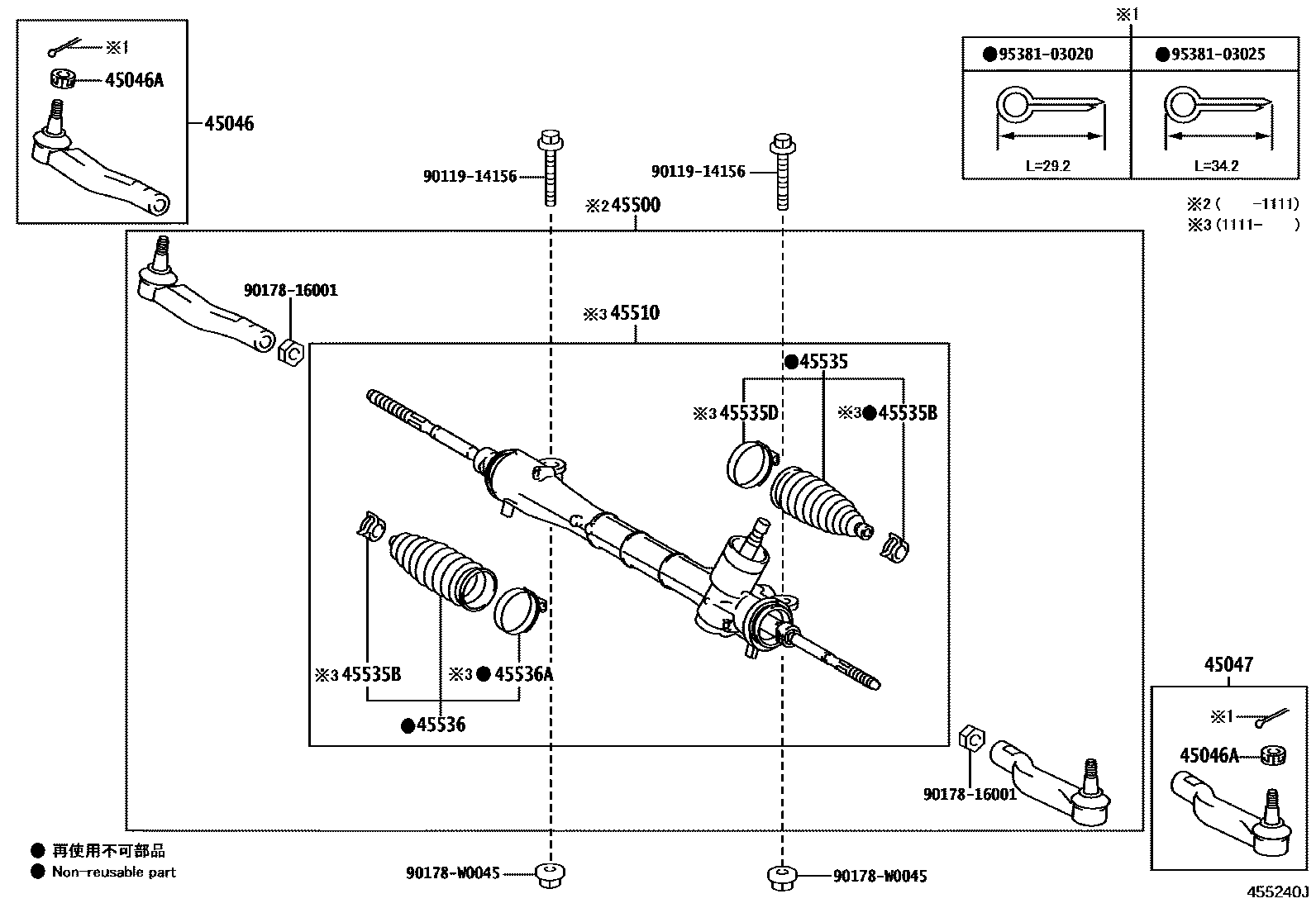

FRONT STEERING GEAR & LINK

0001 1 0002 1

45046END SUB-ASSY, TIE ROD, RH

main45046-09660iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

45047END SUB-ASSY, TIE ROD, LH

main45047-09320iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

45500LINK ASSY, STEERING

main45500-05040iADT270..LHD..F200811-201111

sub45510-05080

sub45046-09660

sub45047-09320

sub90178-16001

main45500-05050iZRT272..RHD..HTWC200811-201111

sub45510-05090

sub45046-09660

sub45047-09320

sub90178-16001

45510GEAR ASSY, STEERING

main45510-05100iADT27#,ZRT27#..LHD201111-201505

main45510-05110iADT27#,ZRT27#..RHD201111-201505

45535BOOT, STEERING RACK, NO.1

main45535-09120iADT27#,ZRT27#200811-201505

main45535-09440iWWT27#,ZRT27#201505

45535BCLIP(FOR STEERING RACK BOOT)

main45537-02010iADT27#,ZRT27#201111-201505

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main45538-05010iWWT27#,ZRT27#201505

main45538-47010iADT27#,ZRT27#201111-201505

45536BOOT, STEERING RACK, NO.2

main45535-09120iADT27#,ZRT27#200811-201505

main45535-09440iWWT27#,ZRT27#201505

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main45538-05010iWWT27#,ZRT27#201505

main45538-47010iADT27#,ZRT27#201111-201505

9011914156

main90119-14156

9017816001

main90178-16001

90178W0045

main90178-W0045

9538103020

main95381-03020

9538103025

main95381-03025

15 parts on this diagram · 2 diagrams in section
