STEERING COLUMN & SHAFT

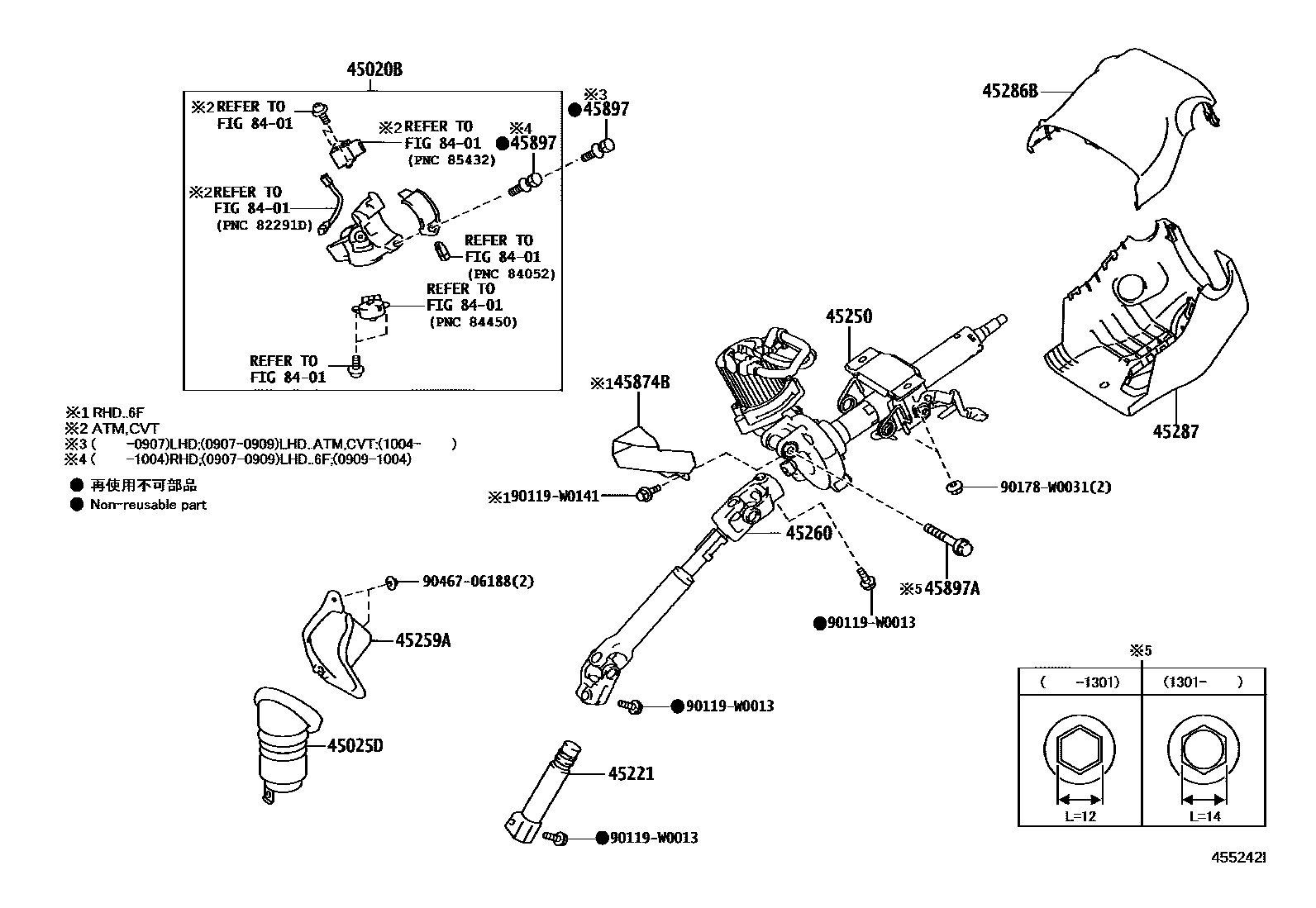

Parts diagram
45020BACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK
main45020-02160i200811-200908
main45020-02170i200811-200906
main45020-02230i200907-201004
sub45020-02231
sub45897-12050
main45020-02231i201004-201111
main45020-02231i201111-201505
SOL-PLUS GRADE(NICKEL)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&SEAT COVER MATERIAL-LEATHER(PERFORATED)
main45020-02231i201111-201505
SOL-PLUS GRADE(NICKEL 2)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&SEAT COVER MATERIAL-LEATHER(PERFORATED)
main45020-02231i201111-201505
SOL-PLUS GRADE(SILVER 2)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&SEAT COVER MATERIAL-LEATHER(PERFORATED)
main45020-02231i201111-201505
BASE PACKAGE&WIRELESS DOOR LOCK-WITH
main45020-02231i201505-201807
WIRELESS DOOR LOCK-WITH
main45020-02240i200909-201004
sub45020-02241
sub45897-12050
main45020-02241i201111-201505
SOL-PLUS GRADE(SILVER)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&SEAT COVER MATERIAL-LEATHER(PERFORATED)
main45020-02241i201004-201111
main45020-02241i201505-201807
WIRELESS DOOR LOCK-WITH
main45020-02241i201111-201505
SOL GRADE&WIRELESS DOOR LOCK-WITH
main45020-02241i201111-201505
SOL-PLUS GRADE(NICKEL)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&SEAT COVER MATERIAL-LEATHER(PERFORATED)
main45020-02280i200811-201004
sub45020-02281
sub45897-12050
main45020-02281i201111-201505
SOL-PLUS GRADE(SILVER 2)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&SEAT COVER MATERIAL-LEATHER(PERFORATED)
main45020-02281i201004-201111
main45020-02281i201111-201505
SOL-PLUS GRADE(NICKEL)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&SEAT COVER MATERIAL-LEATHER(PERFORATED)
main45020-02281i201111-201505
BASE PACKAGE&WIRELESS DOOR LOCK-WITH
main45020-02281i201111-201505
SOL-PLUS GRADE(NICKEL 2)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&SEAT COVER MATERIAL-LEATHER(PERFORATED)
main45020-02281i201505-201807
WIRELESS DOOR LOCK-WITH&OUTSIDE REAR VIEW MIRROR-MANUAL RETRACTABLE
main45020-05090i200811-201004
sub45020-05091
sub45897-12050
main45020-05091i201505-201807
WIRELESS DOOR LOCK-WITH&OUTSIDE REAR VIEW MIRROR-MANUAL RETRACTABLE
main45020-05091i201111-201505
SOL GRADE&WIRELESS DOOR LOCK-WITH
main45020-05091i201004-201111
45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
main45025-02080i200811-201505
main45025-02090i200811-201505
45221SHAFT, STEERING INTERMEDIATE
main45221-05030i201111-201505
main45221-05040i200811-201111
45250COLUMN ASSY, STEERING
main45250-05780i200811-201101
sub45250-05781
main45250-05781i201102-201109
sub45250-05860
main45250-05820i200811-201101
sub45250-05821
main45250-05821i201102-201109
sub45250-05880
main45250-05860i201111-201501
SOL-PLUS GRADE(SILVER 2)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&SEAT COVER MATERIAL-LEATHER(PERFORATED)
sub45250-05861
main45250-05860i201109-201111
sub45250-05861
main45250-05860i201111-201501
SOL GRADE&WIRELESS DOOR LOCK-WITH
sub45250-05861
main45250-05860i201111-201501
SOL-PLUS GRADE(NICKEL)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&SEAT COVER MATERIAL-LEATHER(PERFORATED)
sub45250-05861
main45250-05860i201111-201501
SOL-PLUS GRADE(SILVER)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&SEAT COVER MATERIAL-LEATHER(PERFORATED)
sub45250-05861
main45250-05860i201111-201501
BASE PACKAGE&WIRELESS DOOR LOCK-WITH
sub45250-05861
main45250-05860i201111-201501
SOL-PLUS GRADE(NICKEL 2)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&SEAT COVER MATERIAL-LEATHER(PERFORATED)
sub45250-05861
main45250-05861i201502-201505
SOL-PLUS GRADE(NICKEL)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&SEAT COVER MATERIAL-LEATHER(PERFORATED)
main45250-05861i201502-201505
SOL-PLUS GRADE(SILVER)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&SEAT COVER MATERIAL-LEATHER(PERFORATED)
main45250-05861i201502-201505
BASE PACKAGE&WIRELESS DOOR LOCK-WITH
main45250-05861i201502-201505
SOL-PLUS GRADE(NICKEL 2)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&SEAT COVER MATERIAL-LEATHER(PERFORATED)
main45250-05861i201502-201505
SOL-PLUS GRADE(SILVER 2)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&SEAT COVER MATERIAL-LEATHER(PERFORATED)
main45250-05861i201502-201505
SOL GRADE&WIRELESS DOOR LOCK-WITH
main45250-05861i201505
WIRELESS DOOR LOCK-WITH
main45250-05870i201111-201501
WIRELESS DOOR LOCK-WITH&SEAT COVER MATERIAL-LEATHER(PERFORATED)
sub45250-05871
main45250-05870i201111-201501
WIRELESS DOOR LOCK-WITH(SMART ENTRY)
sub45250-05871
main45250-05870i201111-201501
SEAT COVER MATERIAL-LEATHER(PERFORATED)
sub45250-05871
main45250-05871i201502-201505
WIRELESS DOOR LOCK-WITH&SEAT COVER MATERIAL-LEATHER(PERFORATED)
main45250-05871i201502-201505
WIRELESS DOOR LOCK-WITH(SMART ENTRY)
main45250-05871i201502-201505
SEAT COVER MATERIAL-LEATHER(PERFORATED)
main45250-05880i201111-201501
SOL-PLUS GRADE(NICKEL)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&SEAT COVER MATERIAL-LEATHER(PERFORATED)
sub45250-05881
main45250-05880i201111-201501
SOL GRADE&WIRELESS DOOR LOCK-WITH
sub45250-05881
main45250-05880i201111-201501
SOL-PLUS GRADE(SILVER 2)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&SEAT COVER MATERIAL-LEATHER(PERFORATED)
sub45250-05881
main45250-05880i201111-201501
SOL-PLUS GRADE(NICKEL 2)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&SEAT COVER MATERIAL-LEATHER(PERFORATED)
sub45250-05881
main45250-05880i201111-201501
BASE PACKAGE&WIRELESS DOOR LOCK-WITH
sub45250-05881
main45250-05880i201109-201111
sub45250-05881
main45250-05881i201502-201505
SOL GRADE&WIRELESS DOOR LOCK-WITH
main45250-05881i201502-201505
SOL-PLUS GRADE(NICKEL)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&SEAT COVER MATERIAL-LEATHER(PERFORATED)
main45250-05881i201502-201505
BASE PACKAGE&WIRELESS DOOR LOCK-WITH
main45250-05881i201502-201505
SOL-PLUS GRADE(NICKEL 2)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&SEAT COVER MATERIAL-LEATHER(PERFORATED)
main45250-05881i201502-201505
SOL-PLUS GRADE(SILVER 2)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&SEAT COVER MATERIAL-LEATHER(PERFORATED)
main45250-05881i201505
WIRELESS DOOR LOCK-WITH&OUTSIDE REAR VIEW MIRROR-MANUAL RETRACTABLE
main45250-05890i201111-201501
WIRELESS DOOR LOCK-WITH&SEAT COVER MATERIAL-LEATHER(PERFORATED)
sub45250-05891
main45250-05890i201111-201501
SEAT COVER MATERIAL-LEATHER(PERFORATED)
sub45250-05891
main45250-05890i201111-201501
WIRELESS DOOR LOCK-WITH(SMART ENTRY)
sub45250-05891
main45250-05891i201502-201505
WIRELESS DOOR LOCK-WITH(SMART ENTRY)
main45250-05891i201502-201505
WIRELESS DOOR LOCK-WITH&SEAT COVER MATERIAL-LEATHER(PERFORATED)
main45250-05891i201502-201505
SEAT COVER MATERIAL-LEATHER(PERFORATED)
45259ASHEET, COLUMN HOLE COVER SILENCER
main45259-02070i200811-201505
main45259-02080i200811-201505
45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2
main45260-05090i201111-201505
main45260-05100i201505
main45260-05130i200811-201111
45286BCOVER, STEERING COLUMN, UPR
main45286-05090-C0i201111-201505
BLACK,TRIM1#,2#,4#
main45286-05090-C0i201111-201505
SOL GRADE&WIRELESS DOOR LOCK-WITH,BLACK,TRIM1#,2#,4#
main45286-05090-C0i201111-201505
BASE PACKAGE&WIRELESS DOOR LOCK-WITH,BLACK,TRIM1#,2#,4#
main45286-05090-C0i200811-201111
BLACK,TRIM2#,4#
main45286-05090-C0i200811-201505
BLACK,TRIM2#
main45286-05090-C1i201505
WIRELESS DOOR LOCK-WITH&OUTSIDE REAR VIEW MIRROR-MANUAL RETRACTABLE,EU BLACK,TRIM1#,2#,4#
main45286-05090-C1i201505
EU BLACK,TRIM2#
main45286-05090-C1i201505
EU BLACK,TRIM1#,2#,4#
main45286-05090-C1i201505
WIRELESS DOOR LOCK-WITH,EU BLACK,TRIM1#,2#,4#
main45286-05110-C0i201111-201505
BLACK,TRIM1#,2#,4#
main45286-05110-C0i201111-201505
BLACK,TRIM2#,4#
main45286-05110-C0i201111-201505
WIRELESS DOOR LOCK-WITH&SEAT COVER MATERIAL-LEATHER(PERFORATED),BLACK,TRIM2#,4#
main45286-05110-C0i201111-201505
WIRELESS DOOR LOCK-WITH(SMART ENTRY),BLACK,TRIM1#,2#,4#
main45286-05110-C1i201505
EU BLACK,TRIM1#,2#,4#
main45286-05110-C1i201505
WIRELESS DOOR LOCK-WITH(SMART ENTRY),EU BLACK,TRIM1#,2#,4#
45287COVER, STEERING COLUMN, LWR
main45287-05141-C0i201111-201505
SOL GRADE&WIRELESS DOOR LOCK-WITH,BLACK,TRIM1#,2#,4#
main45287-05141-C0i201111-201505
BASE PACKAGE&WIRELESS DOOR LOCK-WITH,BLACK,TRIM1#,2#,4#
main45287-05141-C0i200811-201505
BLACK,TRIM2#
main45287-05141-C0i200811-201111
BLACK,TRIM2#,4#
main45287-05141-C0i201111-201505
BLACK,TRIM1#,2#,4#
main45287-05141-C1i201505
EU BLACK,TRIM1#,2#,4#
main45287-05141-C1i201505
WIRELESS DOOR LOCK-WITH,EU BLACK,TRIM1#,2#,4#
main45287-05141-C1i201505
WIRELESS DOOR LOCK-WITH&OUTSIDE REAR VIEW MIRROR-MANUAL RETRACTABLE,EU BLACK,TRIM1#,2#,4#
main45287-05141-C1i201505
EU BLACK,TRIM2#
main45287-05151-C0i201111-201505
BLACK,TRIM2#,4#
main45287-05151-C0i201111-201505
BLACK,TRIM1#,2#,4#
main45287-05151-C0i201111-201505
WIRELESS DOOR LOCK-WITH&SEAT COVER MATERIAL-LEATHER(PERFORATED),BLACK,TRIM2#,4#
main45287-05151-C0i201111-201505
WIRELESS DOOR LOCK-WITH(SMART ENTRY),BLACK,TRIM1#,2#,4#
main45287-05151-C1i201505
WIRELESS DOOR LOCK-WITH(SMART ENTRY),EU BLACK,TRIM1#,2#,4#
main45287-05151-C1i201505
EU BLACK,TRIM1#,2#,4#
45874BPROTECTOR, STEERING COLUMN, NO.1
main45874-05020i200811-201505
45897BOLT, STEERING LOCK SET
main45897-12020i200811-200909
main45897-12050i201111-201505
SEAT COVER MATERIAL-LEATHER(PERFORATED)
main45897-12050i200811-201111
main45897-12050i201111-201505
SOL-PLUS GRADE(SILVER)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&SEAT COVER MATERIAL-LEATHER(PERFORATED)
main45897-12050i201111-201505
SOL-PLUS GRADE(NICKEL)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&SEAT COVER MATERIAL-LEATHER(PERFORATED)
45897ABOLT, TILT STEERING PAWL SET
main45897-20020i200811-201212
main90119-10981i201301-201610
main90119-10981i201610
(J)
main90119-W0215i201610
(L)
8401
90119W0013
main90119-W0013
90119W0141
main90119-W0141
90178W0031
main90178-W0031
9046706188
main90467-06188

16 parts on this diagram · 3 diagrams in section
