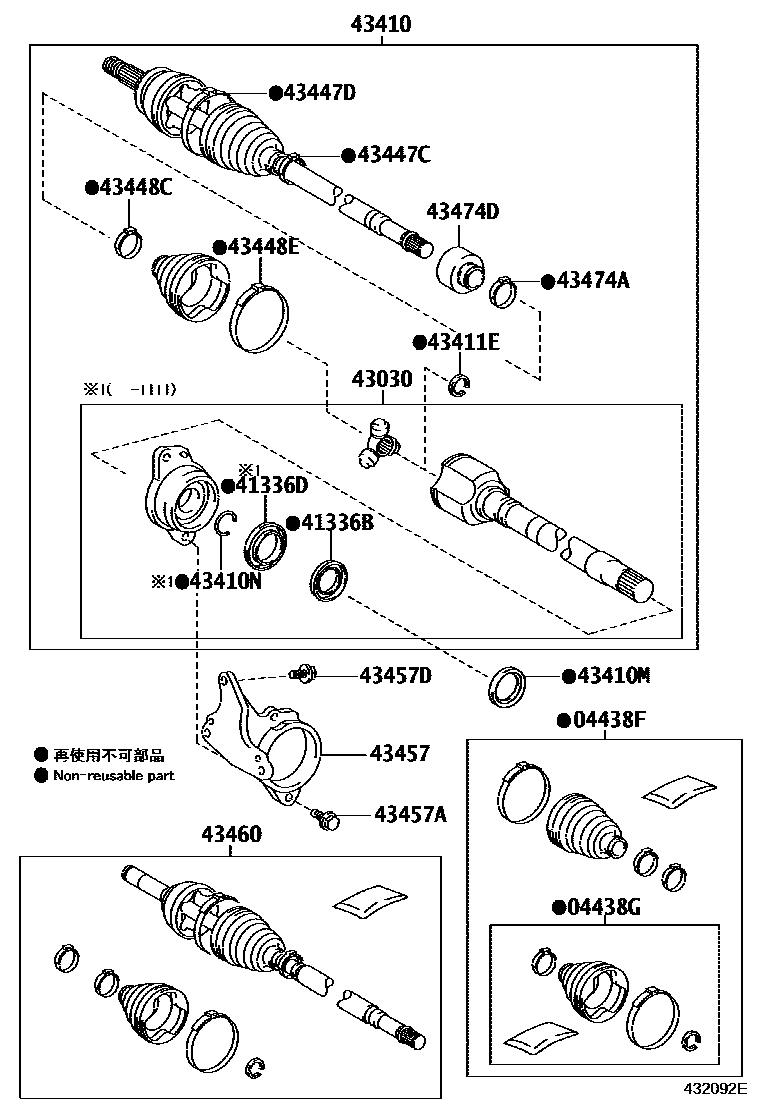

FRONT DRIVE SHAFT

0001 1RH 0002 1RH 0003 1RH 0004 1RH 0005 1LH 0006 1LH 0007 1LH 0008 1LH 0009 1

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04427-05250iZRT272¥9,000200811-201505

main04427-05260iADT270200811-201505

main04427-05270iADT271200811-201505

main04427-05290iWWT27#¥9,000201505

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-05110iZRT270,271200811-201505

main04437-05120iZRT272..HTWVM;ZRT272..LHD..HTWC¥5,500200811-201505

main04437-05130iADT270..RHD;ADT270..LHD..(E,N)200811-201505

main04437-05140iADT271200811-201505

main04438-0F050iWWT27#201505

41336BCOVER, DUST(FOR FRONT DRIVE SHAFT)

main41336-05080iADT270..LHD..F;ZRT272..RHD..HTWC¥740200811-201505

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-05080iWWT27#,ZRT272¥740201505

main41336-05140iZRT270,271¥380200811-201505

main43458-05020iADT270..RHD;ADT271,ZRT272..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)¥680200811-201111

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43030-05220iZRT272..HTWVM;ZRT272..LHD..HTWC¥32,400200811-201505

main43030-05230iADT270..RHD;ADT270..LHD..(E,N)200811-201505

main43030-05240iADT271200811-201505

main43030-0F020iWWT27#201505

main43040-05150iZRT270,271200811-201505

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-05440iWWT27#201505

main43410-05450iZRT270,271200811-201111

sub43410-05451

main43410-05451iZRT270,271201111-201505

main43410-05460iZRT272..HTWVM;ZRT272..LHD..HTWC¥82,800200811-201111

sub43410-05461¥68,900

main43410-05461iZRT272¥68,900201111-201505

main43410-05480iADT270..RHD;ADT270..LHD..(E,N)200811-201111

sub43410-05481

main43410-05481iADT270201111-201505

main43410-05490iADT271200811-201112

sub43410-05491¥85,400

main43410-05491iADT271¥85,400201201-201505

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-35055iZRT271..CVT¥400200811-201504

sub90311-35069¥400

main90311-35062iZRT270,271..6F¥350200811-201011

*201

sub90311-35065¥270

main90311-35062iZRT270..RHD..WG;ZRT270..LHD..WG..E¥350200905-201011

*202

sub90311-35065¥270

main90311-35065iZRT270,271..6F¥270201111-201306

*201

main90311-35065iZRT270,271..6F¥270201505-201807

main90311-35065iZRT270,271..6F¥270201111-201505

*202

main90311-35065iZRT270,271..6F¥270201011-201111

*201,*202

main90311-35069iZRT271..CVT¥400201505-201807

main90311-40026iZRT272..CVT¥310200811-201303

sub90311-40041¥310

main90311-40029iADT271..6FC¥400200902-201302

sub90311-40038¥400

main90311-40030iADT27#,ZRT272..6F¥310200811-201102

sub90311-40036¥310

main90311-40031iZRT272..HTWC¥470200811-201807

main90311-40031iZRT272..HTWC¥470201111-201309

*344

main90311-40031iZRT272..HTWC¥470201309-201505

*345

main90311-40036iADT270..RHD;ADT271,ZRT272..6F..(DCR,DCRL,HTWVM);ADT270,ZRT272..LHD..6F..(E,N)..(DCR,HTWC)¥310201102-201805

main90311-40038iADT271..6FC¥400201302-201505

main90311-40041iZRT272..HTWVM¥310201303-201807

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90080-52055iZRT270,271¥90200811-201505

main90080-52106iADT270..LHD..F;ZRT272..RHD..HTWC¥160200811-201111

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-05080iZRT272..RHD..HTWC¥60200811-201505

main43425-05110iADT271;ADT270..RHD;ADT270..LHD..(E,N)200811-201505

main43425-0F050iWWT27#201505

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-02110iADT270..RHD;ADT270..LHD..(E,N)¥310200811-201505

main42345-05140iZRT27#¥250200811-201505

main42345-05230iADT271¥320200811-201505

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-02100iADT270..LHD..F¥440200811-201505

main42345-05130iZRT272..RHD..HTWC¥260200811-201505

main42345-05240iWWT27#¥360201505

main42345-06250iADT271¥800200811-201505

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-02090iADT270..RHD;ADT270..LHD..(E,N)¥250200811-201505

main42345-05340iZRT272..RHD..HTWC¥270200811-201505

main42345-05350iADT271200811-201505

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-05300iADT270..LHD..F200811-201505

main42345-05320iZRT27#¥400200811-201505

main42345-05330iADT271200811-201505

43457BRACKET, DRIVE SHAFT BEARING

main43457-05050iADT27#..6F200811-201505

main43457-0F040iWWT27#201505

main43457-20130iZRT272..6F¥4,270200811-201505

main43457-20150iADT271..6FC200902-201505

main43457-28060iZRT272..RHD..4FC¥5,200200811-201505

43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)

main90105-10361iADT270..LHD..F;ZRT272..RHD..HTWC¥110200811-201311

*10-1.25PX22-19.5

main90105-W0214iADT27#,ZRT272¥100201311-201505

*10-1.25PX22-19.5

43457DBOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)

main90105-10381iADT27#,ZRT272¥100200811-201311

main90105-W0215iADT27#,ZRT272201311-201505

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-09V40iZRT270,271201111-201505

main43460-09Y80iWWT27#201505

main43460-80121iZRT270,271200811-201111

sub43460-09V40

main43470-80206iZRT272..HTWVM;ZRT272..LHD..HTWC¥51,800200811-201111

sub43470-8Z033¥43,100

main43470-80208iADT270..RHD;ADT270..LHD..(E,N)200811-201111

sub43470-8Z034

main43470-80209iADT271200811-201111

sub43470-8Z035

main43470-8Z033iZRT272¥43,100201111-201505

main43470-8Z034iADT270201111-201505

main43470-8Z035iADT271201111-201505

43474ACLAMP (FOR DRIVE SHAFT DAMPER SETTING)

main42345-02230iZRT270,271200811-201505

main42345-05100iZRT272¥310200811-201505

main42345-05370iADT271;ADT270..RHD;ADT270..LHD..(E,N)200811-201505

43474DDAMPER, FRONT DRIVE SHAFT, RH

main43474-05210iZRT270,271200811-201505

main43474-05220iZRT272¥3,560200811-201505

main43474-05230iADT270200811-201505

main43474-05240iADT271200811-201505

19 parts on this diagram · 9 diagrams in section
