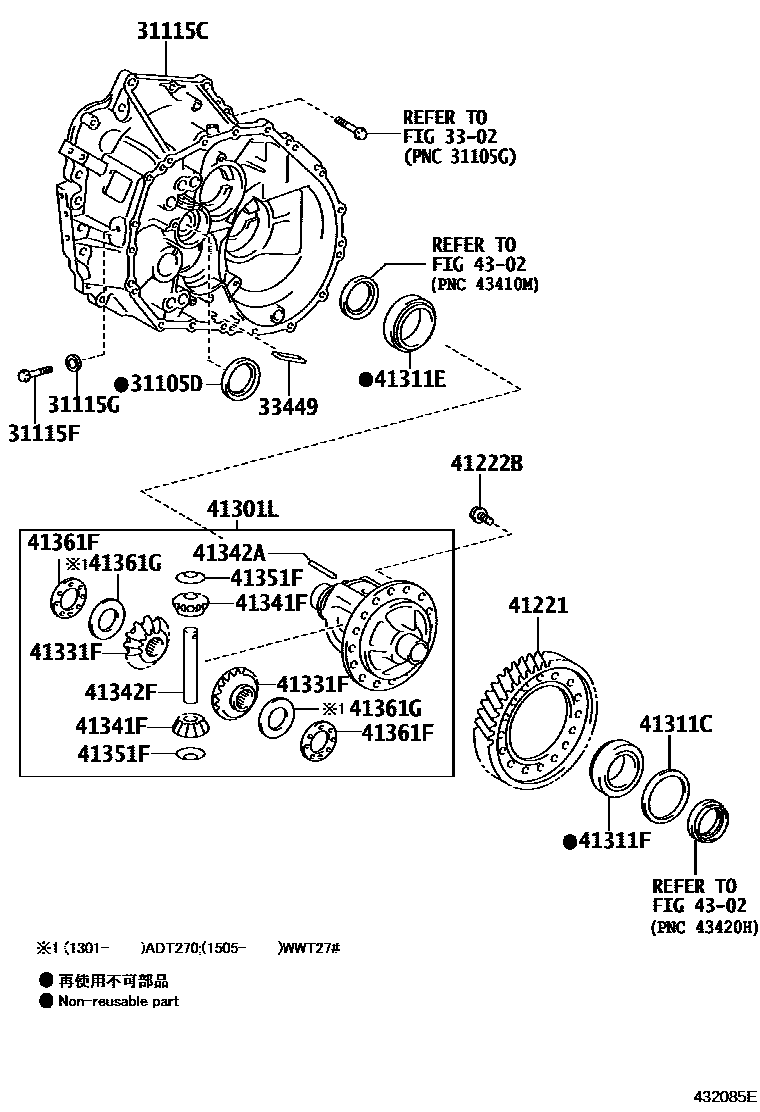

FRONT AXLE HOUSING & DIFFERENTIAL
31105DSEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)
*201
*202
31115FBOLT(FOR FRONT TRANSAXLE CASE)
31115GGASKET(FOR FRONT TRANSAXLE CASE)
3302
33449MAGNET, TRANSMISSION
41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
41301LCASE SUB-ASSY, FRONT DIFFERENTIAL, NO.1
41311CSHIM (FOR FRONT DIFFERENTIAL CASE REAR)
T=2.00,MARK 0
T=2.05,MARK 1
T=2.10,MARK 2
T=2.15,MARK 3
T=2.20,MARK 4
T=2.25,MARK 5
T=2.30,MARK 6
T=2.35,MARK 7
T=2.40,MARK 8
T=2.45,MARK 9
T=2.50,MARK A
T=2.55,MARK B
T=2.60,MARK C
T=2.65,MARK D
T=2.70,MARK E
T=2.75,MARK F
T=2.80,MARK G
T=2.85,MARK H
T=2.05,MARK A
T=2.10,MARK B
T=2.15,MARK C
T=2.20,MARK D
T=2.25,MARK E
T=2.30,MARK F
T=2.35,MARK G
T=2.40,MARK H
T=2.45,MARK J
T=2.50,MARK K
T=2.55,MARK L
T=2.60,MARK M
T=2.65,MARK N
T=2.70,MARK P
T=2.75,MARK Q
T=2.80,MARK R
T=2.85,MARK S
T=2.90,MARK T
T=2.05,MARK A
T=2.10,MARK B
T=2.15,MARK C
T=2.20,MARK D
T=2.25,MARK E
T=2.30,MARK F
T=2.35,MARK G
T=2.40,MARK H
T=2.45,MARK J
T=2.50,MARK K
T=2.55,MARK L
T=2.60,MARK M
T=2.65,MARK N
T=2.70,MARK P
T=2.75,MARK Q
T=2.80,MARK R
T=2.85,MARK S
T=2.90,MARK T
T=1.90,MARK 0,*345
T=1.90,MARK 0,*344
T=1.90,MARK 0
T=1.95,MARK 1
T=1.95,MARK 1,*345
T=1.95,MARK 1,*344
T=2.00,MARK 2,*344
T=2.00,MARK 2
T=2.00,MARK 2,*345
T=2.05,MARK 3
T=2.05,MARK 3,*344
T=2.05,MARK 3,*345
T=2.10,MARK 4
T=2.10,MARK 4,*344
T=2.10,MARK 4,*345
T=2.15,MARK 5,*344
T=2.15,MARK 5
T=2.15,MARK 5,*345
T=2.20,MARK 6
T=2.20,MARK 6,*345
T=2.20,MARK 6,*344
T=2.25,MARK 7
T=2.25,MARK 7,*344
T=2.25,MARK 7,*345
T=2.30,MARK 8
T=2.30,MARK 8,*344
T=2.30,MARK 8,*345
T=2.35,MARK 9
T=2.35,MARK 9,*344
T=2.35,MARK 9,*345
T=2.40,MARK A
T=2.40,MARK A,*344
T=2.40,MARK A,*345
T=2.45,MARK B
T=2.45,MARK B,*345
T=2.45,MARK B,*344
T=2.50,MARK C
T=2.50,MARK C,*344
T=2.50,MARK C,*345
T=2.55,MARK D,*345
T=2.55,MARK D
T=2.55,MARK D,*344
T=2.60,MARK E
T=2.60,MARK E,*345
T=2.60,MARK E,*344
T=2.65,MARK F
T=2.65,MARK F,*344
T=2.65,MARK F,*345
T=2.70,MARK G,*344
T=2.70,MARK G
T=2.70,MARK G,*345
T=2.75,MARK H
T=2.75,MARK H,*345
T=2.75,MARK H,*344
T=2.80,MARK J
T=2.80,MARK J,*344
T=2.80,MARK J,*345
41331FGEAR, FRONT DIFFERENTIAL SIDE
*202
*202
41341FPINION, FRONT DIFFERENTIAL
*202
41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
*202
*201
*344
*345
41351FWASHER, FRONT DIFFERENTIAL PINION THRUST
*344
*345
*201
*202
41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=1.25
T=1.30
T=1.35
T=1.40
T=1.45
T=1.50
T=1.55
T=1.60
T=1.65
T=1.70
T=1.75
T=1.80
T=1.85
T=1.90
T=1.95
T=1.00,MARK 02
T=1.00,MARK 02,*202
T=1.00,MARK 02,*201
T=1.10,MARK 03,*202
T=1.10,MARK 03,*201
T=1.10,MARK 03
T=1.20,MARK 04,*202
T=1.20,MARK 04
T=1.20,MARK 04,*201
T=0.95,MARK 14
T=0.95,MARK 14,*202
T=0.95,MARK 14,*201
T=1.05,MARK 15,*202
T=1.05,MARK 15
T=1.05,MARK 15,*201
T=1.15,MARK 16,*201
T=1.15,MARK 16,*202
T=1.15,MARK 16
T=1.0,MARK 1
T=1.0,MARK 1,*344
T=1.0,MARK 1,*345
T=1.1,MARK 2
T=1.1,MARK 2,*344
T=1.1,MARK 2,*345
T=1.2,MARK 3
T=1.2,MARK 3,*345
T=1.2,MARK 3,*344
T=1.3,MARK 4,*344
T=1.3,MARK 4
T=1.3,MARK 4,*345
T=2.0,MARK 1
T=2.1,MARK 2
T=2.2,MARK 3
T=2.3,MARK 4
T=1.9,MARK 5
T=1.50
T=1.55
T=1.60
T=1.65
T=1.70
T=1.75
T=1.80
T=1.85
T=1.90
T=0.90,MARK 19
T=0.90,MARK 19,*202
41361GWASHER, CONICAL SPRING(FOR CENTER DIFFERENTIAL SIDE GEAR)
*202
4302
21 parts on this diagram · 7 diagrams in section
