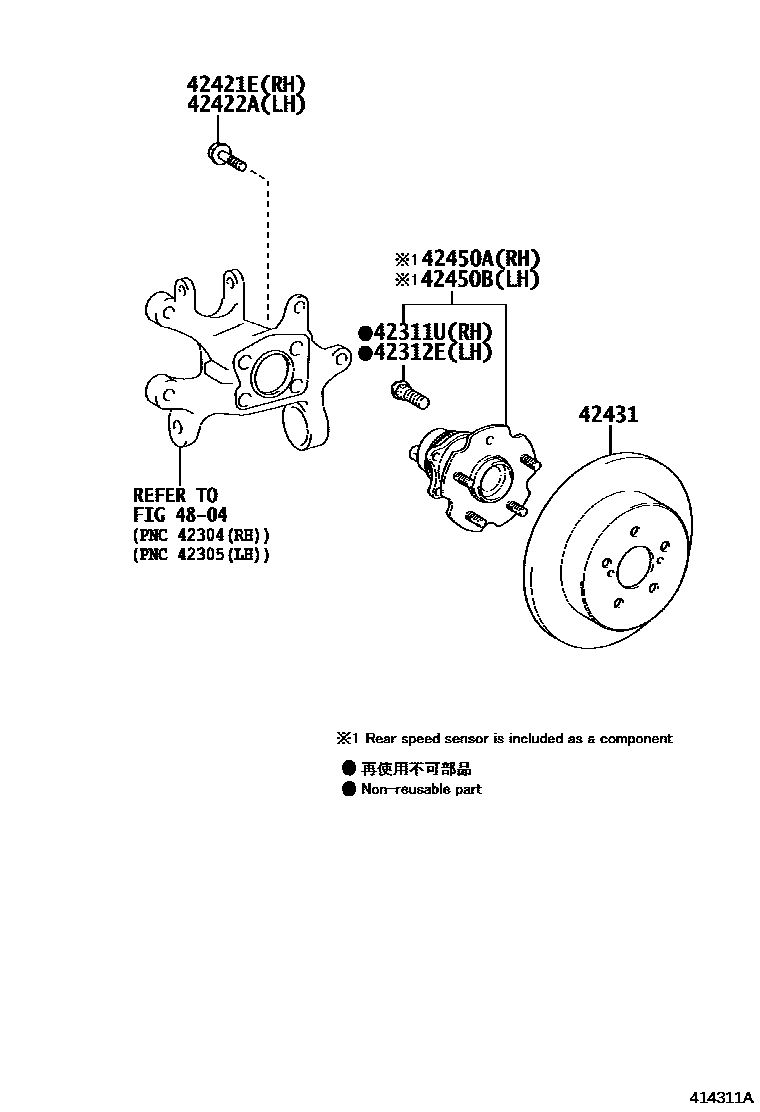

REAR AXLE SHAFT & HUB

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02049iADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)200811-201505

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02049iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-12350iADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)200811-201210

main90105-12350iWWT27#,ZRT27#201505

(J)

main90105-W0164iWWT27#,ZRT27#201505

(L)

main90105-W0164iADT27#,ZRT27#201210-201505

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-12350iWWT27#,ZRT27#201505

(J)

main90105-12350iADT270..LHD..F;ZRT272..RHD..HTWC200811-201210

main90105-W0164iADT27#,ZRT27#201210-201505

main90105-W0164iWWT27#,ZRT27#201505

(L)

42431DISC, REAR

main42431-05070iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42450-05080iADT270..LHD..F;ZRT272..RHD..HTWC200811-201501

sub42450-05081

main42450-05081iADT27#,ZRT27#201502-201505

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42450-05080iADT270..LHD..F;ZRT272..RHD..HTWC200811-201501

sub42450-05081

main42450-05081iADT27#,ZRT27#201502-201505

4804

8 parts on this diagram · 1 diagram in section
