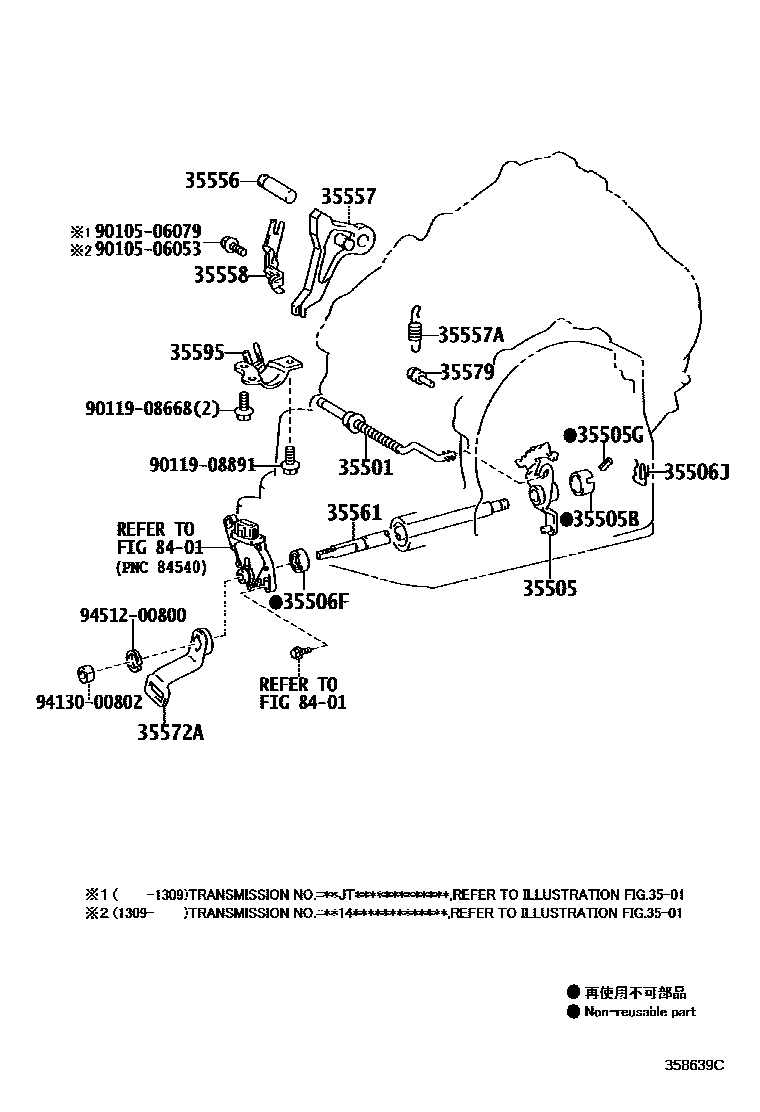

THROTTLE LINK & VALVE LEVER (ATM)
35501ROD SUB-ASSY, PARKING LOCK
35505LEVER SUB-ASSY, MANUAL VALVE
35505BSPACER (FOR MANUAL VALVE LEVER)
35505GPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER)
35506SHAFT SUB-ASSY, MANUAL VALVE LEVER
35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)
35506JSPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT)
35556SHAFT, PARKING LOCK PAWL
*345
*344
35557ASPRING, TORSION (FOR PARKING LOCK PAWL)
35558CLAMP, PAWL SHAFT
*345
*344
35561SHAFT, MANUAL VALVE LEVER
35579PIN, PARKING LOCK PAWL
*344
*345
35595BRACKET, PARKING LOCK PAWL
8401
9010506053
main90105-06053
9010506079
main90105-06079
9011908668
main90119-08668
9011908891
main90119-08891
9413000802
main94130-00802
9451200800
main94512-00800
22 parts on this diagram · 2 diagrams in section
