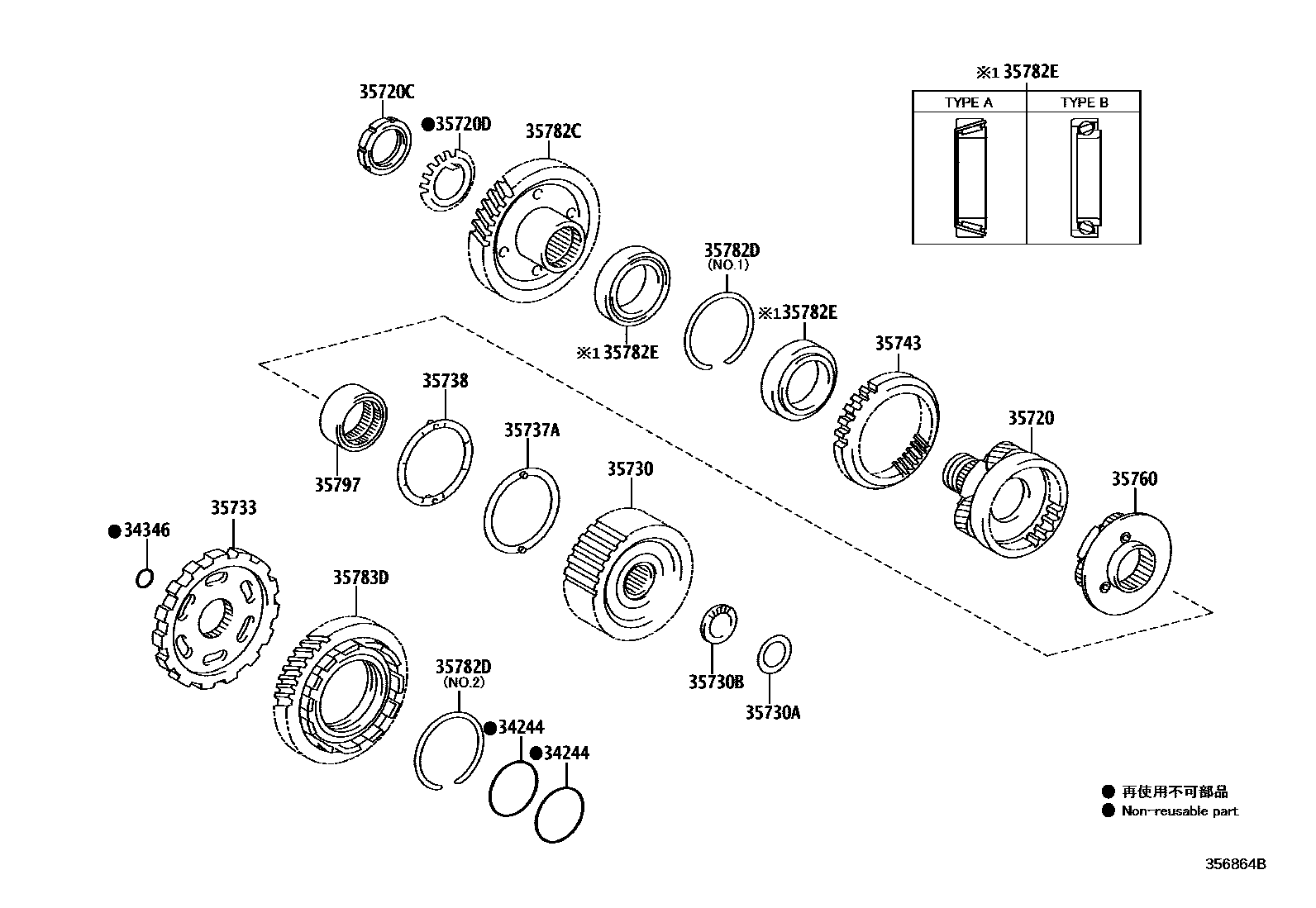

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)
34244RING, UNDERDRIVE CLUTCH DRUM OIL SEAL
34346RING, UNDERDRIVE OUTPUT SHAFT OIL SEAL
35720CNUT (FOR FRONT PLANETARY GEAR)
35720DWASHER (FOR FRONT PLANETARY GEAR)
35730ARACE, THRUST BEARING (FOR REAR PLANETARY SUN GEAR)
35730BBEARING, THRUST NEEDLE ROLLER (FOR REAR PLANERARY SUN GEAR)
35733GEAR, PARKING LOCK
35737AWASHER, PLANETARY CARRIER THRUST, NO.1
*344
*345
35738WASHER, PLANETARY CARRIER THRUST, NO.2
*344
*345
35782DRING, HOLE SNAP(FOR COUNTER DRIVE GEAR)
NO.1
NO.2
35782EBEARING(FOR COUNTER DRIVE GEAR)
TYPE A:REFER ILLUST.
*344 TYPE A:REF ILL.
*345
*344 TYPE B:REF ILL.
TYPE B:REFER ILLUST.
sub90369-72002
35797RACE, 1 WAY CLUTCH INNER
18 parts on this diagram · 2 diagrams in section
