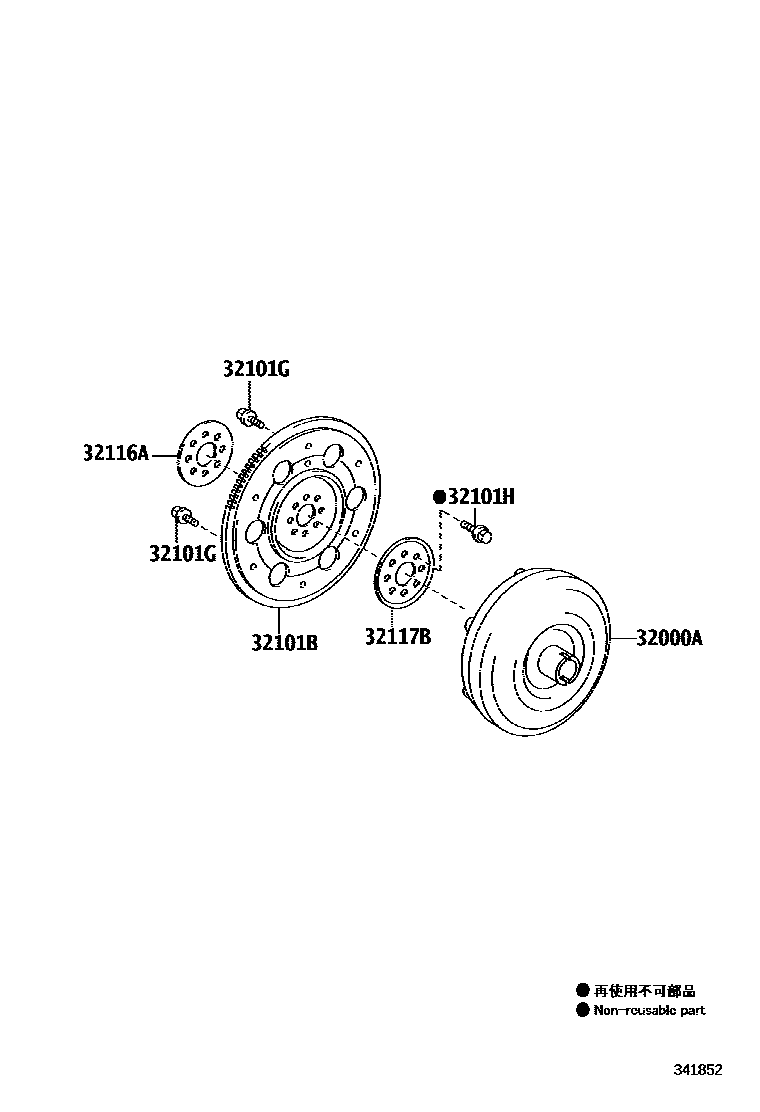

TORQUE CONVERTER, FRONT OIL PUMP(CVT)

0001 1K111,K311,K313 0003 1K114

32000ACONVERTER ASSY, TORQUE

main32000-12400iZRT271..CVT¥72,300200811-201505

main32000-12490iZRT271..CVT¥72,300201505

main32000-28180iZRT272..CVT¥108,000200811-201505

main32000-28190iZRT272..HTWVM¥125,000201505-201601

sub32000-28191¥85,900

main32000-28191iZRT272..HTWVM¥85,900201601

32101BGEAR SUB-ASSY, DRIVE PLATE & RING

main32101-12100iZRT271..CVT¥11,600200811-201505

main32101-28050iZRT272..CVT¥14,100200811-201505

32101GBOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-08113iZRT271..CVT¥80200811-201505

*8-1.25PX12-8.4,BLACK

main90109-09001iZRT272..CVT¥80200811-201505

*9-1.25PX12.4-7.3,BLACK

main90119-08498iZRT271..CVT¥80200811-201505

*8-1.25PX12-8,YELLOW

main90119-09025iZRT272..CVT¥80200811-201505

*9-1.25PX12.4-8.4,SILVER

32101HBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10048iZRT271,272..CVT¥130201505

main90105-10048iZRT271,272..CVT¥130200811-201111

(J)

main90105-10048iZRT271,272..CVT¥130201111-201505

(J),(L)

main90105-A0022iZRT271,272..CVT200811-201003

(L)

sub90105-10048¥130

32116ASPACER, DRIVE PLATE, FRONT

main32116-12030iZRT271,272..CVT¥610200811-201505

32117BSPACER, DRIVE PLATE, REAR

main32117-12040iZRT271,272..CVT¥800200811-201505

6 parts on this diagram · 2 diagrams in section
