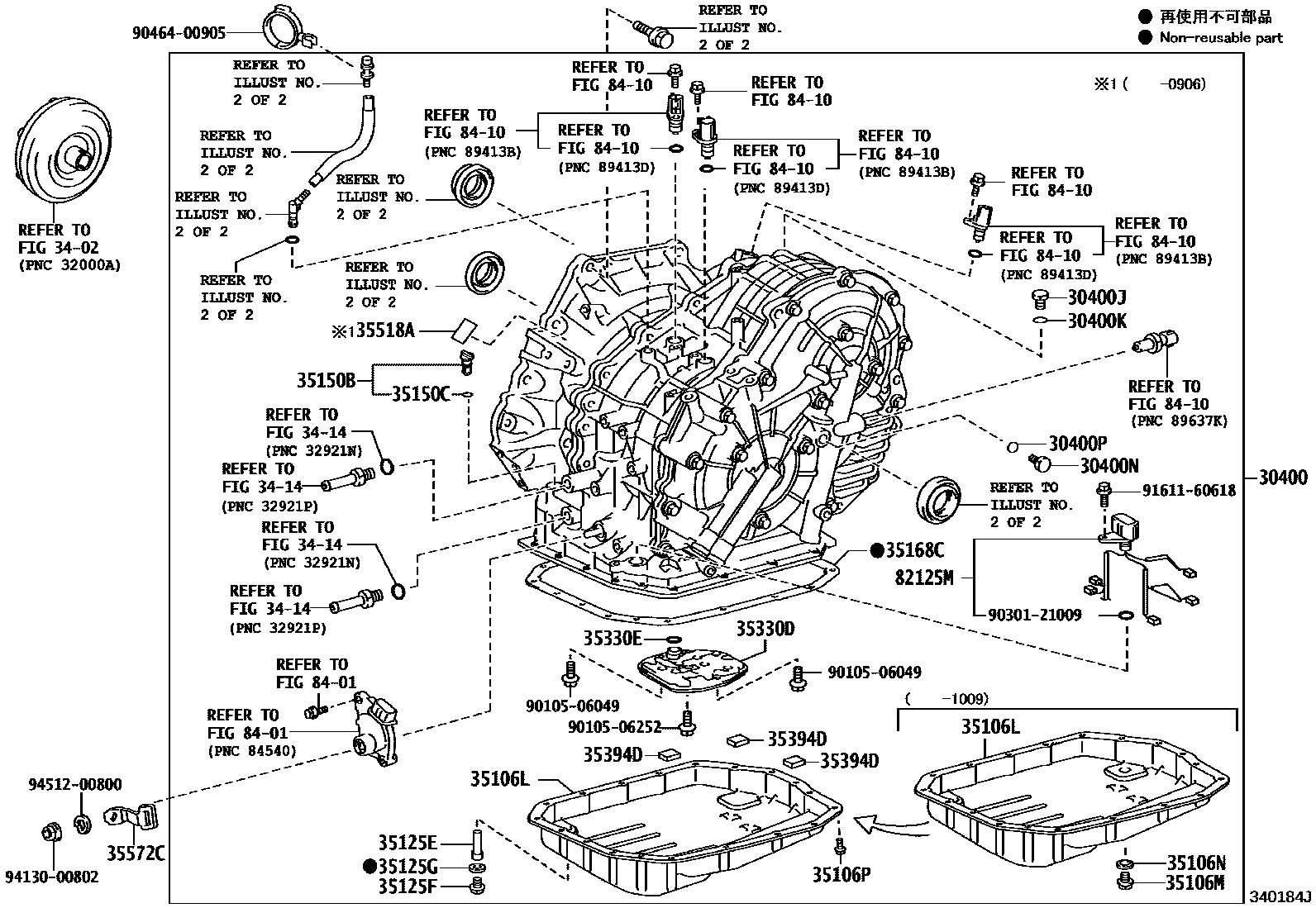

TRANSAXLE ASSY(CVT)
30400TRANSAXLE ASSY, CONTINUOUSLY VARIABLE
K311,TOYOTA:REFER TO ILL.
K111
K114
30400JPLUG, TRANSAXLE HOLE
30400KGASKET, TRANSAXLE HOLE PLUG
30400NPLUG, REFILL(CVT)
30400PGASKET, REFILL PLUG(CVT)
3402
3414
35106LPAN SUB-ASSY, TRANSAXLE OIL(CVT)
TOYOTA:REFER TO ILL.
35106MPLUG SUB-ASSY, DRAIN(CVT)
35106NGASKET, DRAIN PLUG(CVT)
35106PBOLT(FOR TRANSAXLE OIL PAN)
35125ETUBE, OVERFLOW(CVT)
TOYOTA:REFER TO ILL.
35125FPLUG, OVERFLOW(CVT)
35125GGASKET, OVERFLOW PLUG(CVT)
35150BPLUG ASSY, TRANSMISSION CASE
AISIN AW:REF.ILLUST
35150CRING, O (FOR TRANSMISSION CASE PLUG)
35168CGASKET, TRANSAXLE OIL PAN(CVT)
35330DSTRAINER ASSY, OIL
35330ERING, O (FOR OIL STRAINER)
35394DMAGNET, OIL CLEANER(CVT)
35518ALABEL, AUTOMATIC TRANSAXLE INFORMATION, NO.2
35572CLEVER, TRANSMISSION CONTROL SHAFT
TOYOTA:REFER TO ILL.
AISIN AW:REF.ILLUST
82125MWIRE, TRANSMISSION
8401
8410
9010506049
9010506252
9030121009
9046400905
9161160618
9413000802
9451200800
32 parts on this diagram · 10 diagrams in section
