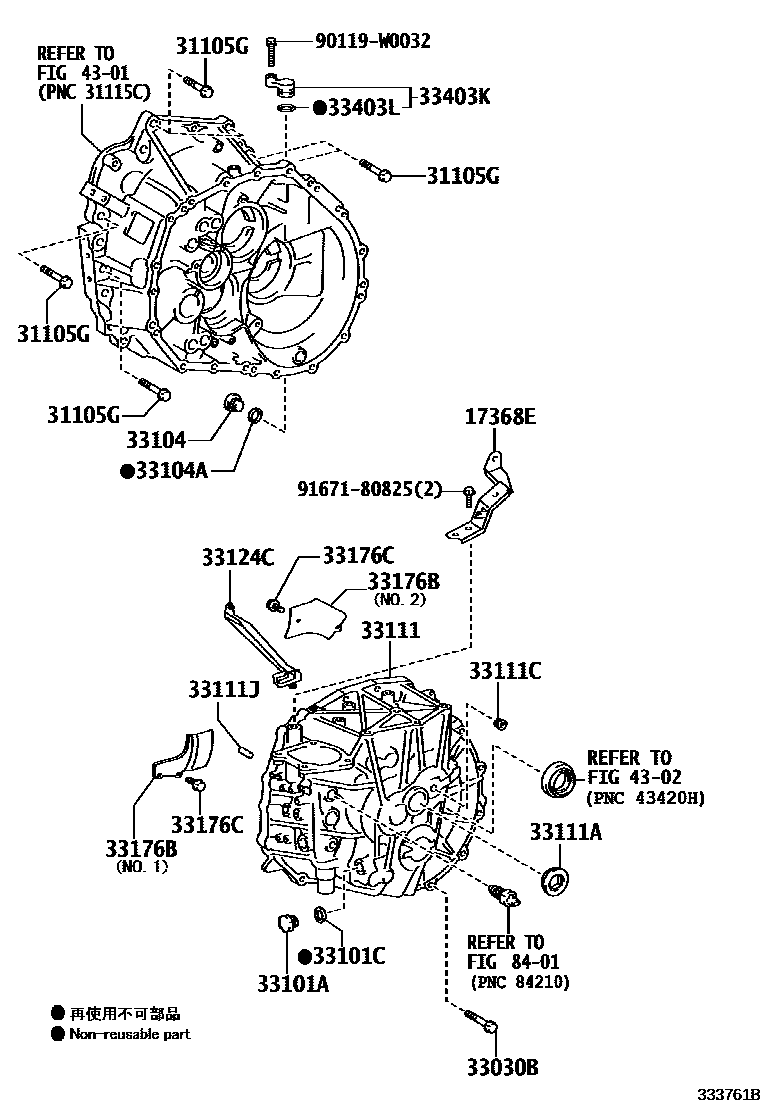

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1EA62,EA63,EA65 0002 1EA65 0003 1EB60 0004 1EC60

17368ESUPPORT, AIR TUBE

main17368-26030i1ADFTV..ADT270..LHD..F200811-201505

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main90105-W0133iWWT27#201505

*8-1.25PX40-22,NO.2

main90105-W0177iZRT270,271..6F201310-201505

*10-1.25PX45-26,(L)

main90105-W0181iADT270..LHD..F200811-201505

*10-1.25PX60-30

main90105-W0182iADT27#..6F¥160200811-201505

*10-1.25PX65-30

main90107-WX001iWWT27#201505

*12-1.75PX100-40,NO.1

main90107-WX002iWWT27#201505

*12-1.75PX80-30,NO.3

main90119-W0162iADT271..6F;ADT270..RHD;ADT270..LHD..(E,N)200811-201505

*12-1.25PX75-30

main90119-W0163iADT27#..6F200811-201505

*12-1.25PX60-30

main91512-61045iZRT272..6F¥140200811-201505

*10-1.25PX45-30

main91552-81045iZRT270,271..6F¥120200811-201111

*10-1.25PX45-26

main91552-81045iZRT270,271..6F¥120201111-201505

*10-1.25PX45-26,(J)

33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)

main90105-08086iADT271..6F;ADT270..RHD;ADT270..LHD..(E,N)¥110200811-201505

*8-1.25PX45-27.5

main90105-W0209iZRT270,271..6F201508

*8-1.25PX40-22,(L)

main91551-10840iZRT272..6F..HTWVM;ZRT272..LHD..6F..HTWC¥80200811-201508

*8-1.25PX40-22

main91551-10840iZRT270,271..6F¥80200811-201306

*8-1.25PX40-22,*201

main91551-10840iZRT270..RHD..WG;ZRT270..LHD..WG..E¥80200905-201505

*8-1.25PX40-22,*202

main91551-10840iZRT270,271..6F¥80201508

*8-1.25PX40-22,(J)

33101CASE SUB-ASSY, MANUAL TRANSMISSION

main33101-20100iZRT272..RHD..6F..HTWC200811-201505

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-14032iZRT270,271..6F¥210200811-201306

*201,NO.1

main90341-14032iZRT270..RHD..WG;ZRT270..LHD..WG..E¥210200905-201505

*202,NO.1

main90341-14032iZRT270,271..6F¥210201505-201807

NO.1

main90341-18033iZRT270,271..6F¥190200811-201306

*201,NO.2

main90341-18033iZRT270..RHD..WG;ZRT270..LHD..WG..E¥190200905-201505

*202,NO.2

main90341-18033iADT270..LHD..F¥190200811-201805

main90341-18033iZRT270,271..6F¥190201505-201807

NO.2

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main12157-10010iZRT270,271..6F¥100201505-201807

NO.2

main12157-10010iZRT270,271..6F¥100201210-201306

*201,NO.2

main12157-10010iZRT270,271..6F¥100201306-201505

*202,NO.2

main90430-14003iZRT271..6F;ZRT270..SED;ZRT270..LHD..WG..N¥160200905-201505

*202,NO.1

main90430-14003iZRT270,271..6F¥160200811-201306

*201,NO.1

main90430-14003iZRT270,271..6F¥160201505-201807

NO.1

main90430-18008iWWT27#¥110200811-201805

main90430-18008iZRT270,271..6F¥110200811-201210

*201,NO.2

main90430-W0001iZRT270..RHD..WG;ZRT270..LHD..WG..E200905-201306

*202,NO.2

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iADT271..6F;ADT270..RHD;ADT270..LHD..(E,N)¥180200811-201505

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iADT271..6F;ADT270..RHD;ADT270..LHD..(E,N)¥110200811-201505

33111CASE, MANUAL TRANSMISSION

main33111-05040iZRT270..RHD..WG;ZRT270..LHD..WG..E200905-201003

*202

sub33111-05041

main33111-05041iZRT270,271..6F201003-201505

*202

main33111-05041iZRT270,271..6F201505-201807

main33111-20220iZRT270,271..6F200811-201003

*201

sub33111-20221¥43,700

main33111-20221iZRT270,271..6F¥43,700201003-201306

*201

sub33111-12291¥36,300

main33111-42060iADT270..LHD..F200811-201805

33111APLUG, MANUAL TRANSMISSION CASE

main90341-18006iZRT272..6F¥180200811-201505

main90341-42002iADT271..6F;ADT270..RHD;ADT270..LHD..(E,N)¥330200811-201505

33111CPLUG(FOR TRANSMISSION CASE)

main90341-12004iWWT27#¥140200811-201505

OD=18

main90341-18033iZRT272..6F¥190200811-201505

OD=24

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-08054iWWT27#¥120200811-201505

L=23,OD=8

main90250-08054iZRT270,271..6F¥120200905-201505

L=23,OD=8,*202

main90250-08054iZRT270,271..6F¥120200811-201306

L=23,OD=8,*201

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-0D050iZRT270,271..6F201103-201505

*202

main33124-0D050iZRT270,271..6F201505

main33124-20040iADT271..6F;ADT270..RHD;ADT270..LHD..(E,N)¥870200811-201505

main33124-20080iZRT270,271..6F¥390200811-201306

*201

main33124-20080iZRT270..RHD..WG;ZRT270..LHD..WG..E¥390200905-201103

*202

33176BSEPARATOR, TRANSMISSION OIL(MTM)

main33176-0D020iZRT270,271..6F201008-201505

*202,NO.1

main33176-0D020iZRT270,271..6F201505

NO.1

main33176-0D030iZRT270,271..6F201008-201505

*202,NO.2

main33176-0D030iZRT270,271..6F201505

NO.2

main33176-20010iADT27#..6F¥280200811-201505

NO.1

main33176-20020iWWT27#200811-201505

NO.2

main33176-20080iZRT270,271..6F¥860200811-201306

*201,NO.1

main33176-20080iZRT271..6F;ZRT270..SED;ZRT270..LHD..WG..N¥860200905-201008

*202,NO.1

main33176-20090iZRT270,271..6F¥1,310200811-201306

*201,NO.2

main33176-20090iZRT271..6F;ZRT270..SED;ZRT270..LHD..WG..N¥1,310200905-201008

*202,NO.2

33176CBOLT(FOR TRANSMISSION OIL SEPARATOR)

main90105-W0035iZRT271..6F;ZRT270..SED;ZRT270..LHD..WG..N¥130200905-201505

(L),*202

main90105-W0035iZRT270,271..6F¥130201505

(L)

main91551-80816iZRT270..RHD..WG;ZRT270..LHD..WG..E¥80200905-201505

(J),*202

main91551-80816iZRT270,271..6F¥80200811-201306

*201

main91551-80816iZRT270,271..6F¥80201505

(J)

main91611-B0616iADT270..LHD..F¥110200811-201505

33403KCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE

main33403-20230iADT27#,ZRT272..6F¥1,180200811-201805

main33403-35230iZRT270,271..6F¥1,180200811-201807

33403LRING, O

main96711-24018iADT27#,ZRT272..6F¥160200811-201805

main96711-24030iZRT270,271..6F¥170200811-201807

4301

4302

8401

90119W0032

main90119-W0032¥100

9167180825

main91671-80825¥80

22 parts on this diagram · 4 diagrams in section
