TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

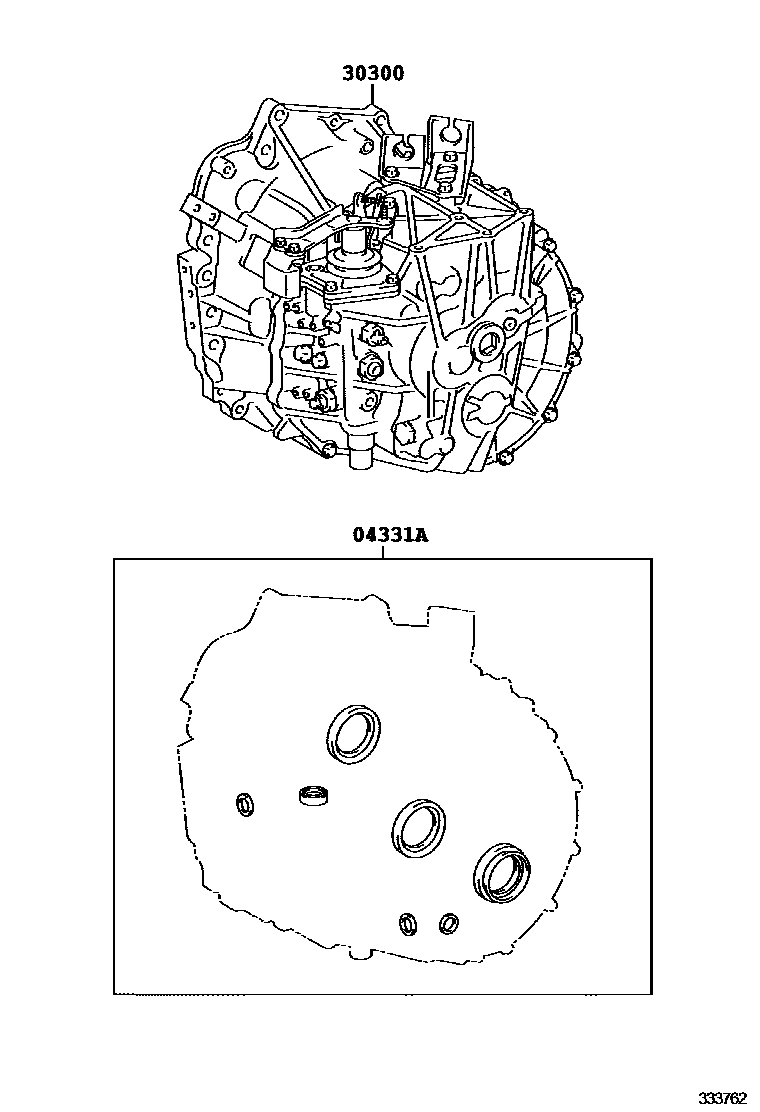

Parts diagram
04331AGASKET KIT, TRANSAXLE OVERHAUL(MTM)
main04331-05210i200905-201306
*200
sub04331-05211
main04331-0F010i201306-201612
sub04331-0F011
main04331-0F011i201612-201807
main04331-12820i201211-201505
main04331-20250i200811-201210
*199
sub04331-20280
main04331-20251i201210-201306
*199
sub04331-20252
main04331-20260i200811-201210
sub04331-12820
main04331-64040i200811-201505
main04331-64080i201505-201805
30300TRANSAXLE ASSY, MANUAL
main30300-05050i201306-201503
EC60
sub30300-05051
main30300-05051i201504-201807
EC60
sub30300-05053
sub35150-44010
main30300-05060i200905-201306
EC60,*200
sub30300-05061
sub35150-44010
main30300-05060i200907-201004
EC60,*199
sub30300-05061
sub35150-44010
main30300-05070i200908-201306
EC60,*200
sub30300-05071
sub35150-44010
main30300-05070i200907-201004
EC60,*199
sub30300-05071
sub35150-44010
main30300-05080i201306-201503
EC60
sub30300-05081
main30300-05081i201504-201807
EC60
sub30300-05083
sub35150-44010
main30300-20A20i201111-201301
EA65
sub30300-20A30
main30300-20A30i201301-201505
EA65
main30300-20A60i200811-200907
EC60,*199
sub30300-05060
main30300-20A70i200811-200907
EC60,*199
sub30300-05070
main30300-20A80i200811-200906
EB60
sub30300-20A81
main30300-20A81i200906-201004
EB60
sub30300-20A82
main30300-20A82i201004-201505
EB60
main30300-20A90i200811-201111
EA65
sub30300-20B20
main30300-20B00i200811-201505
EA63
main30300-20B10i200811-201505
EA62
main30300-20B30i201505-201704
EA65
sub30300-20B31
main30300-20B31i201705-201805
EA65
main30300-20B40i201705-201805
EA65
main30300-64120i201505-201705
EA65

2 parts on this diagram · 5 diagrams in section
