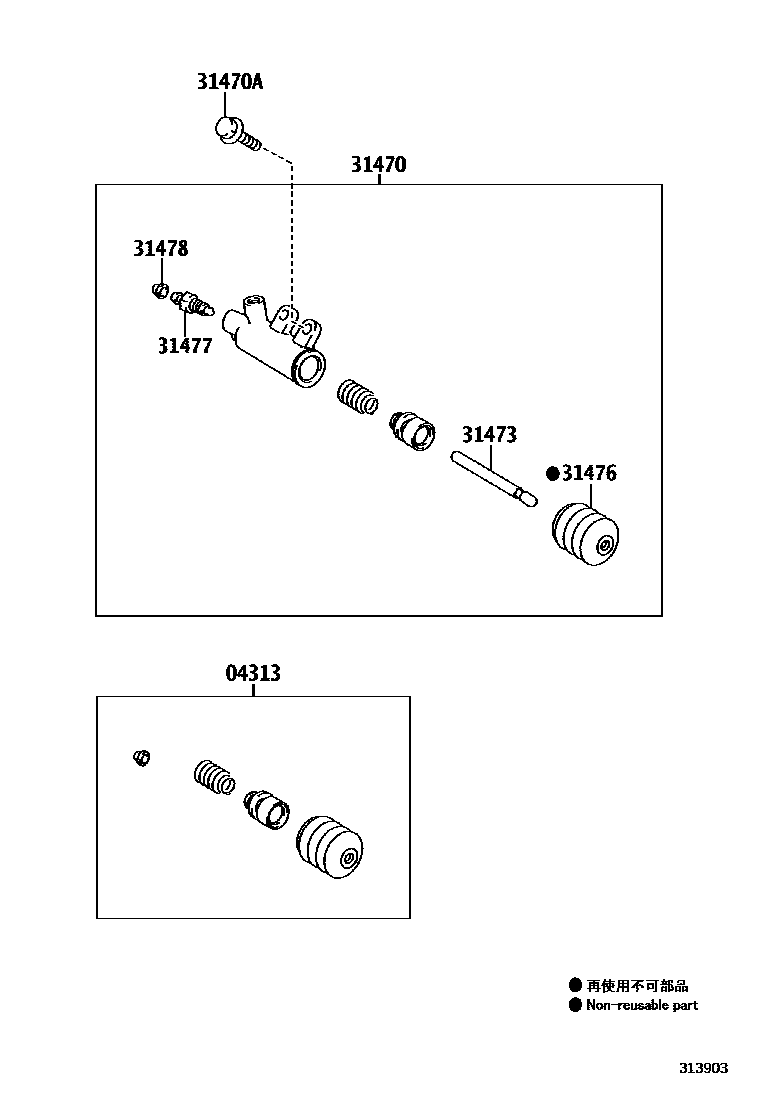

CLUTCH RELEASE CYLINDER

0001 1 0002 1 0003 1 0004 1

04313CYLINDER KIT, CLUTCH RELEASE

main04313-53010iADT27#..6F¥780200811-201505

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-12190iADT271..6F;ADT270..RHD;ADT270..LHD..(E,N)¥7,100200811-201505

main31470-64010iWWT27#201505

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60822iADT271..6F;ADT270..RHD;ADT270..LHD..(E,N)¥170200811-201505

*8-1.25PX22-17.1

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-20031iWWT27#¥470200811-201505

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iADT270..LHD..F¥230200811-201505

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-20010iADT270..LHD..F¥200200811-201505

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iADT270..RHD;ADT271,ZRT272..6F..(DCR,DCRL,HTWVM);ADT270,ZRT272..LHD..6F..(E,N)..(DCR,HTWC)¥160200811-201111

*201

main31478-30010iADT270..LHD..F;ZRT272..RHD..6F..HTWC¥160200811-201505

main31478-30010iZRT270..RHD..WG;ZRT270..LHD..WG..E¥160200905-201111

*202

main31478-30010iZRT270,271..6F¥160201111-201306

*201,*202

7 parts on this diagram · 4 diagrams in section
