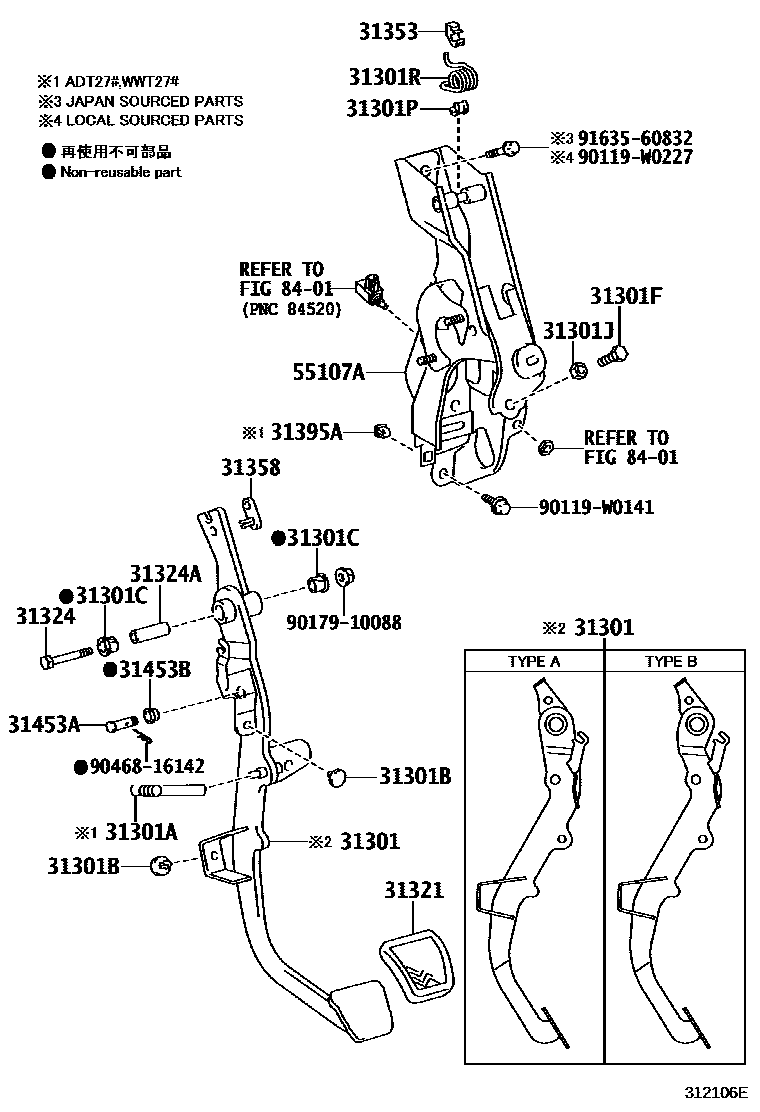

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1 0004 1 0005 1 0007 1 0009 1 0010 1 0011 1 0012 1 0013 1 0015 1 0016 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-20570iZRT270..RHD200811-201210

main31301-20580iZRT271,272..RHD..6F200811-201111

main31301-20580iADT27#..RHD..DCR201111-201310

TYPE A:REFER ILLUST.

main31301-20581iADT27#..RHD..DCR201310-201505

TYPE B:REFER ILLUST.

main31301-20581iWWT27#..RHD201505

main31301-20590iZRT270..LHD200811-201210

main31301-20600iWWT27#..LHD200811-201505

main31301-20610iZRT271,272..RHD..6F201111-201310

TYPE A:REFER ILLUST.

main31301-20610iZRT272..RHD..6F..HTWC201001-201111

main31301-20611iZRT27#..RHD..6F201310-201505

TYPE B:REFER ILLUST.

main31301-20611iZRT270,271..RHD..6F201505

main31301-20620iZRT270..LHD201001-201505

31301ASPRING(FOR CLUTCH PEDAL)

main31394-20010iADT27#..RHD..DCR¥260200811-201505

main31394-25010iADT27#..LHD..6F200811-201505

main90507-14047iZRT270¥100200811-201210

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iADT270..LHD..F;ZRT272..RHD..6F..HTWC¥110200811-201505

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iADT270..LHD..F;ZRT272..RHD..6F..HTWC¥120200811-201505

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iADT270..LHD..F;ZRT272..RHD..6F..HTWC¥110200811-201505

31301JNUT(FOR CLUTCH PEDAL STOPPER)

main94130-61000iADT270..LHD..F;ZRT272..RHD..6F..HTWC¥70200811-201505

31301PBUSH(FOR CLUTCH PEDAL TURNOVER)

main90389-06055iADT270..RHD;ADT271,ZRT271,272..6F..(DCR,DCRL,HTWVM);ADT270,ZRT272..LHD..6F..(E,N)..(DCR,HTWC)¥100200811-201505

31301RSPRING, COMPRESSION(FOR TURNOVER SPRING SEAT)

main31394-12050iADT27#..RHD..6F200811-201505

main31394-12060iZRT272..RHD..6F..HTWC¥480200811-201505

main31394-12070iADT27#..LHD..6F¥760200811-201505

main31394-12080iZRT270..LHD¥440200811-201505

31321PAD, CLUTCH PEDAL

main31321-42010iADT27#,ZRT27#..6F¥230200811-201505

31324SHAFT, CLUTCH PEDAL

main90101-10039iZRT272..RHD..6F..HTWC¥160200811-201505

main90109-10167iADT27#,ZRT27#..LHD..6F..(E,G,N,V)¥190200811-201505

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10003iZRT272..RHD..6F..HTWC¥370200811-201505

31353HOLDER, CLUTCH PEDAL SPRING

main31353-26010iADT270..LHD..F;ZRT272..RHD..6F..HTWC¥210200811-201505

31358CAP, OVER CENTER SPRING

main31358-42010iZRT272..RHD..6F..HTWC¥430200811-201505

31395AHOOK, PEDAL SPRING, NO.1

main31395-33020iADT270..LHD..F¥90200811-201505

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90249-08256iADT270..LHD..F;ZRT272..RHD..6F..HTWC¥130200811-201505

L=36.5

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08033iADT27#,ZRT27#..6F¥110200811-201505

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-20460iZRT270..RHD200811-201210

main55107-20470iADT27#,ZRT271,272..RHD..6F201111-201310

PNC 31301=TYPE A

main55107-20470iZRT272..RHD..6F..HTWC200811-201111

main55107-20471iADT27#,ZRT27#..RHD..6F201310-201505

PNC 31301=TYPE B

main55107-20471iWWT27#,ZRT270,271..RHD..6F201505

main55107-20480iZRT270..LHD200811-201210

main55107-20490iADT27#,ZRT271,272..LHD..6F..(E,G,N,V)200811-201505

8401

90119W0141

main90119-W0141

90119W0227

main90119-W0227

9017910088

main90179-10088¥100

9046816142

main90468-16142¥70

9163560832

main91635-60832¥80

23 parts on this diagram · 13 diagrams in section
