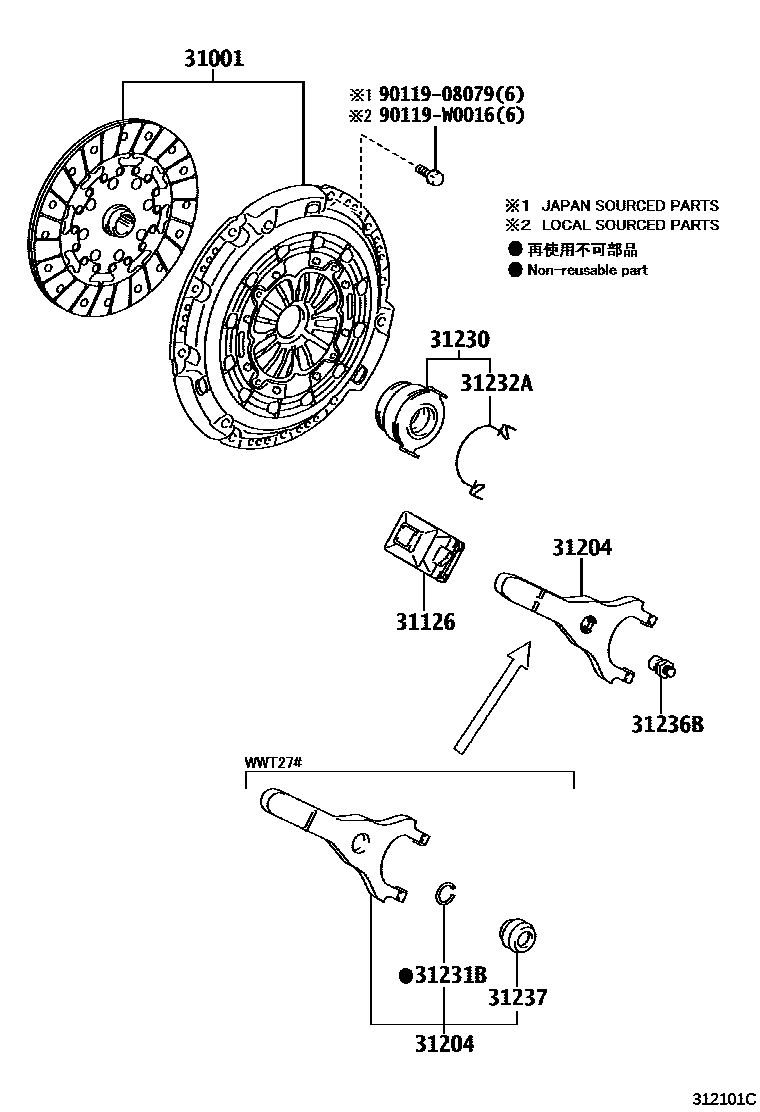

CLUTCH & RELEASE FORK

0001 1 0002 1

31001CLUTCH SET, COVER & DISC

main31001-05090iADT27#..DCR200811-201102

sub31001-0R010

main31001-05100iADT271..6F..DCRL200811-201102

sub31001-05150

main31001-05140iADT27#..DCR201103-201505

main31001-05150iADT271..6F..DCRL201103-201505

31126BOOT, CLUTCH RELEASE FORK

main31126-20080iADT270..LHD..F200811-201505

main31126-64020iWWT27#201505

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-20140iADT270..LHD..F200811-201505

main31204-64030iWWT27#201505

31230BEARING ASSY, CLUTCH RELEASE

main31230-20200iADT271..6F;ADT270..RHD;ADT270..LHD..(E,N)200811-201505

31231BRING, SNAP(FOR CLUTCH RELEASE HUB)

main90521-22003iWWT27#201505

31232ACLIP, RELEASE BEARING HUB

main31232-20031iADT270..LHD..F200811-201505

31236BSUPPORT, RELEASE FORK

main31236-20080iADT27#..6F200811-201309

main31236-64010iWWT27#201505

main31236-64020iADT27#..6F201309-201408

sub31236-64021

main31236-64021iADT27#..6F201409-201505

31237BOOT, CLUTCH RELEASE FORK SUPPORT

main31237-60010iWWT27#201505

9011908079

main90119-08079

90119W0016

main90119-W0016

10 parts on this diagram · 2 diagrams in section
