FUEL INJECTION SYSTEM

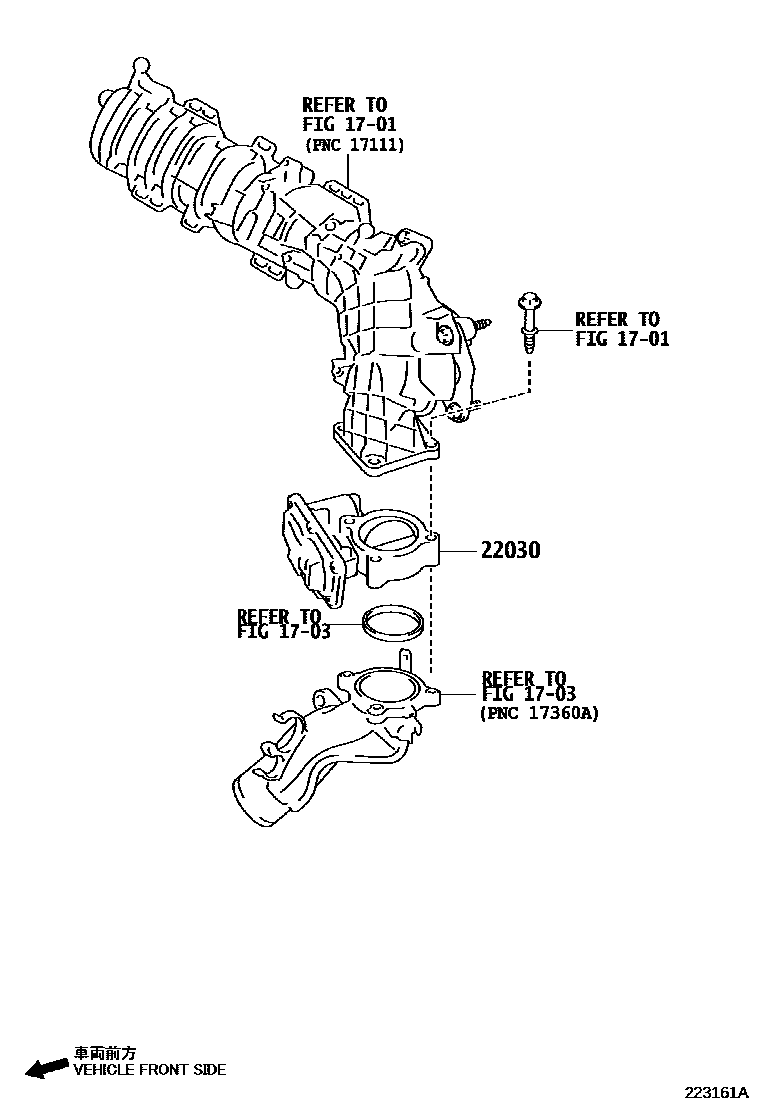

Parts diagram

1701

1703

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-WA010i201505-201506

main22030-WA011i201506-201804

3 parts on this diagram · 4 diagrams in section
