INJECTION PUMP ASSEMBLY

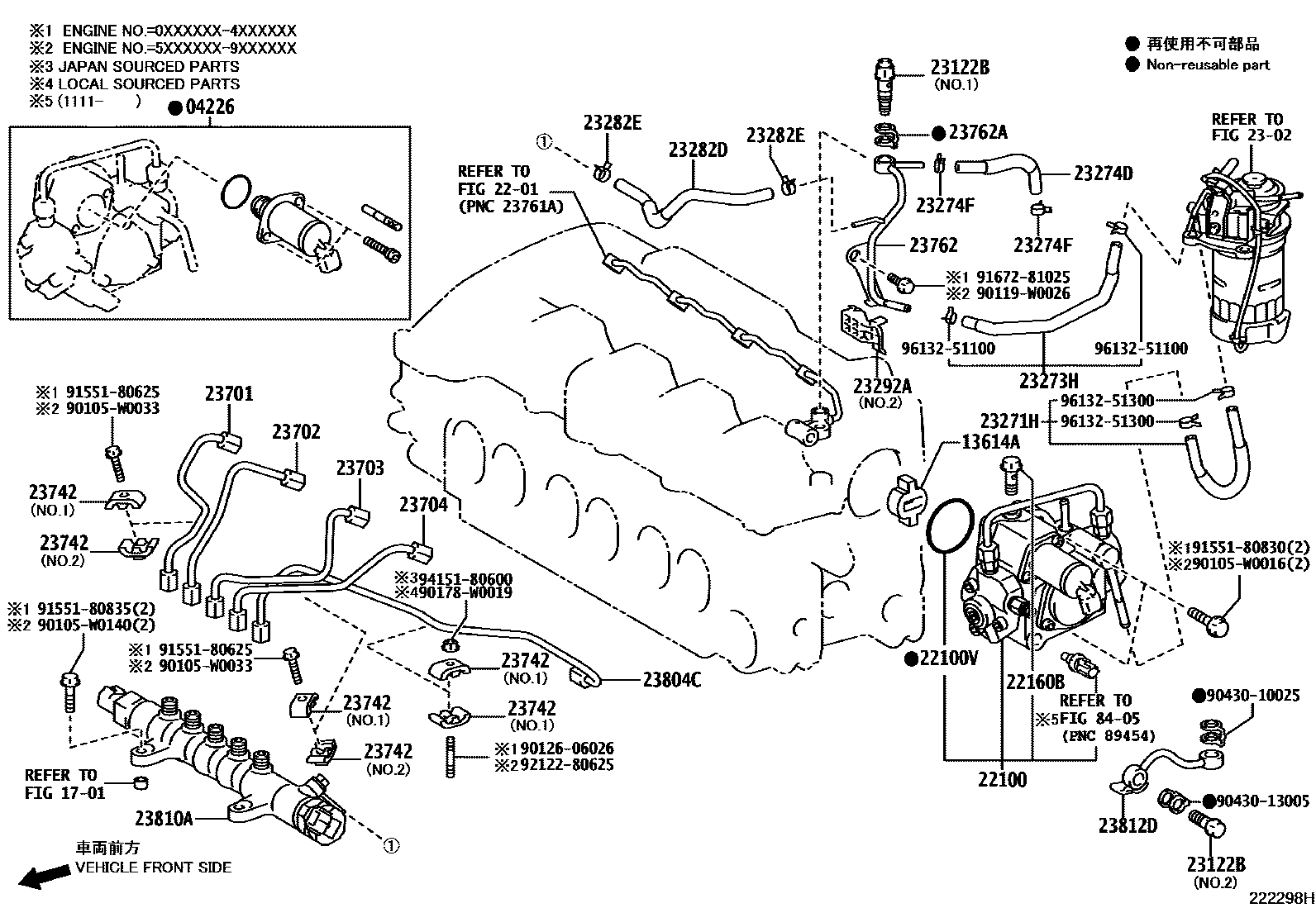

Parts diagram
04226VALVE KIT, SUCTION CONTROL
main04226-26010i200811-201104
*145,*119
13614ACOUPLING, SUPPLY PUMP DRIVE, NO.1
main13614-26010i200811-201104
*145,*119
1701
2201
22100PUMP ASSY, INJECTION OR SUPPLY
main22100-0R040i200811-201104
*145,*119
sub22100-0R041
main22100-WA020i201505-201510
main22100-WA030i201510-201804
22100VRING, O(FOR INJECTION PUMP)
main22193-0R020i200811-201104
*145,*119
main90069-38033i201505
22160BSCREW
main22569-0R020i200811-201111
*145,*119
23122BVALVE, CHECK
main23769-26030i201111
NO.1
main2376A-26010i200811-201012
*145,NO.2,*119,NO.2
main2376A-26020i201012-201110
*145,NO.2,*119,NO.2
main2376A-26030i201110-201111
*145,NO.2,*119,NO.2
23271HHOSE, FUEL, NO.1
main23271-0R020i200902-201111
main23271-0R030i201111
main23271-26190i200811-200902
(J)
23273HHOSE, FUEL, NO.2
main23273-0R010i200811-200902
(L)
main23273-26070i200811-200902
(J)
main23273-53020i201505
23274DHOSE, FUEL, NO.3
main23274-26080i200811-201104
*145,*119
23274FCLIP(FOR FUEL HOSE NO.3)
main96135-51100×2i200811-201111
*145,*119
23282DHOSE, FUEL, NO.4
main23282-26070i200811-201104
*145,*119
23282ECLIP(FOR FUEL HOSE NO.4)
main90467-11076×2i200811
*145,*119
23292APROTECTOR, FUEL HOSE
main23292-0R010i200811
NO.2
main23292-26030i200811-201111
*145,NO.1,*119,NO.1
23701PIPE SUB-ASSY, INJECTION, NO.1
main23701-0R030i200811-201111
(L),*119,*145
main23701-26050i200811
(J),*119
main23701-WA020×2i201505-201804
23702PIPE SUB-ASSY, INJECTION, NO.2
main23702-0R030i200811
(L),*119,*145
main23702-26050i200811-201104
(J),*119
main23702-WA020×2i201505-201804
23703PIPE SUB-ASSY, INJECTION, NO.3
main23703-0R030i200811-201104
(L),*119,*145
main23703-26050i200811-201104
(J),*119
main23804-WA020i201505-201804
23704PIPE SUB-ASSY, INJECTION, NO.4
main23704-0R030i200811-201104
(L),*119,*145
main23704-26060i200811-201111
(J),*119
23742CLAMP, INJECTION PIPE, NO.2
main23742-27010×4i200811-201104
*145,NO.1,*119,NO.1
main23742-58020×2i201111
NO.2
23762PIPE, NOZZLE LEAKAGE, NO.2
main23762-26021i200811-201104
*145,*119
23762AGASKET, NOZZLE LEAKAGE PIPE NO.2
main90904-30012i200811-201104
*145,*119
23804CPIPE SUB-ASSY, FUEL INLET
main23804-0R020i200811-201111
(L),*119,*145
main23804-26050i200811-201104
(J),*119
23810ARAIL ASSY, COMMON
main23810-0R040i200811-201104
*145,*119
main23810-0R041i201204
main23810-WA020i201505-201804
23812DPIPE, FUEL, NO.2
main23812-26020i200811-201104
*145,*119
main23812-WA010i201505-201510
main23812-WA020i201510-201804
8405
90105W0016
main90105-W0016
90105W0033
main90105-W0033
90105W0140
main90105-W0140
90119W0026
main90119-W0026
9012606026
main90126-06026
90178W0019
main90178-W0019
9043010025
main90430-10025
9043013005
main90430-13005
9155180625
main91551-80625
9155180830
main91551-80830
9155180835
main91551-80835
9167281025
main91672-81025
9212280625
main92122-80625
9415180600
main94151-80600
9613251100
main96132-51100
9613251300
main96132-51300

42 parts on this diagram · 4 diagrams in section
