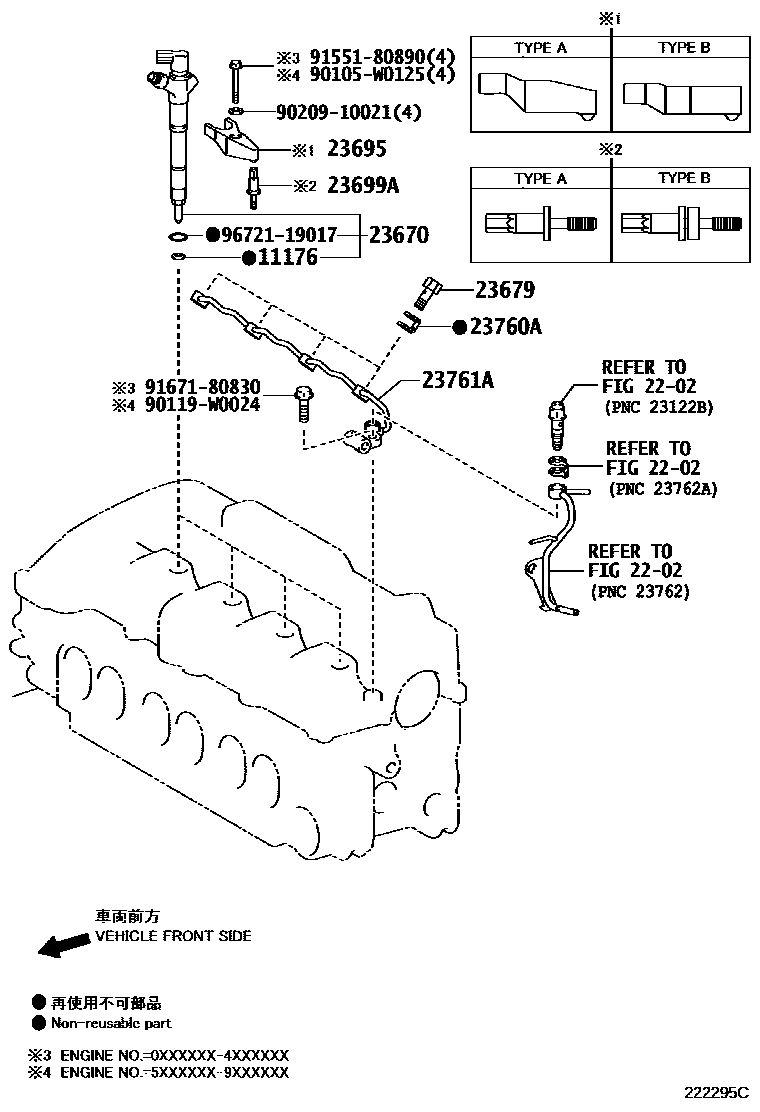

INJECTION NOZZLE
11176SEAT, INJECTION NOZZLE
*145,*119
2202
23679SCREW, INJECTOR FOLLOW
*145,*119
23695CLAMP, NOZZLE HOLDER, NO.1
*119T/P A:REF.ILLUST,*145
*119T/P B:REF.ILLUST
23699ASEAT, NOZZLE HOLDER CLAMP
*145
*119T/P A:REF.ILLUST
*119T/P B:REF.ILLUST
23760PIPE ASSY, NOZZLE LEAKAGE
23760AGASKET
*145,*119
23761APIPE, NOZZLE LEAKAGE, NO.1
(L),*119,(L),*145
(L)
(J)
(J),*119,(J),*145
90105W0125
main90105-W0125
90119W0024
main90119-W0024
9020910021
main90209-10021
9155180890
main91551-80890
9167180830
main91671-80830
9672119017
main96721-19017
15 parts on this diagram · 4 diagrams in section
