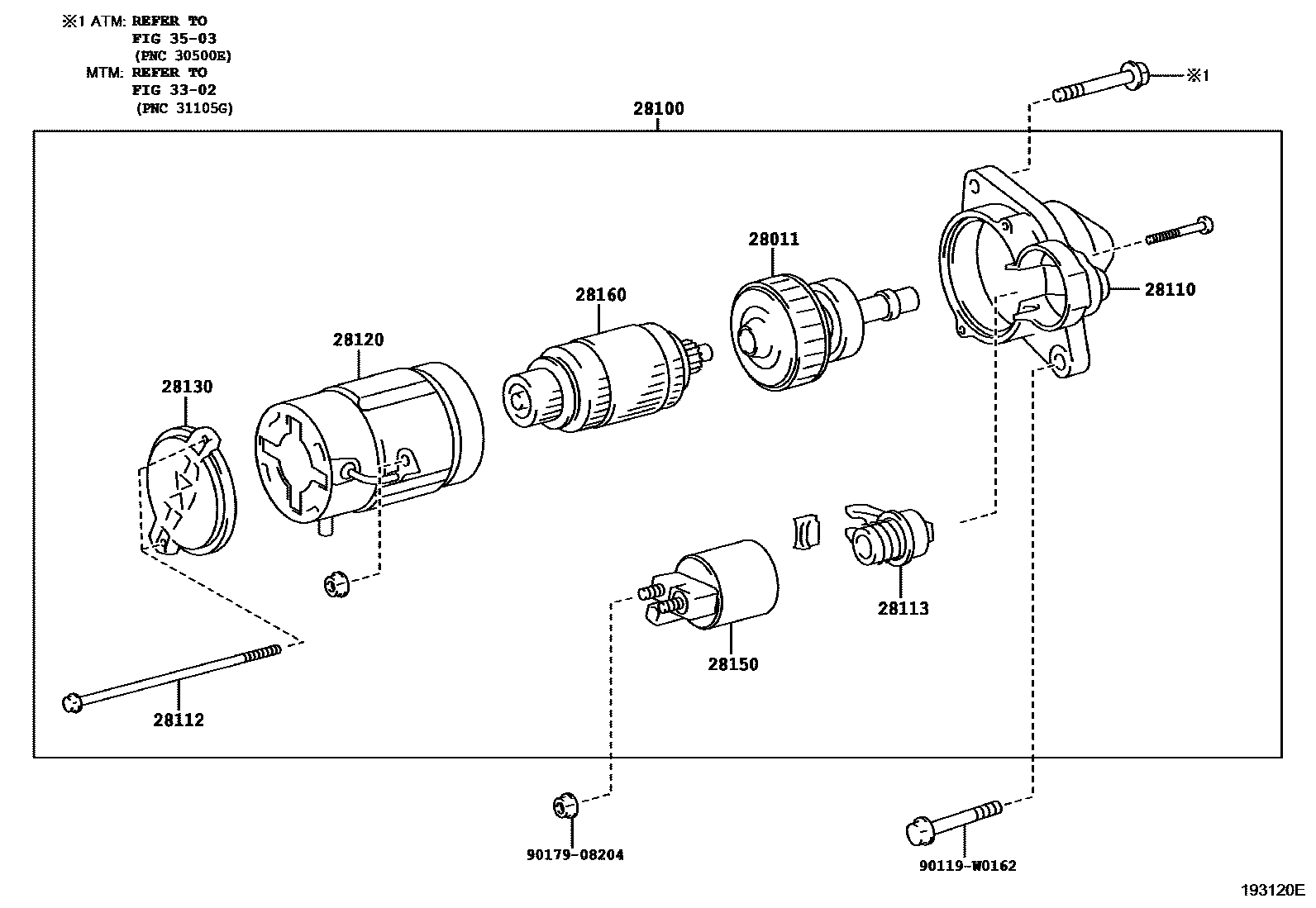

STARTER

0001 112V 2.0KW(VALEO) 0002 112V 2.0KW(DENSO) 0003 112V 1.1KW 0004 112V 2.0KW

28011CLUTCH SUB-ASSY, STARTER

main28011-0D130i1ZRFAE,2ZRFAE,3ZR#..ZRT27#200811-201505

main28011-0R020i1ADFTV,2AD#..ADT27#..E,F,G,V200904-201010

WIRELESS DOOR LOCK-WITH(SMART ENTRY),VALEO

sub28100-0R021

main28011-0R020i1ADFTV,2AD#..ADT27#200811-200904

VALEO

sub28100-0R021

main28011-0R021i1ADFTV,2AD#..ADT27#201010-201505

VALEO

main28011-0X040i1WW,2WW..WWT27#201505

28100STARTER ASSY

main28100-0R010i1ADFTV,2AD#..ADT27#200811-201409

12V 2.0KW,DENSO

sub28100-0R030

main28100-0R020i1ADFTV,2AD#..ADT27#200811-200904

12V 2.0KW,VALEO

sub28100-0R021

main28100-0R020i1ADFTV,2AD#..ADT27#..E,F,G,V200904-201009

12V 2.0KW,WIRELESS DOOR LOCK-WITH(SMART ENTRY),VALEO

sub28100-0R021

main28100-0R021i1ADFTV,2AD#..ADT27#201010-201505

12V 2.0KW,VALEO

main28100-0T030i1ZRFAE,2ZRFAE,3ZR#..ZRT27#200811-201505

12V 1.1KW

main28100-0X040i1WW,2WW..WWT27#201505

12V 2.0KW

28110HOUSING ASSY, STARTER DRIVE

main28110-0R010i1ADFTV,2AD#..ADT27#200811-201410

DENSO

main28110-0R020i1ADFTV,2AD#..ADT27#200811-200904

VALEO

sub28100-0R021

main28110-0R020i1ADFTV,2AD#..ADT27#..E,F,G,V200904-201010

WIRELESS DOOR LOCK-WITH(SMART ENTRY),VALEO

sub28100-0R021

main28110-0R021i1ADFTV,2AD#..ADT27#201010-201505

VALEO

main28110-0T030i1ZRFAE,2ZRFAE,3ZR#..ZRT27#200811-201505

main28110-0X040i1WW,2WW..WWT27#201505

28112BOLT, HOUSING SET

main28112-0R020i1ADFTV,2AD#..ADT27#200811-201505

VALEO

sub28100-0R021

main28112-0R020i1ADFTV,2AD#..ADT27#..E,F,G,V200904-201010

WIRELESS DOOR LOCK-WITH(SMART ENTRY),VALEO

sub28100-0R021

28113LEVER, STARTER PINION DRIVE

main28113-0D130i1ZRFAE,2ZRFAE,3ZR#..ZRT27#200811-201505

main28113-0R020i1ADFTV,2AD#..ADT27#200811-201505

VALEO

sub28100-0R021

main28113-0R020i1ADFTV,2AD#..ADT27#..E,F,G,V200904-201010

WIRELESS DOOR LOCK-WITH(SMART ENTRY),VALEO

sub28100-0R021

main28113-0X040i1WW,2WW..WWT27#201505

28120YOKE ASSY, STARTER

main28120-0D130i1ZRFAE,2ZRFAE,3ZR#..ZRT27#200811-201505

main28120-0R020i1ADFTV,2AD#..ADT27#..E,F,G,V200904-201010

WIRELESS DOOR LOCK-WITH(SMART ENTRY),VALEO

sub28100-0R021

main28120-0R020i1ADFTV,2AD#..ADT27#200811-200904

VALEO

sub28100-0R021

main28120-0R021i1ADFTV,2AD#..ADT27#201010-201505

VALEO

main28120-0X040i1WW,2WW..WWT27#201505

main28120-38020i1ADFTV,2AD#..ADT27#200811-201410

DENSO

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-0D130i1ZRFAE,2ZRFAE,3ZR#..ZRT27#200811-201505

main28130-0R010i1ADFTV,2AD#..ADT27#200811-201410

DENSO

main28130-0R020i1ADFTV,2AD#..ADT27#200811-201505

VALEO

sub28100-0R021

main28130-0R020i1ADFTV,2AD#..ADT27#..E,F,G,V200904-201010

WIRELESS DOOR LOCK-WITH(SMART ENTRY),VALEO

sub28100-0R021

main28130-0X040i1WW,2WW..WWT27#201505

28150SWITCH ASSY, MAGNET STARTER

main28150-0D130i1ZRFAE,2ZRFAE,3ZR#..ZRT27#200811-201505

main28150-0R020i1ADFTV,2AD#..ADT27#200811-201505

VALEO

sub28100-0R021

main28150-0R020i1ADFTV,2AD#..ADT27#..E,F,G,V200904-201010

WIRELESS DOOR LOCK-WITH(SMART ENTRY),VALEO

sub28100-0R021

main28150-0X040i1WW,2WW..WWT27#201505

main28150-37020i1ADFTV,2AD#..ADT27#200811-201410

DENSO

28160ARMATURE ASSY, STARTER

main28160-0D130i1ZRFAE,2ZRFAE,3ZR#..ZRT27#200811-201505

main28160-0G020i1ADFTV,2AD#..ADT27#200811-201410

DENSO

main28160-0R020i1ADFTV,2AD#..ADT27#200811-201505

VALEO

sub28100-0R021

main28160-0R020i1ADFTV,2AD#..ADT27#..E,F,G,V200904-201010

WIRELESS DOOR LOCK-WITH(SMART ENTRY),VALEO

sub28100-0R021

main28160-0X040i1WW,2WW..WWT27#201505

3302

3503

90119W0162

main90119-W0162

9017908204

main90179-08204

13 parts on this diagram · 4 diagrams in section
