ALTERNATOR

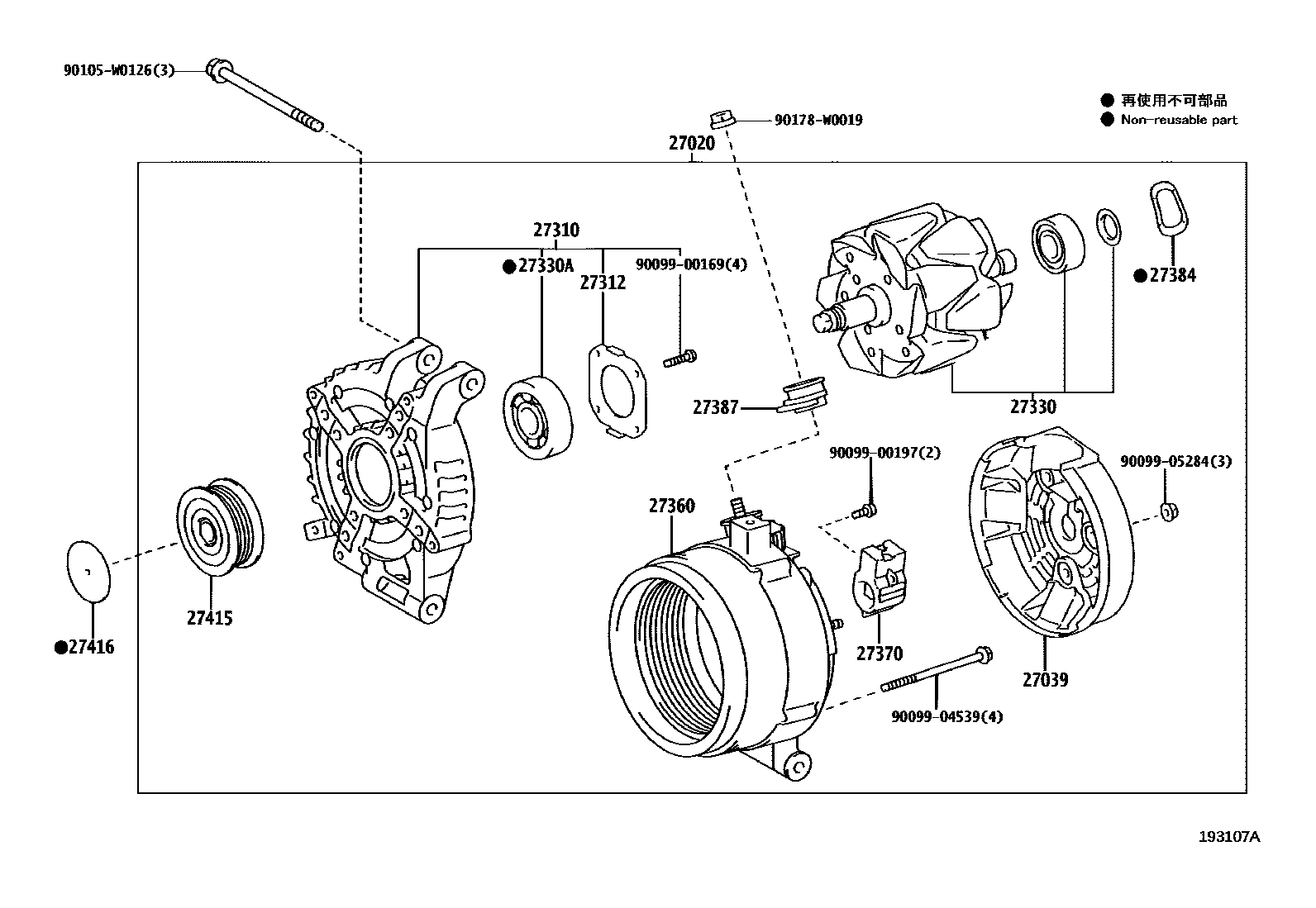

Parts diagram

27020ALTERNATOR ASSY

main27060-0G011i200811-201111

12V 100A

main27060-0G021i200811-201111

12V 130A,COLD AREA SPEC&BATTERY-84AH,825A,MAINTENANCE FREE TYPE

main27060-0G021i200902-201111

12V 130A

main27060-0R040i200811-201111

12V 100A,BATTERY-84AH,825A,LIQUID REFILLABLE TYPE

main27060-0R070i201111-201301

12V 100A

main27060-0R071i201302-201505

12V 100A

main27060-0R080i201111-201505

12V 130A

main27060-0R080i201111-201505

12V 130A,COLD AREA SPEC

main27060-0T050i200811-200904

12V 100A

main27060-0T051i200905-201111

12V 100A

main27060-0T180i201111-201212

12V 100A

main27060-0T181i201301-201505

12V 100A

main27060-0T360i201505

12V 100A

main27060-YV040i201505

12V 150A

27039COVER, ALTERNATOR REAR END

main27039-0N060i201111-201302

main27039-0Y150i201301-201505

main27039-26170i200811-200909

main27039-27090i201111-201505

COLD AREA SPEC

main27039-27090i200811-201111

main27039-31390i200909-201111

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-0R020i201111-201302

main27310-0R040i201302-201505

main27310-0T050i201111-201301

main27310-0T180i201301-201505

main27310-27090i201111-201505

COLD AREA SPEC

main27310-27090i200811-201111

main27310-37030i200811-201111

27312PLATE, RETAINER

main27312-0T300i201505

main27312-72100i200811-201505

27330ROTOR ASSY, ALTERNATOR

main27330-0N060i201111-201302

main27330-0Y150i201301-201505

main27330-30070i200811-201111

main27330-33090i201111-201505

COLD AREA SPEC

main27330-33090i200811-201111

COLD AREA SPEC&BATTERY-84AH,825A,MAINTENANCE FREE TYPE

main27330-33090i200902-201111

27330ABEARING(FOR ALTERNATOR ROTOR)

main90068-10033i201505

main90099-10223i200811-201505

27360COIL ASSY, ALTERNATOR

main27360-0R020i201111-201302

main27360-0R021i201302-201505

main27360-0R030i201111-201505

COLD AREA SPEC

main27360-0T050i201111-201301

main27360-0T051i201301-201505

main27360-0T340i201505

main27360-26170i200909-201111

COLD AREA SPEC&BATTERY-84AH,825A,MAINTENANCE FREE TYPE

main27360-26210i200811-201111

BATTERY-84AH,825A,LIQUID REFILLABLE TYPE

main27360-27090i200811-201111

main27360-27100i200811-200909

COLD AREA SPEC&BATTERY-84AH,825A,MAINTENANCE FREE TYPE

main27360-27100i200902-200909

main27360-37060i200811-201111

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-0R040i201302-201505

main27370-0Y150i201301-201505

main27370-31220i200811-201301

main27370-58460i200811-201505

main27370-58460i201302-201505

COLD AREA SPEC

27384WASHER

main27384-38130i201111-201302

main27384-50030i201111-201505

COLD AREA SPEC

main27384-50030i200811-201111

27387INSULATOR, TERMINAL

main27387-0Y150i201301-201505

main27387-20130i200811-201505

main27387-20130i201302-201505

COLD AREA SPEC

27415PULLEY, ALTERNATOR W/CLUTCH

main27415-0T010i200811-200906

main27415-0T011i200906-201307

main27415-0T060i201308-201505

main27415-26010i200811-201505

27416CAP, ALTERNATOR PULLEY

main27416-0W020i200811-201307

main27416-0W050i201308-201505

main27416-27010i200811-201505

9009900169

main90099-00169

9009900197

main90099-00197

9009904539

main90099-04539

9009905284

main90099-05284

90105W0126

main90105-W0126

90178W0019

main90178-W0019

18 parts on this diagram · 9 diagrams in section
